K03
AiSoleij
Product Description

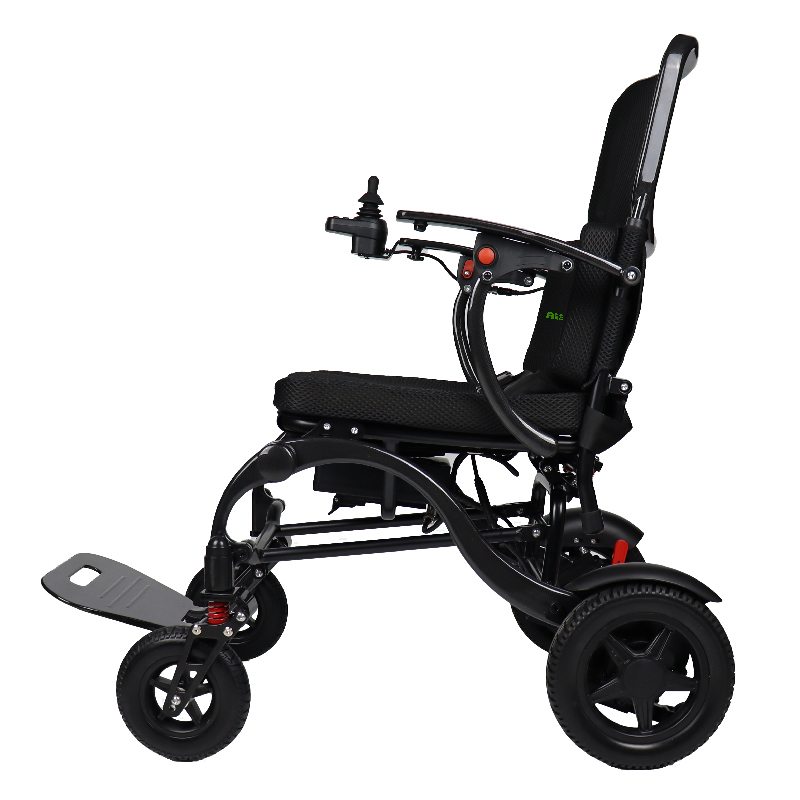

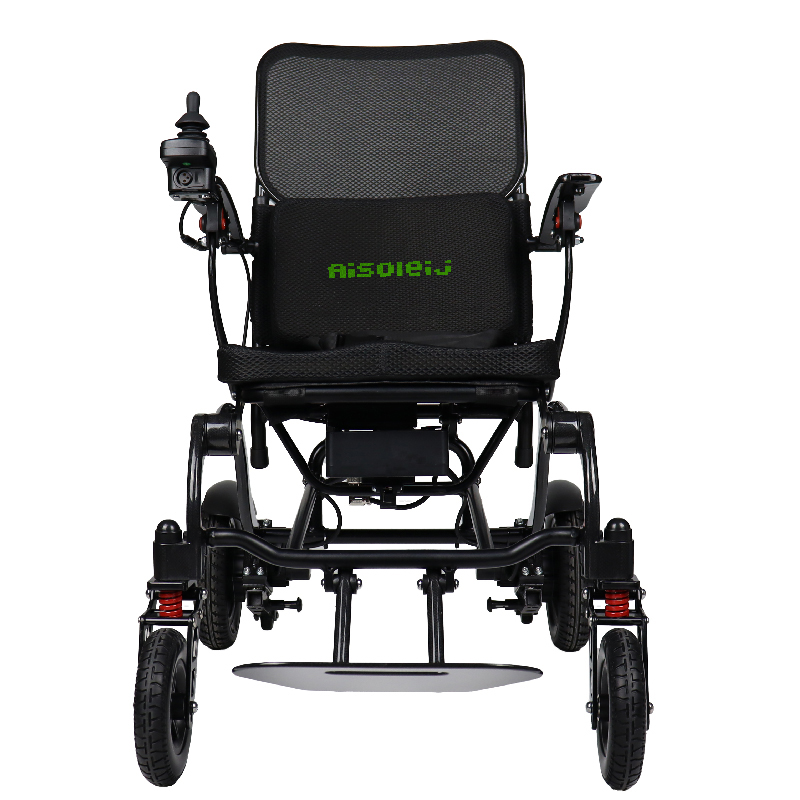

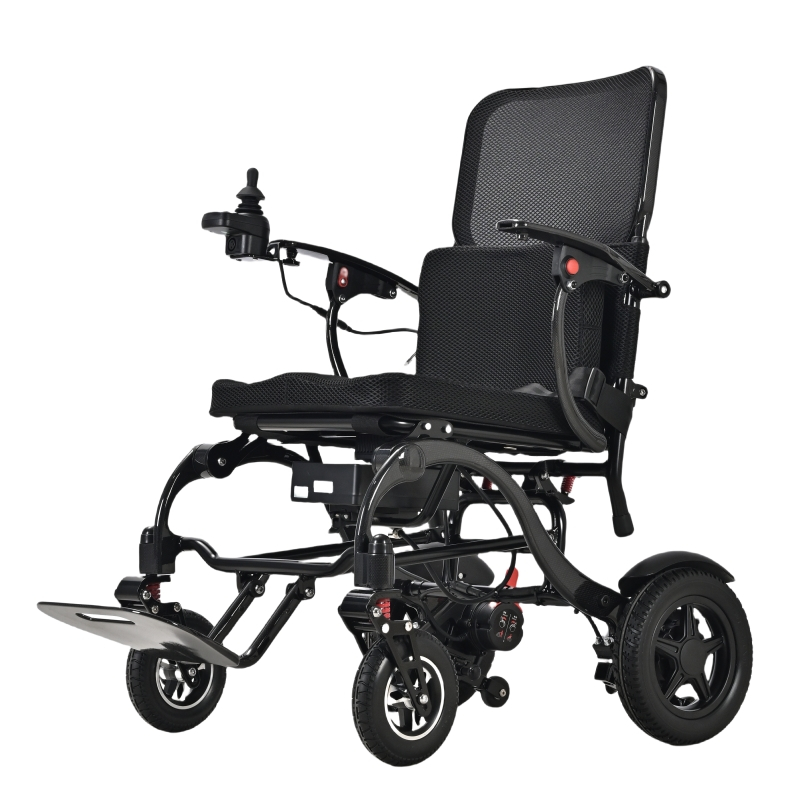

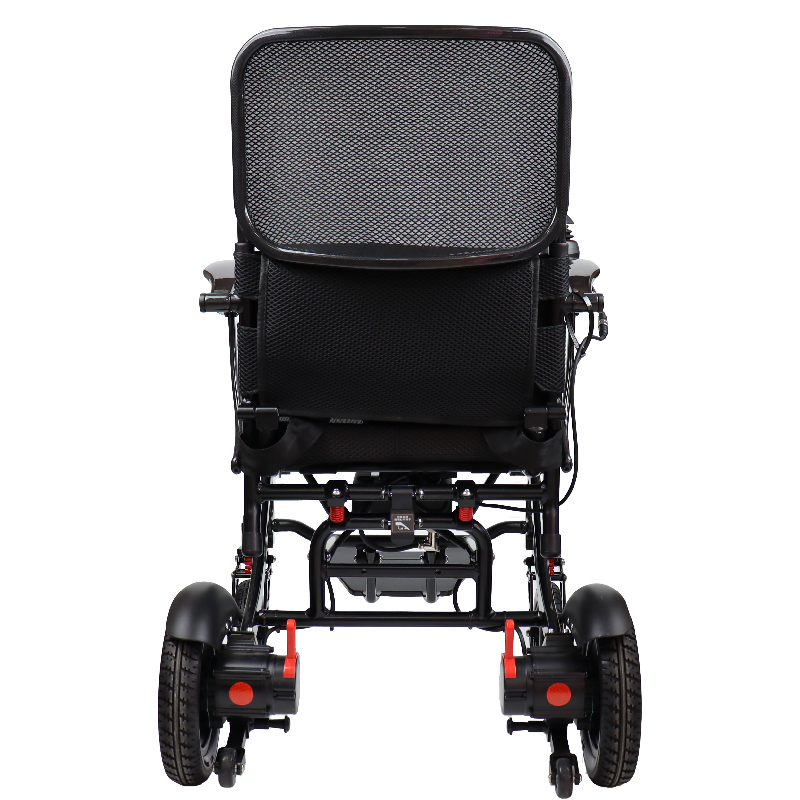

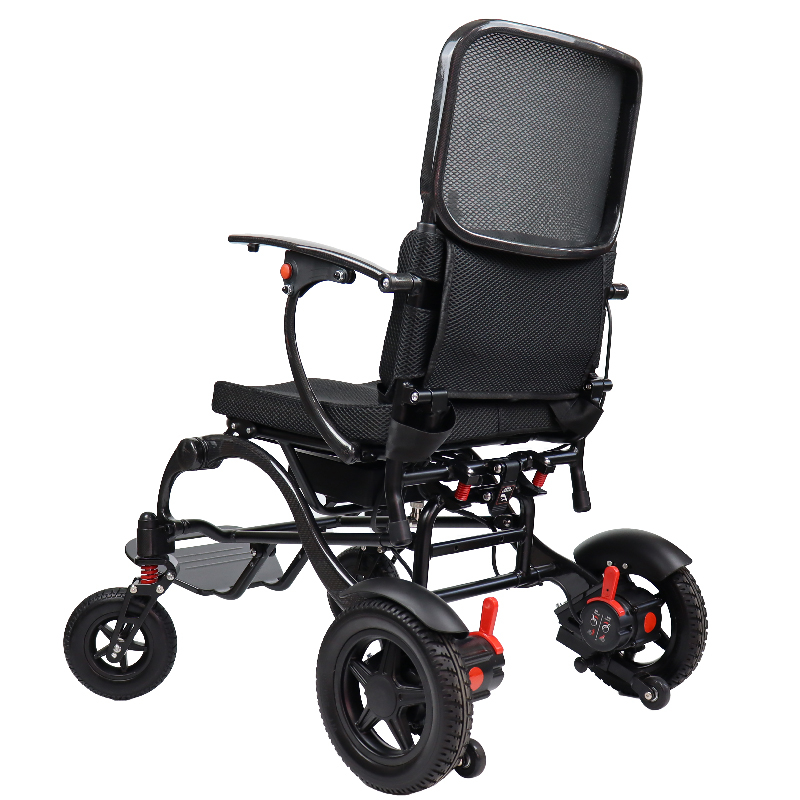

The K03 is a wheelchair which pushed by an electric motor, it is helpful to persons who are unable to walk or have trouble traveling in a manual wheelchair. The 70% carbon fiber frame is very light and suitable for disabled person.
Features

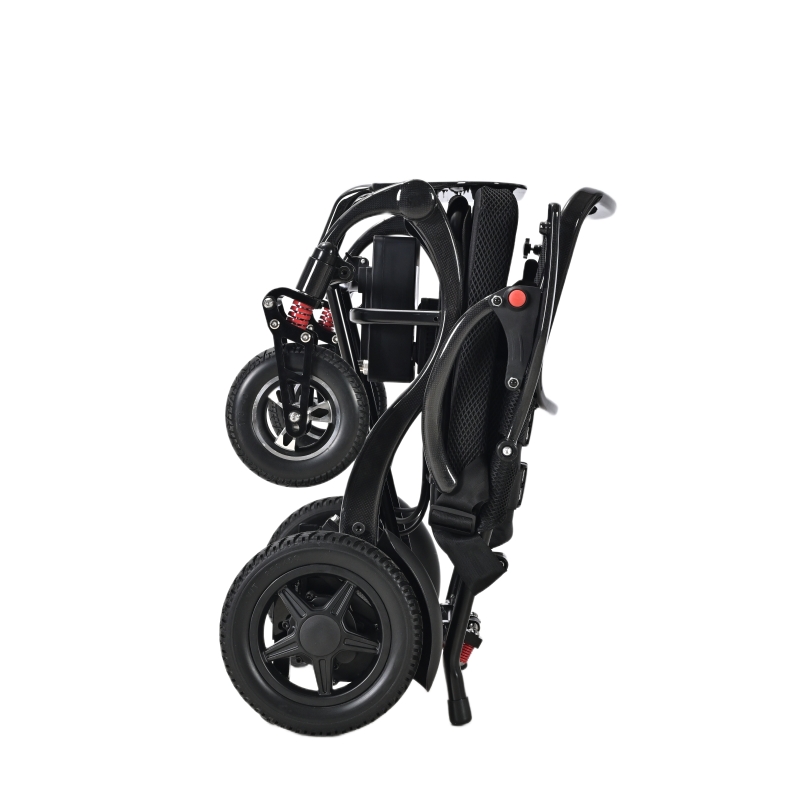

1. One-touch fold and unfold design . Detachable battery design under seat.
2. Lightweight & Portable. The carbon fiber frame is much lighter than common wheelchairs. Compact size for easy to load in trunk.
3. Accurate and sensitive controller. Intelligent operation system and suitable for people in any age.

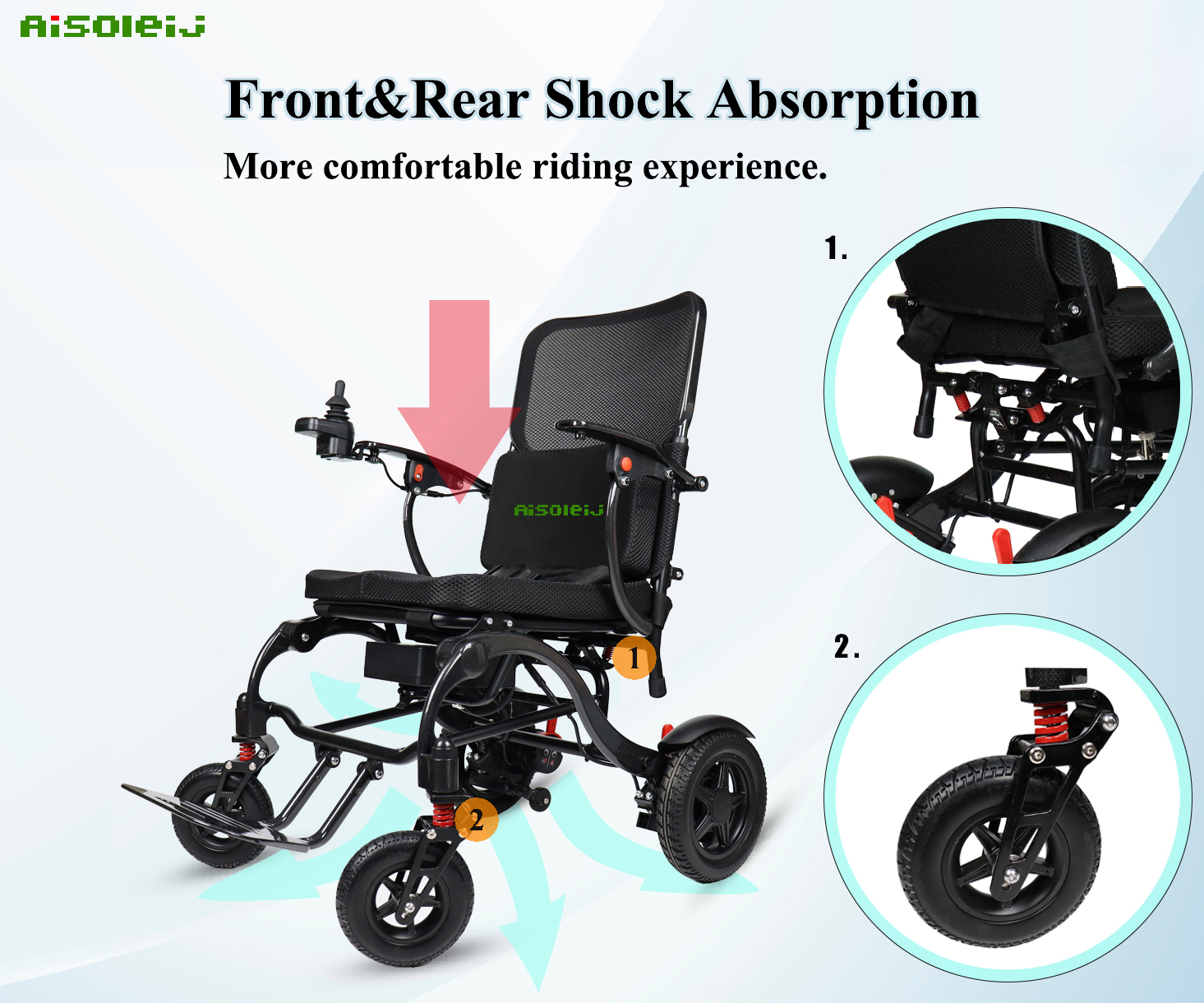

4. PU solid tire. Unique thread design overcoming complex terrain. With shock absorption function, increase speed and comfort.
5. Powerful and reliable motor. Low friction, minimum noise and longer service life.
6. Updated electromagnetic braking system. Immediate braking as soon as joystick released.
Product Description
The K03 is a wheelchair which pushed by an electric motor, it is helpful to persons who are unable to walk or have trouble traveling in a manual wheelchair. The 70% carbon fiber frame is very light and suitable for disabled person.
Features
1. One-touch fold and unfold design . Detachable battery design under seat.
2. Lightweight & Portable. The carbon fiber frame is much lighter than common wheelchairs. Compact size for easy to load in trunk.
3. Accurate and sensitive controller. Intelligent operation system and suitable for people in any age.
4. PU solid tire. Unique thread design overcoming complex terrain. With shock absorption function, increase speed and comfort.
5. Powerful and reliable motor. Low friction, minimum noise and longer service life.
6. Updated electromagnetic braking system. Immediate braking as soon as joystick released.
Model No. | K03 |
Frame material | 70% carbon frame+30% Aluminium frame |

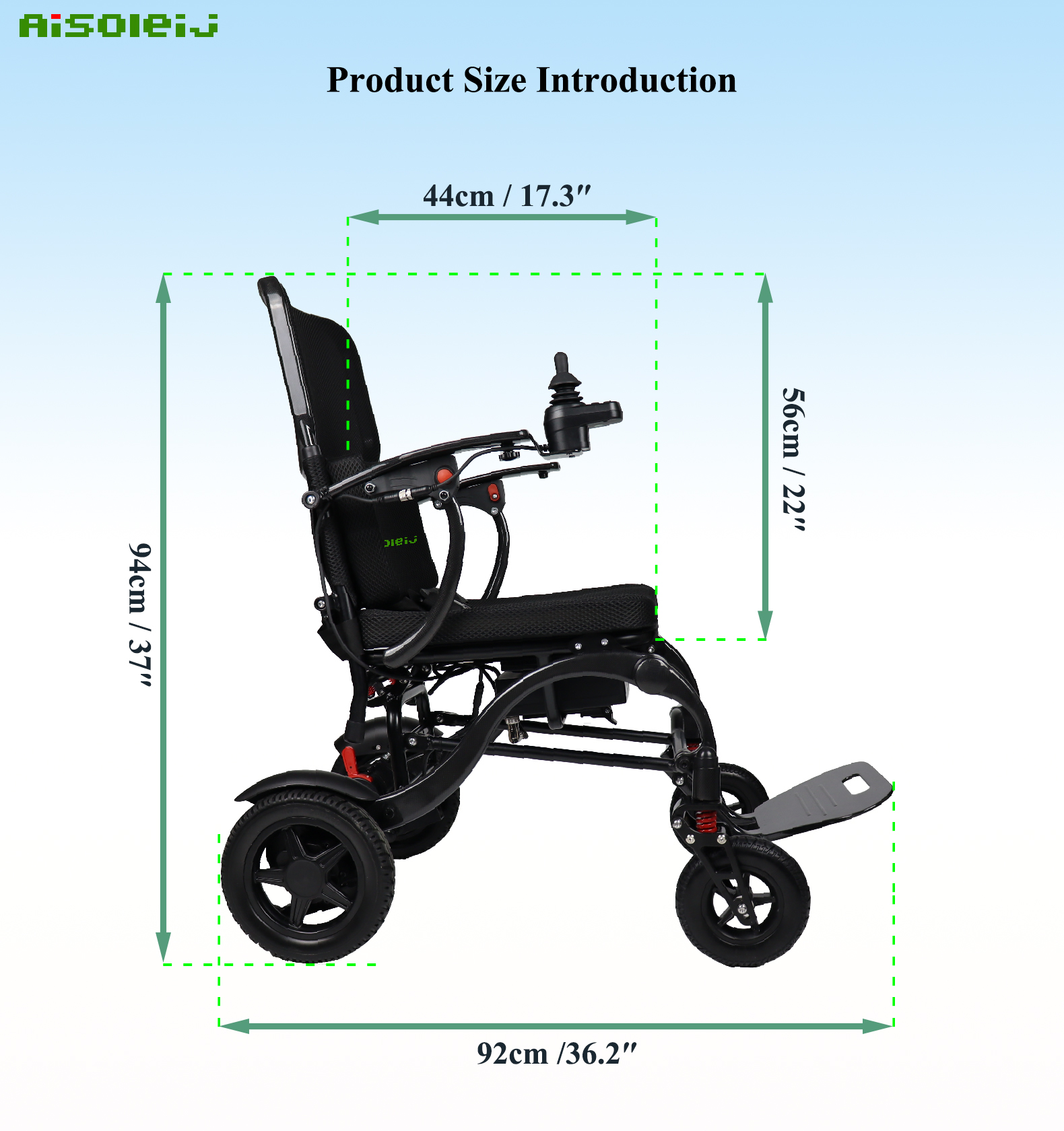

Unfold size (L*W*H) | 920*570*940mm |
590*280*660mm | |
Max speed | 6Km/H |
Max Loading | 120kg |
Climbing slope | ≤12° |
Brushless Motor | 250W*2pcs |
Controller | Intelligent Controller |
Lithium battery | 24V12AH |
Charge | DC 24V 2AH |
Charging time | 6 hours |
Driving distance | 20km |
Front wheels | 7” solid PU |
Rear wheels | 10” solid PU |

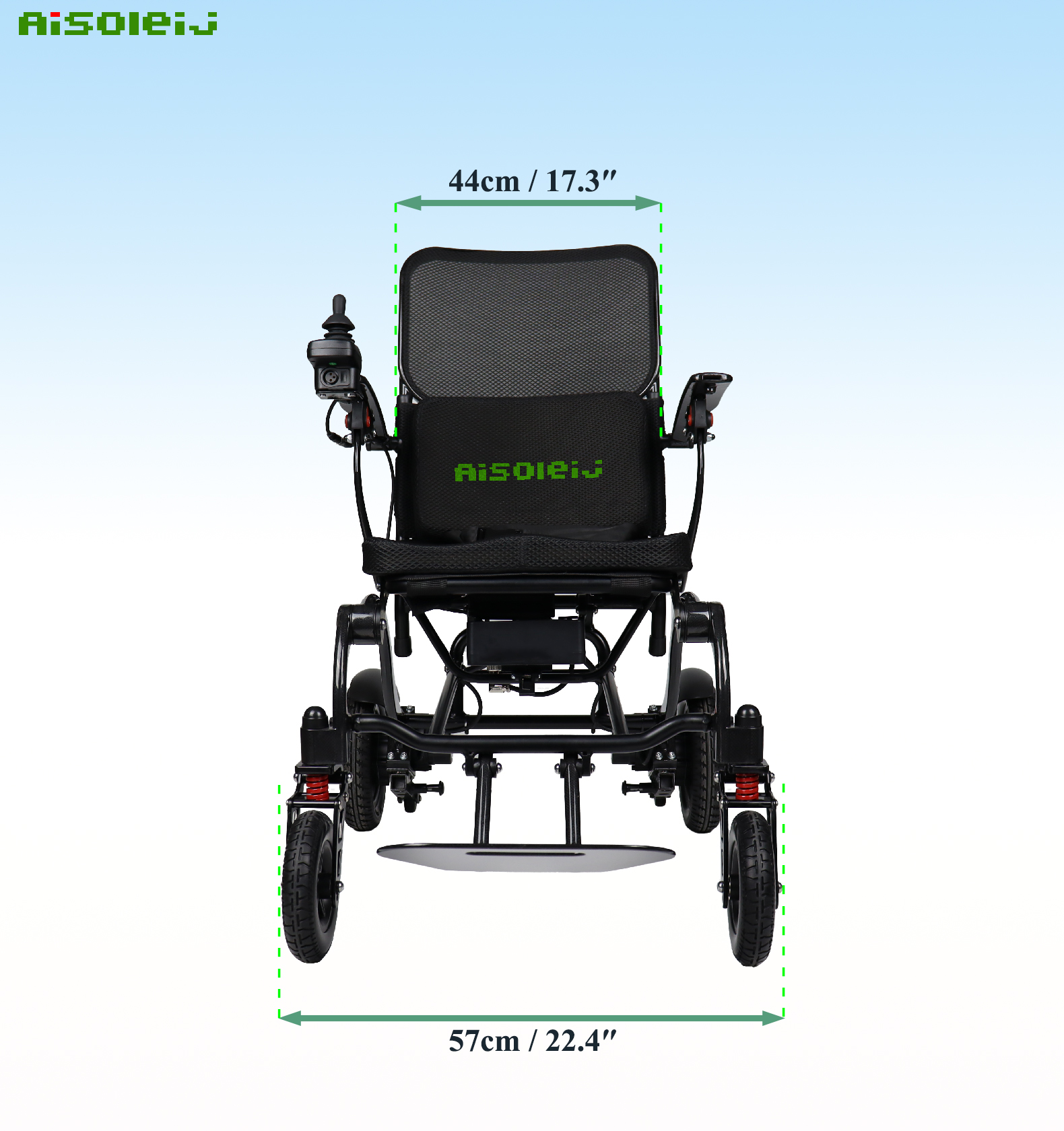

Seat width | 440mm |
Seat height | 490mm |
Seat depth | 440mm |
Backrest height | 560mm |
Turning radius | 850mm |
Obstacle crossing ability | 40mm |
Net weight without battery | 16.5kg |
Battery weight | 2kg |
Net weight with battery | 18.5kg |
Gross weight | 22.65kg |
Colour | Black or customized |
Package box size | 750*655*385mm |
