K02
AiSoleij

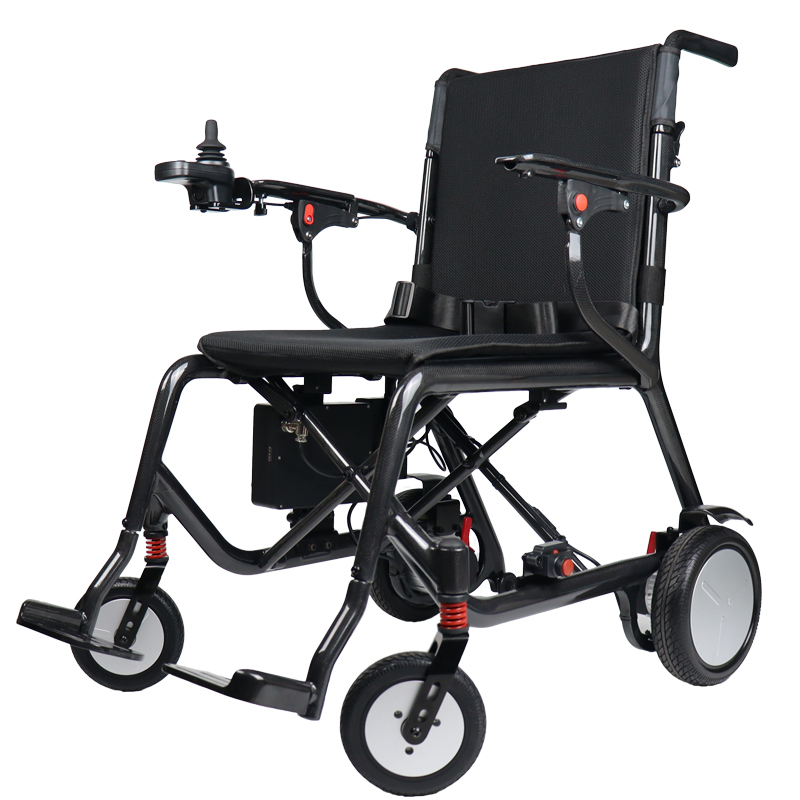

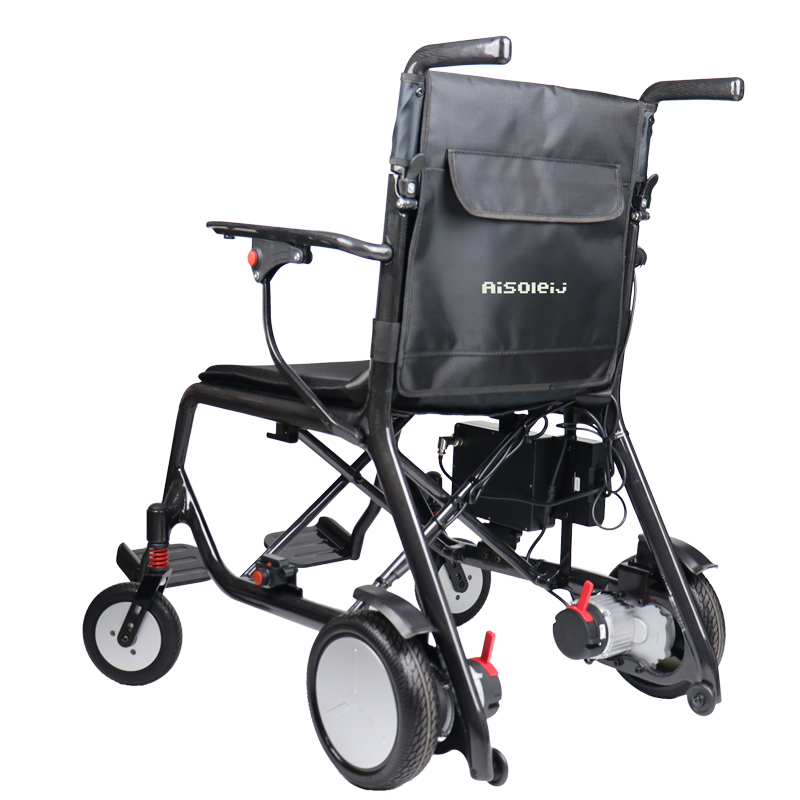

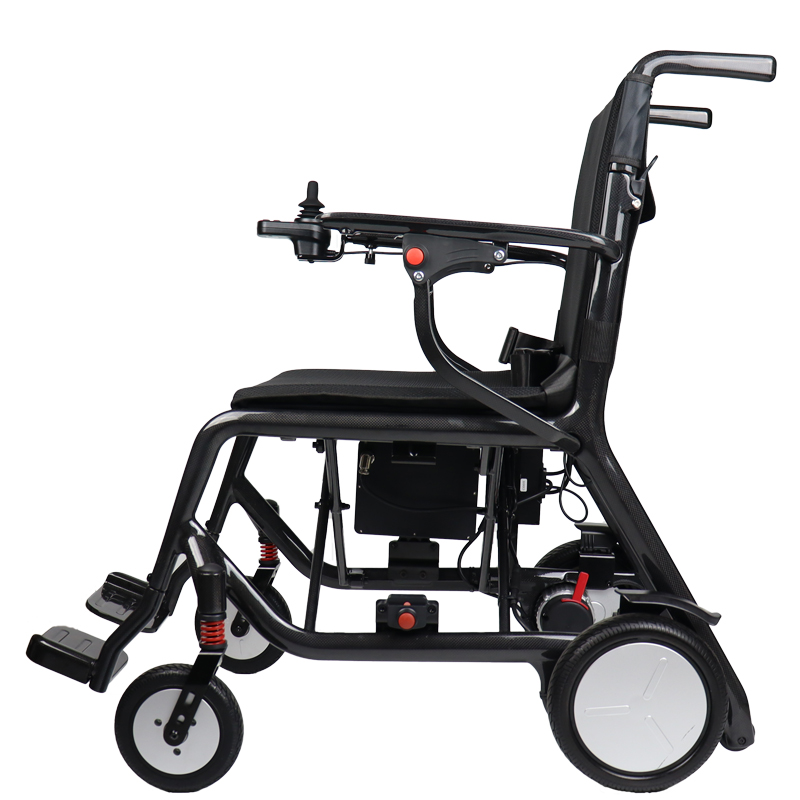

Discover the K02 Carbon Fiber Wheelchair by AiSoleij, a premium model that combines advanced features with customizable comfort. Designed for individuals seeking the perfect balance between support and adaptability, the K02 ensures an exceptional riding experience.

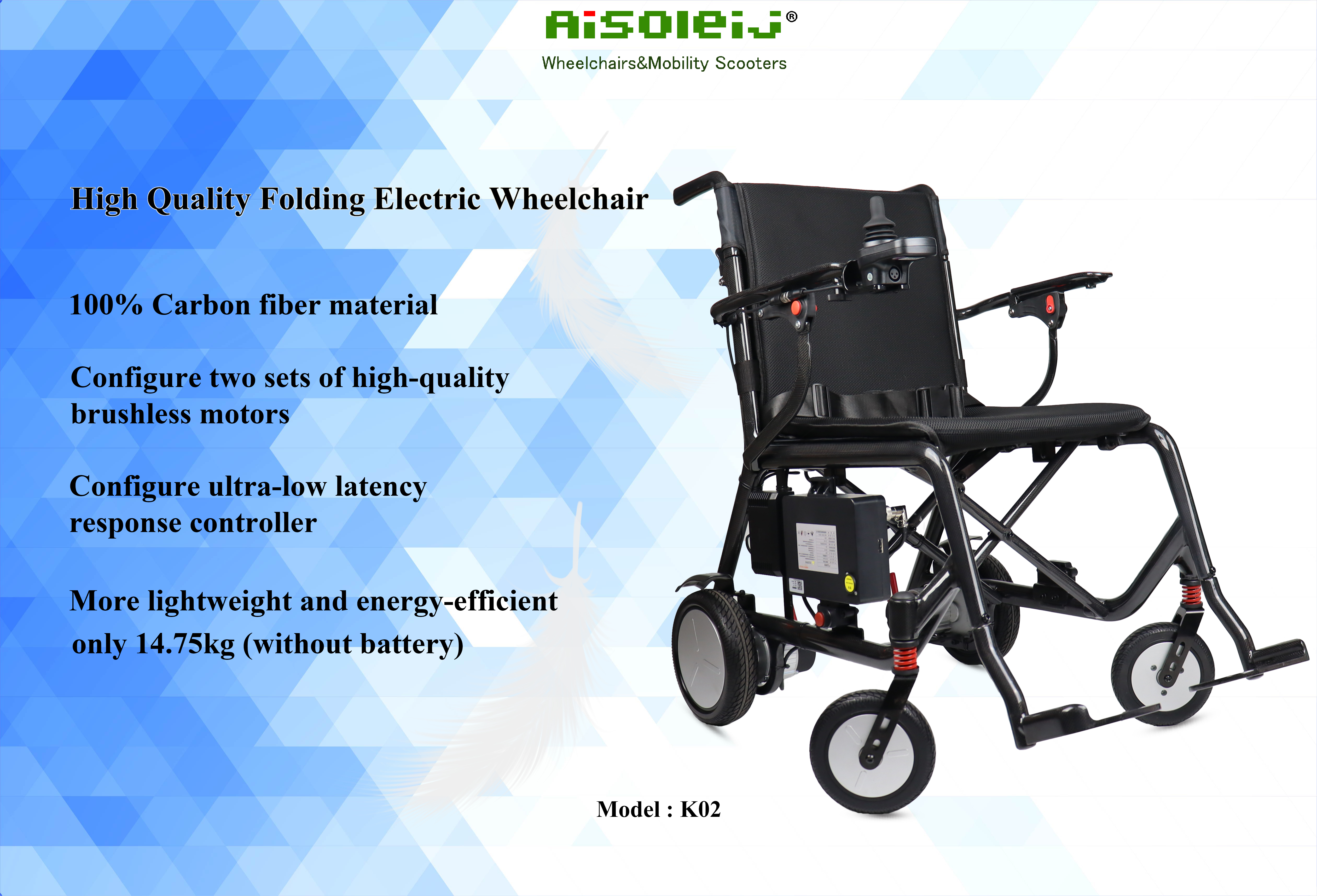

Carbon Fiber Construction
Crafted with carbon fiber, the K02 offers a lightweight yet durable frame, only 14.75kg without battery, providing stability and strength while minimizing unnecessary bulk.

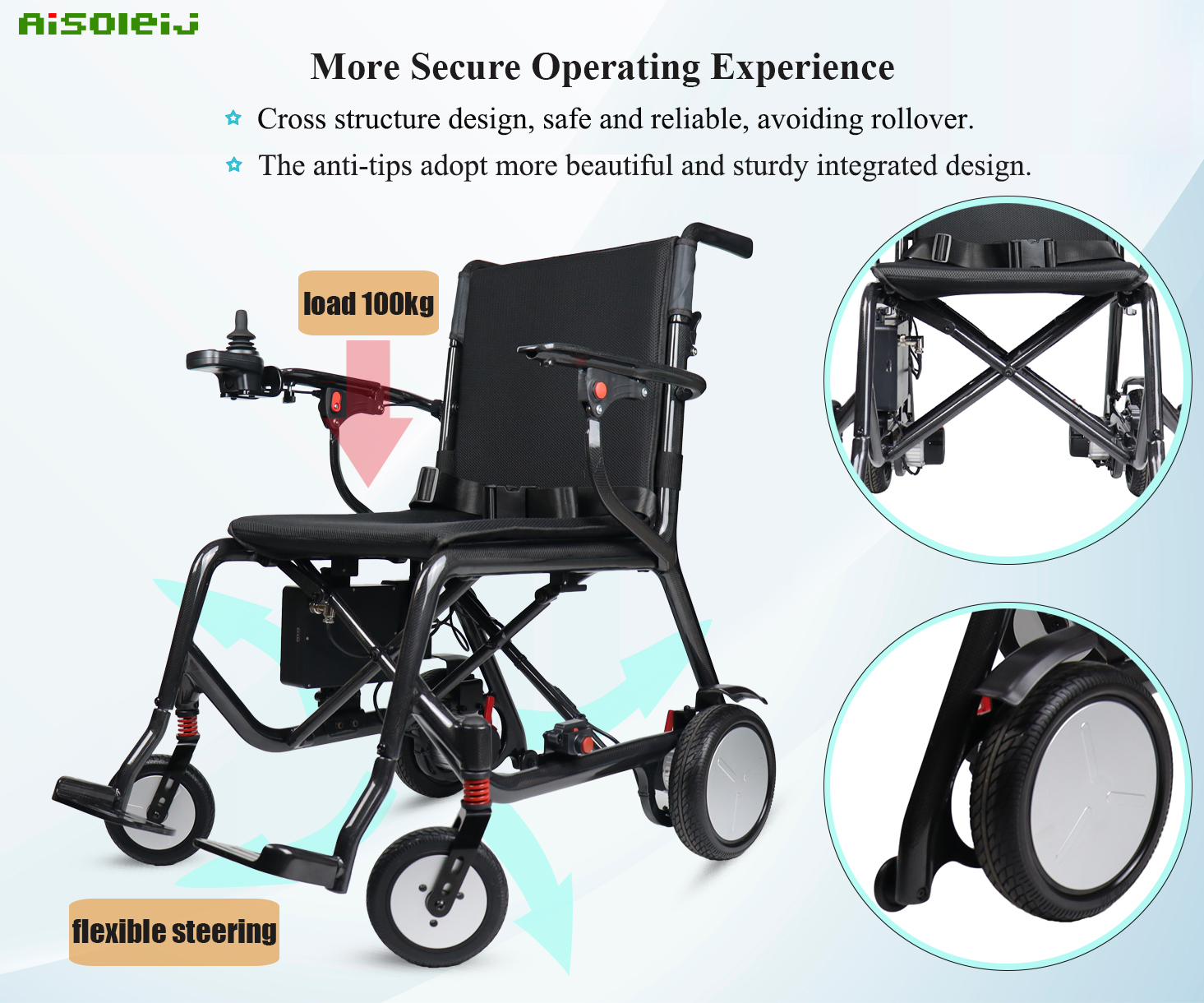

Suspension Springs
Equipped with shock-absorbing suspension springs, the K02 delivers a smooth and comfortable ride, minimizing the impact of uneven surfaces and bumps.

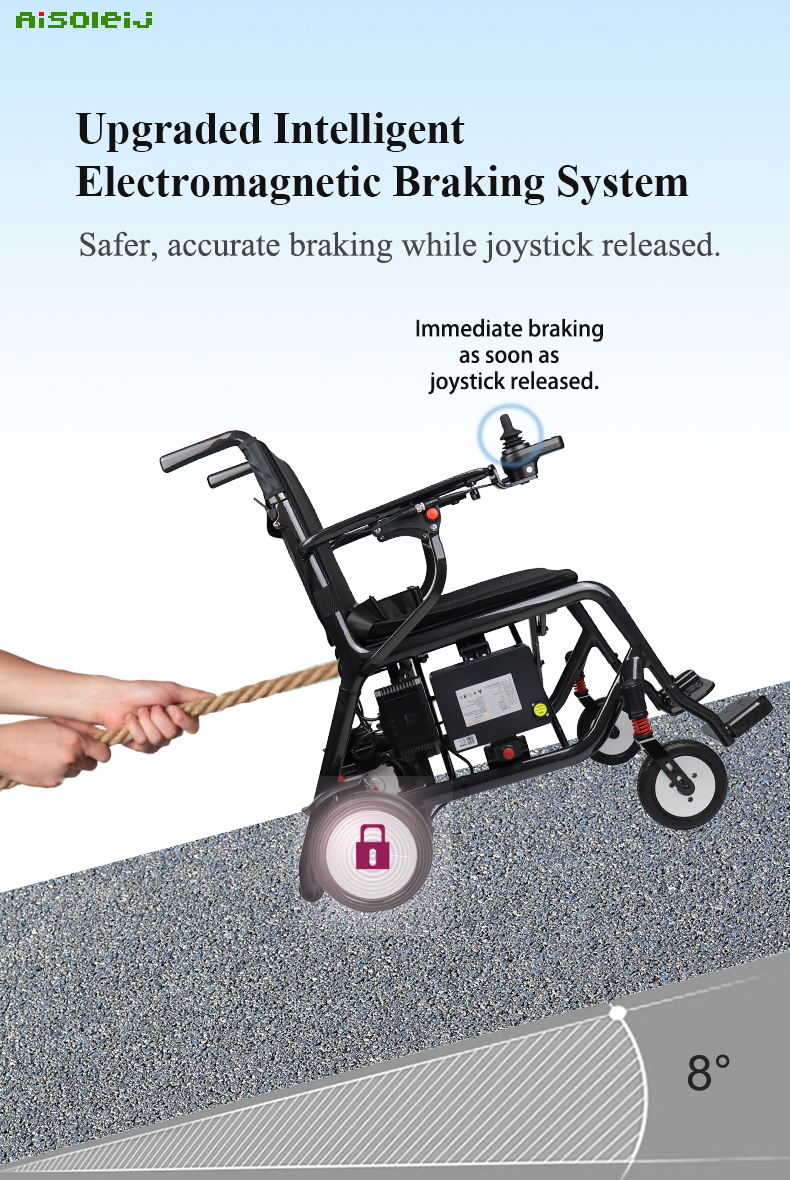

Magnetic Brake System
The K02 incorporates a magnetic brake system that ensures precise control and reliable stopping power, enhancing your safety during both manual and electric operation.
Air Travel Compatible
With its compliance to air travel regulations, the K02 allows you to take it with you wherever your adventures lead.
Discover the K02 Carbon Fiber Wheelchair by AiSoleij, a premium model that combines advanced features with customizable comfort. Designed for individuals seeking the perfect balance between support and adaptability, the K02 ensures an exceptional riding experience.
Carbon Fiber Construction
Crafted with carbon fiber, the K02 offers a lightweight yet durable frame, only 14.75kg without battery, providing stability and strength while minimizing unnecessary bulk.
Suspension Springs
Equipped with shock-absorbing suspension springs, the K02 delivers a smooth and comfortable ride, minimizing the impact of uneven surfaces and bumps.
Magnetic Brake System
The K02 incorporates a magnetic brake system that ensures precise control and reliable stopping power, enhancing your safety during both manual and electric operation.
Air Travel Compatible
With its compliance to air travel regulations, the K02 allows you to take it with you wherever your adventures lead.
Model | K02 |
Material | 100% carbon fiber frame |

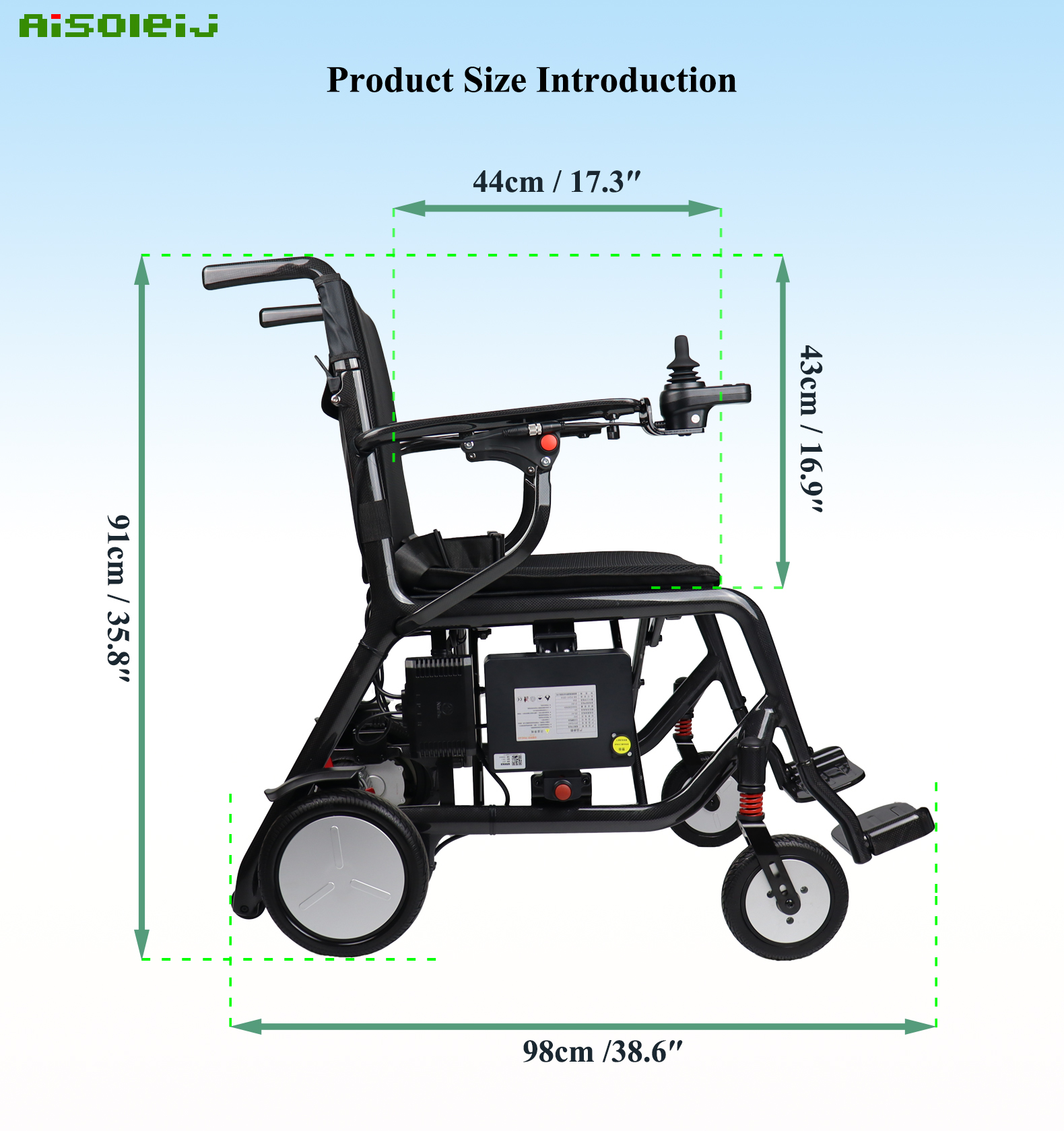

Over size | 980*620*910mm |

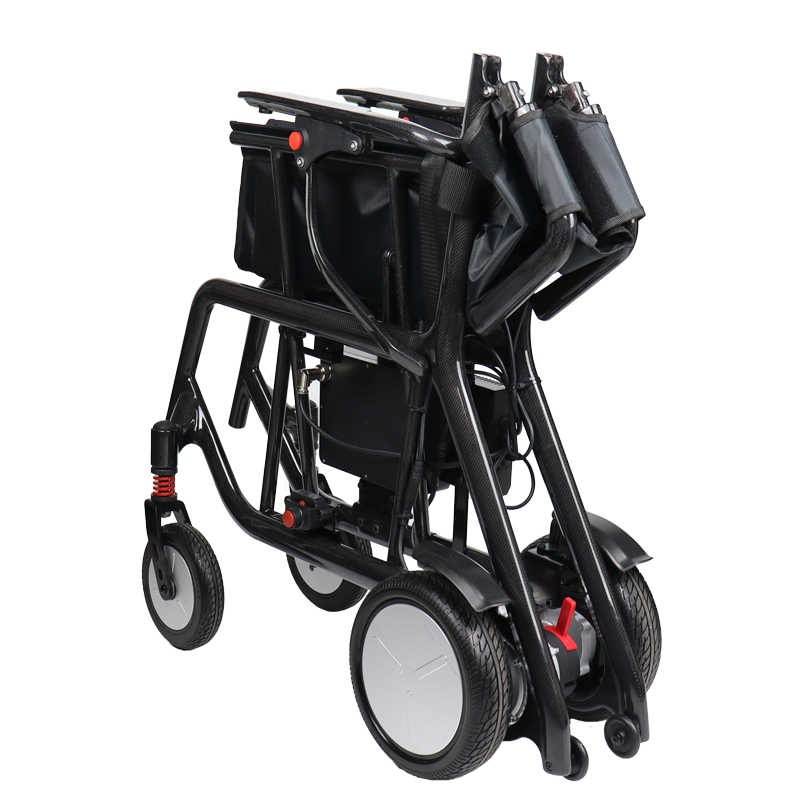

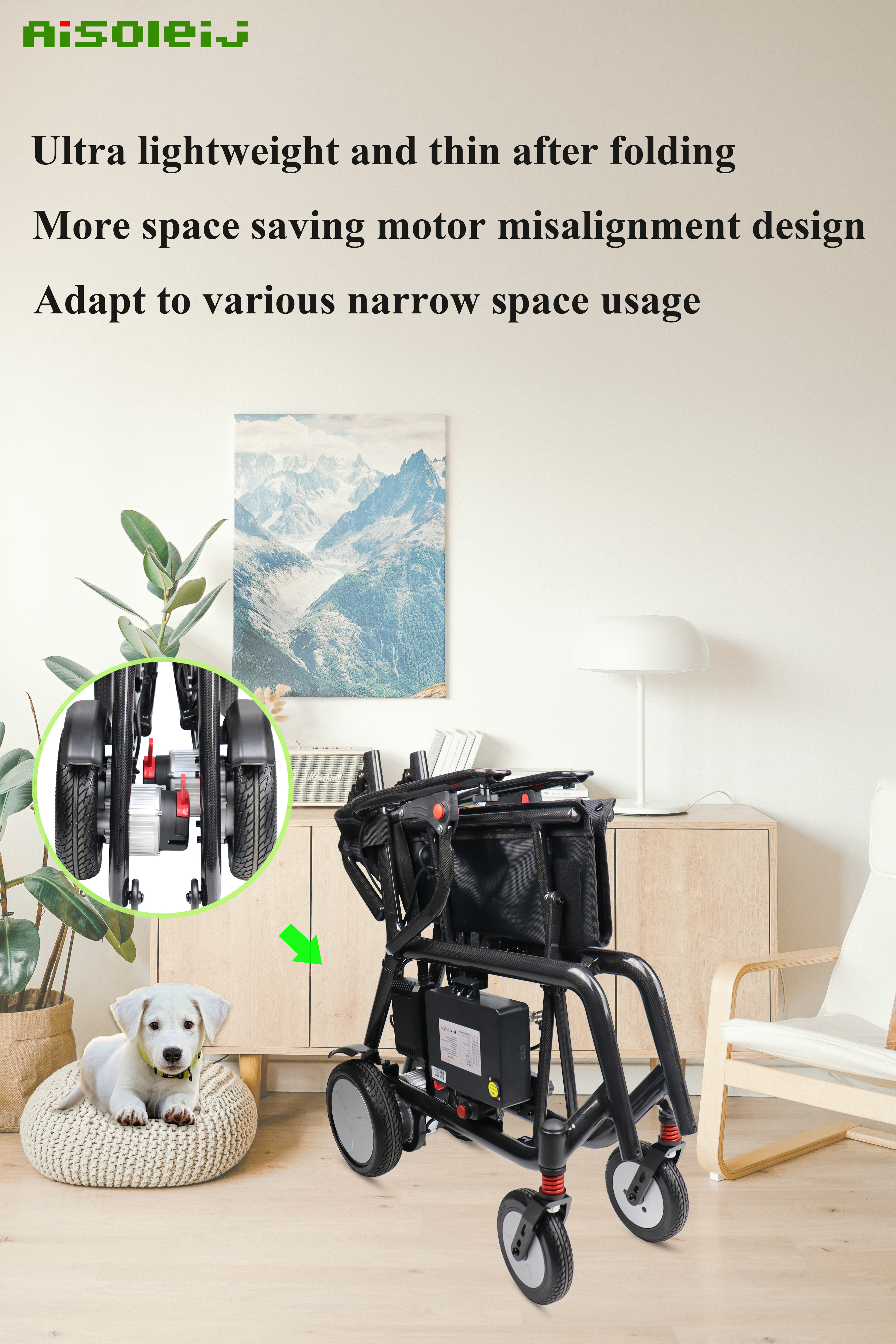

Folded size | 760*260*760mm |
Seat width/seat depth/seat height | 450/440/480mm |
Front wheel | 7 inch PU solid |
Rear | 9 inch PU solid |
Motor | 150W brushless motor*2pcs |

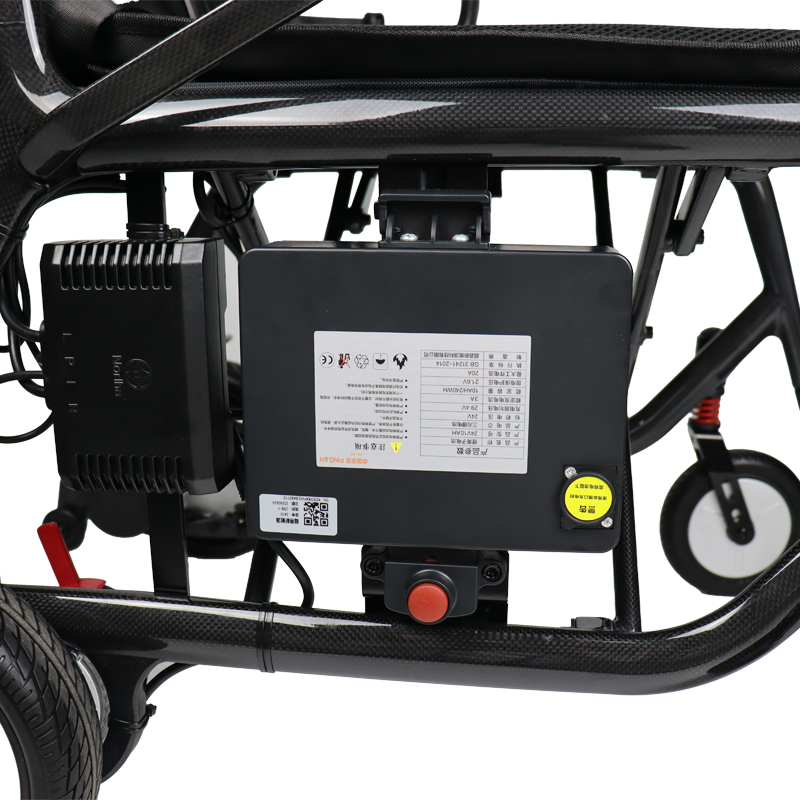

Battery | 24V10AH |

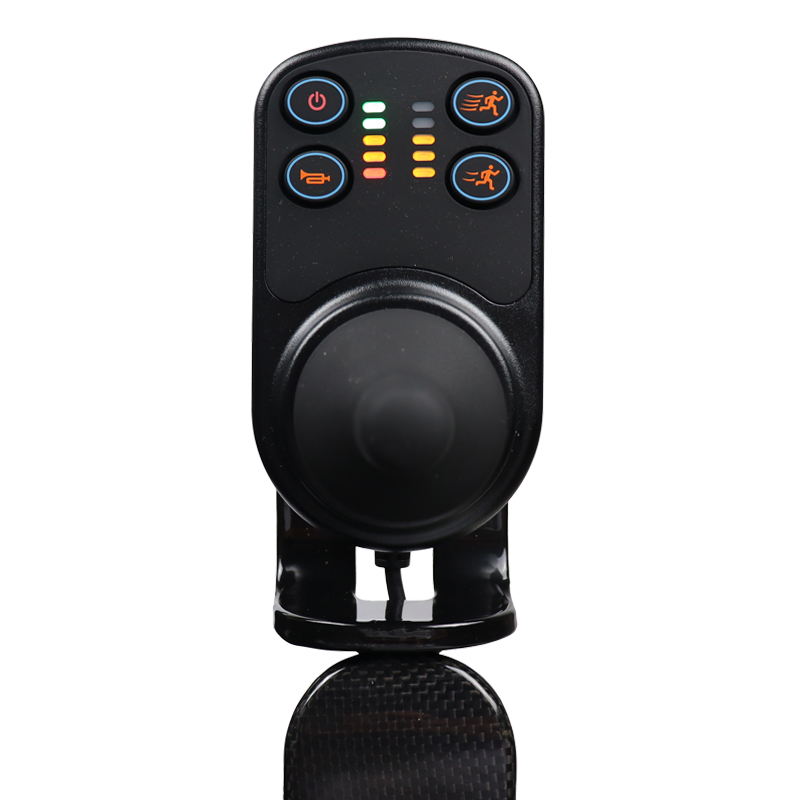

Controller | Intelligent brushless controller |
Max speed | 6km/h |
Max load | 100kg |
Driving distance | 15km |
Climbing slop | ≤8° |
Brake system | Electromagnetics brake |
Turning radius | 1000mm |
Battery weight | 1.7kg/pc |
Chair net weight without battery | 14.75kg |
Chair net weight with one battery | 16.45kg |
Gross weight | 21.8kg |
Package size | 810*300*810mm |
Model | K02 |
Material | 100% carbon fiber frame |
Over size | 980*620*910mm |
Folded size | 760*260*760mm |
Seat width/seat depth/seat height | 450/440/480mm |
Front wheel | 7 inch PU solid |
Rear | 9 inch PU solid |
Motor | 150W brushless motor*2pcs |
Battery | 24V10AH |
Controller | Intelligent brushless controller |
Max speed | 6km/h |
Max load | 100kg |
Driving distance | 15km |
Climbing slop | ≤8° |
Brake system | Electromagnetics brake |
Turning radius | 1000mm |
Battery weight | 1.7kg/pc |
Chair net weight without battery | 14.75kg |
Chair net weight with one battery | 16.45kg |
Gross weight | 21.8kg |
Package size | 810*300*810mm |
The purchaser of this product is entitled to a limited warranty as offered by our company, and its affiliates on the following components and timeframes:
※ Chair frame: 3 years
※ Motors: 1 year
※ Controller and CPU system: 1 year
※ Battery: 1 year
※ Wear parts: 3 months
Includes tires, seat and backrest, armrests, and support straps.
This warranty is valid from the date of ex-factory and valid for the replacement of dysfunctional parts only. Any parts under warranty will be replaced and shipped to your door.
