AZ01 Techniques

Availability:
Quantity:


Key Features:

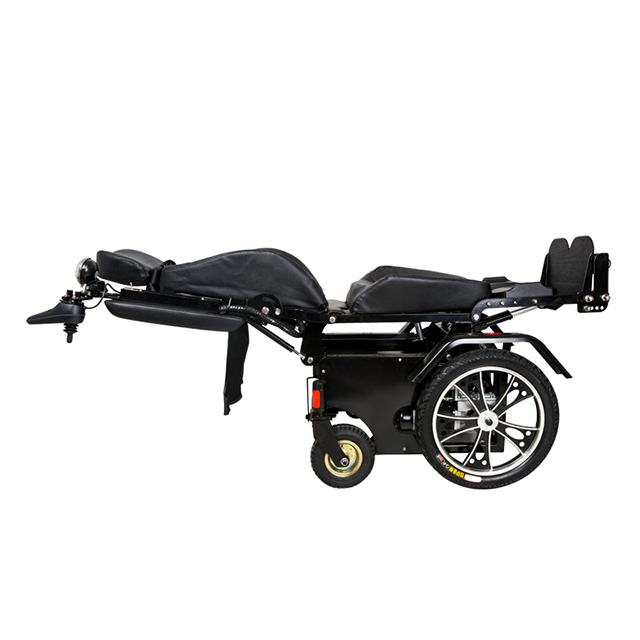

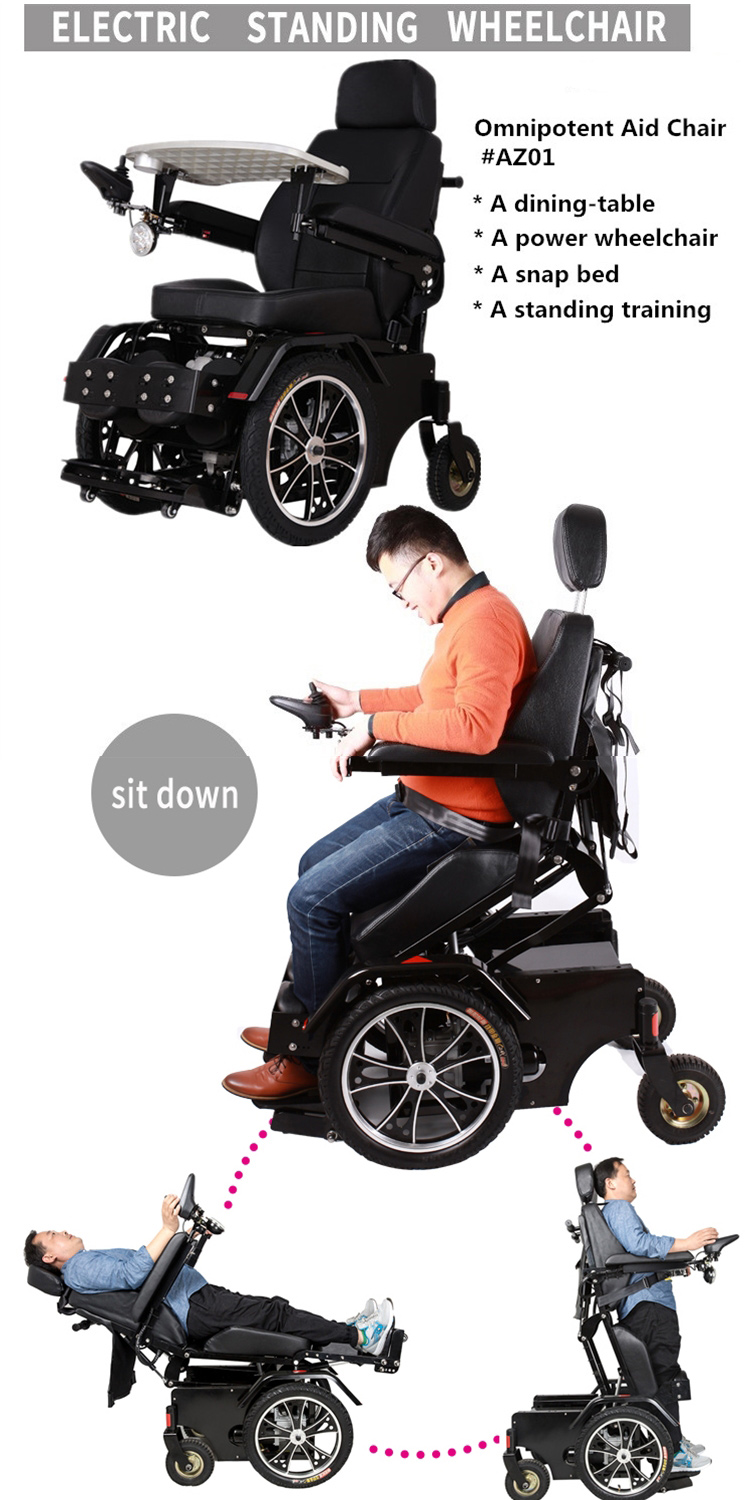

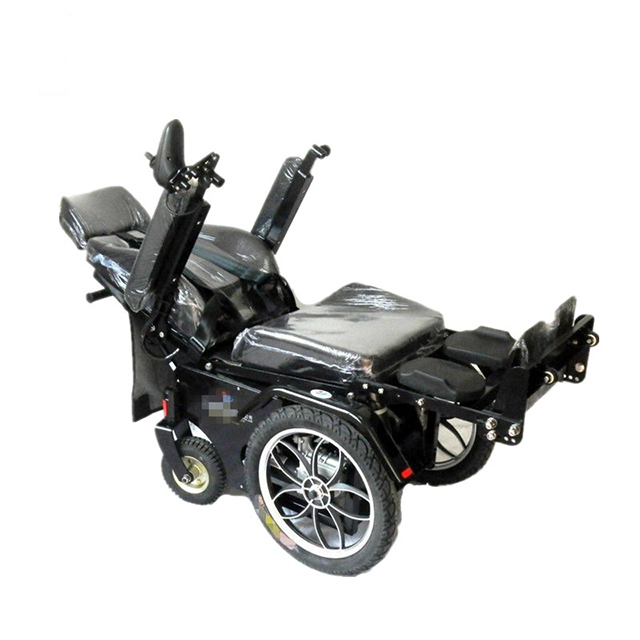

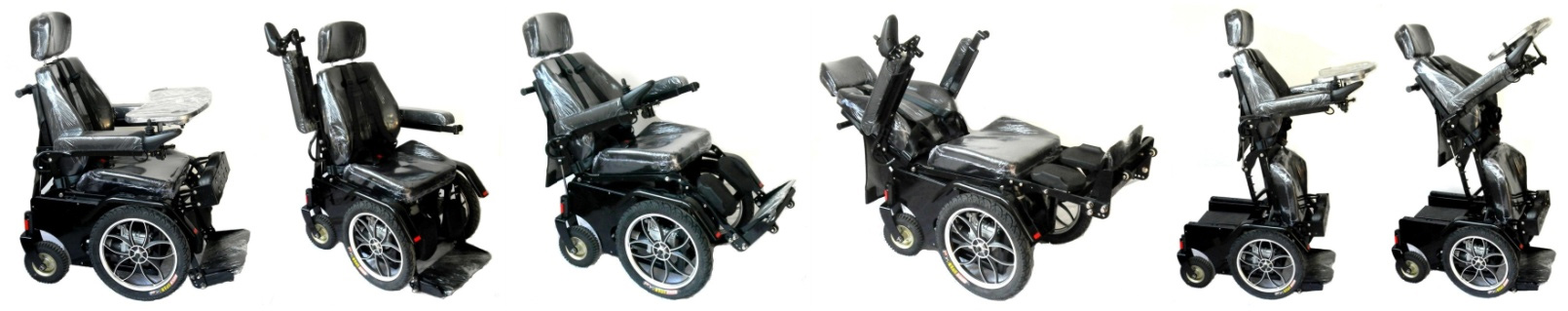

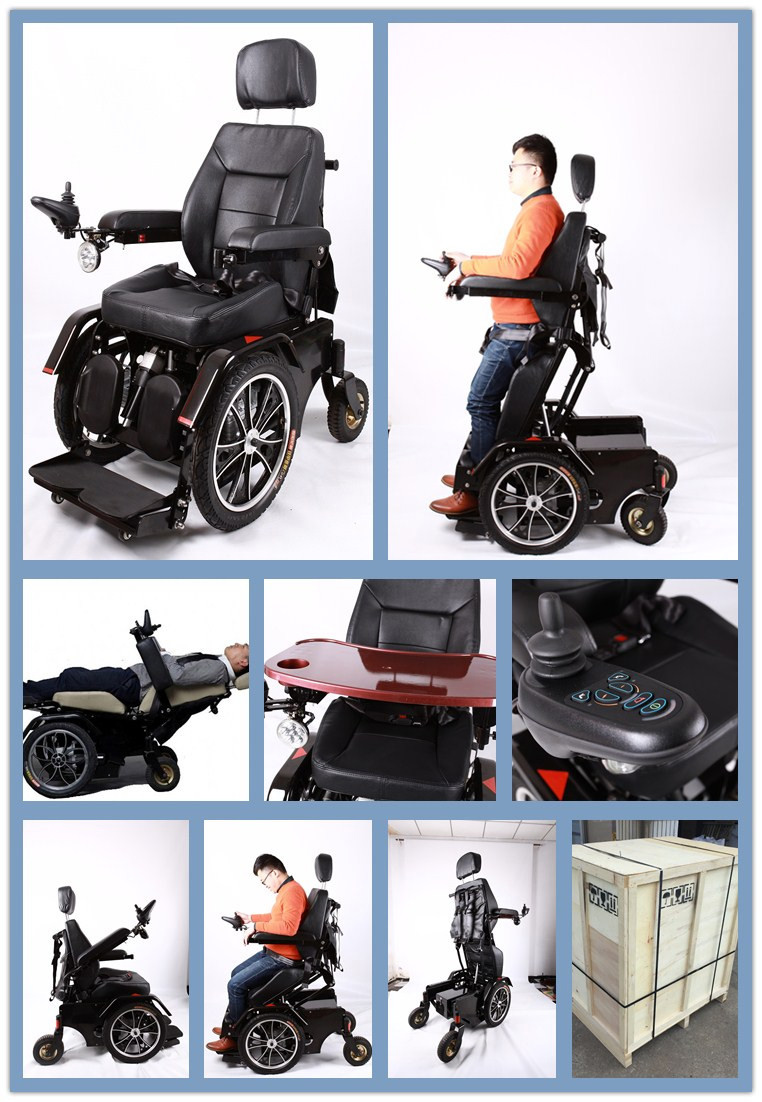

1. with this standing wheelchair, the paraplegia patients can stand up, lie down, sit, leg adjusting, move and use the toilet by themselves.

2. Help the patient to stretch his body and joint, which strengthens cardio-pulmonary function and prevent bedsore.

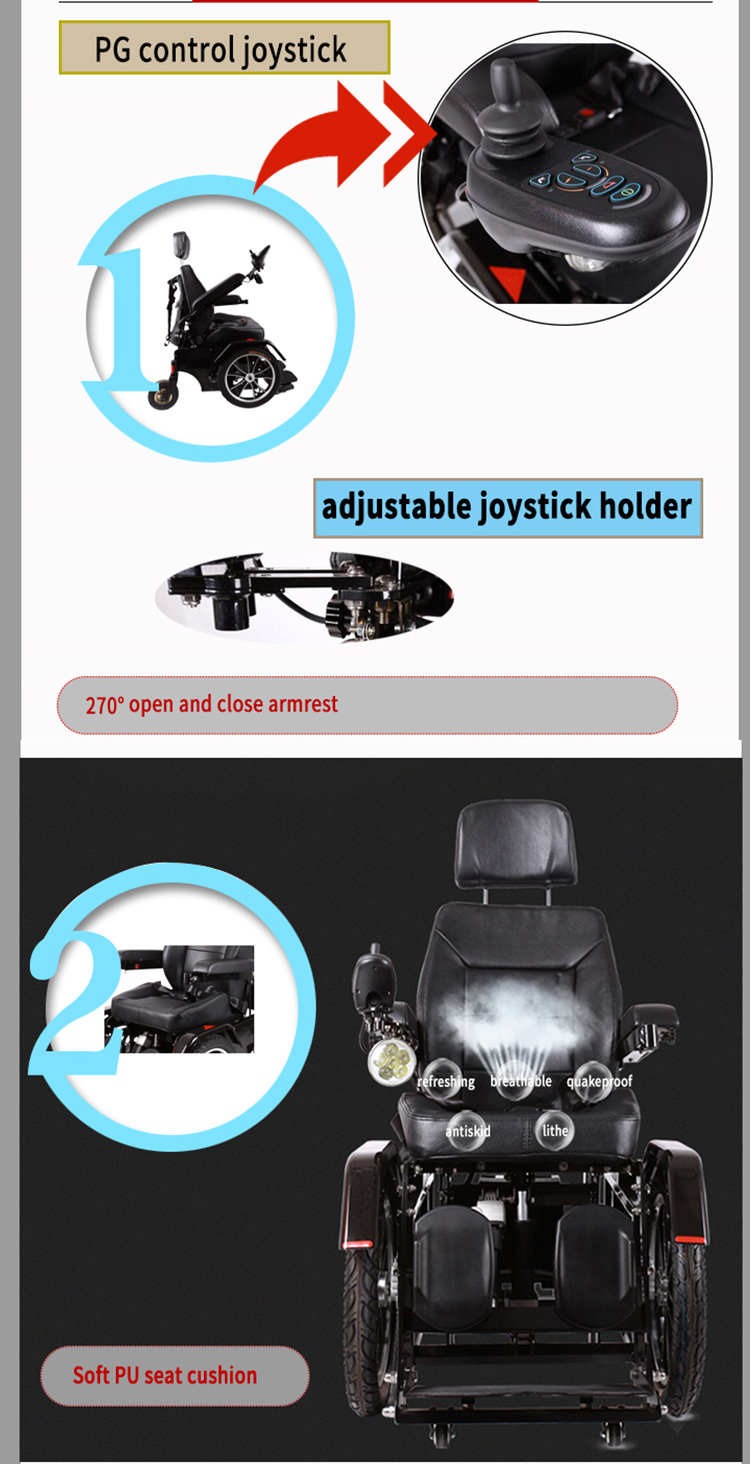

3.PG controller. Suoyang motor, Chaowei acid-lead battery.

4.The warranty period:1 year.



Product Name:

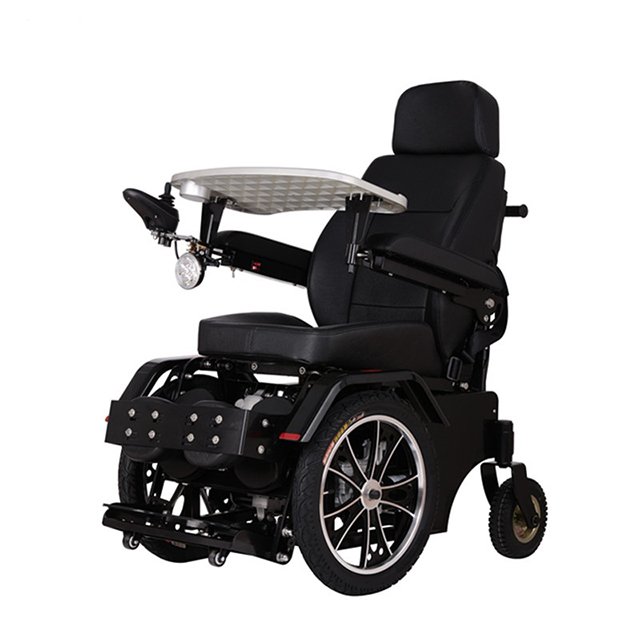

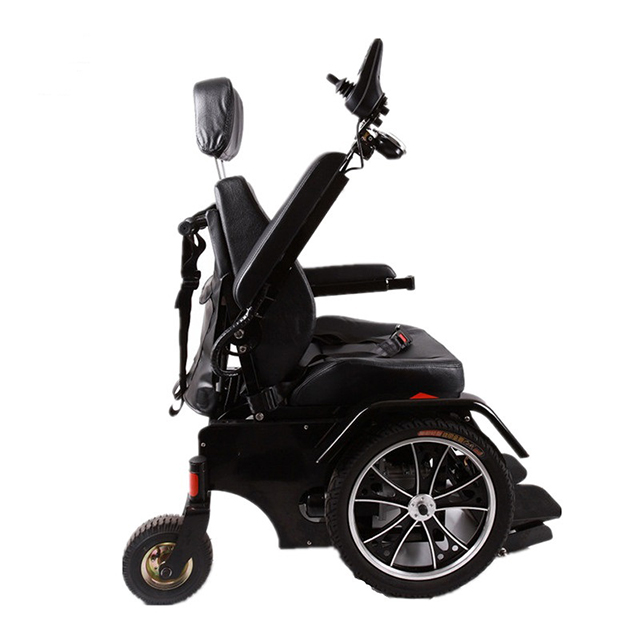

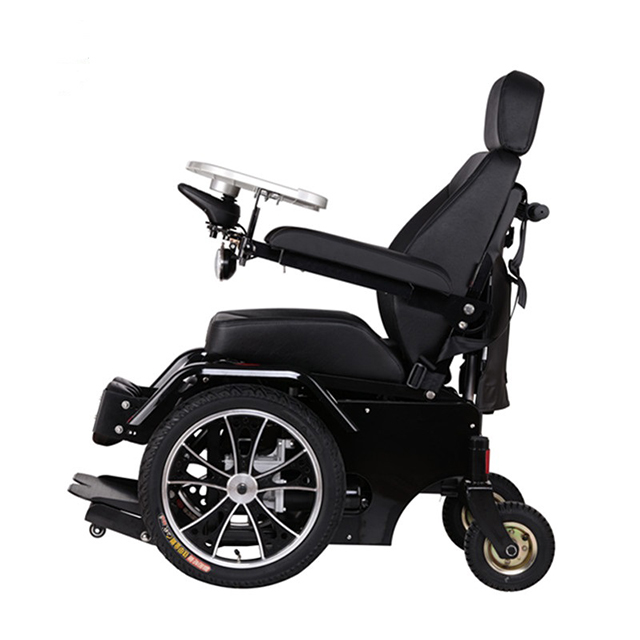

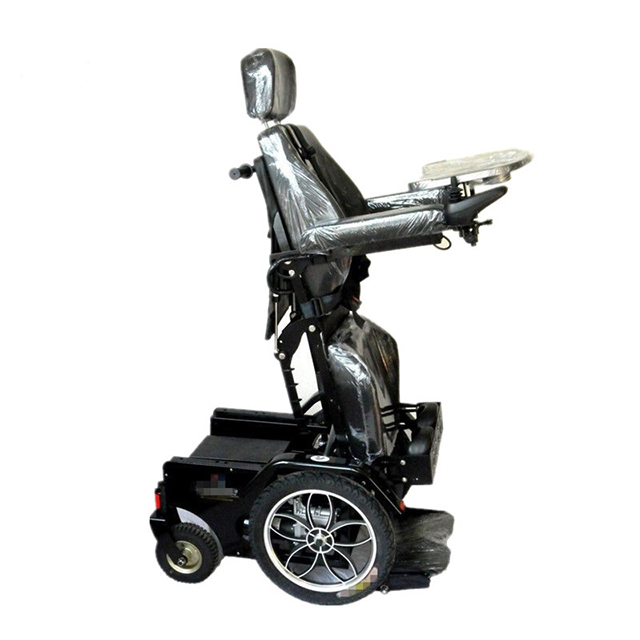

Electric Standing wheelchair

Model No.:

AZ01

Type:

standing wheelchair

Overall Dimension:

1120x660x1100mm

Braking system:

full automatic electromagnetic

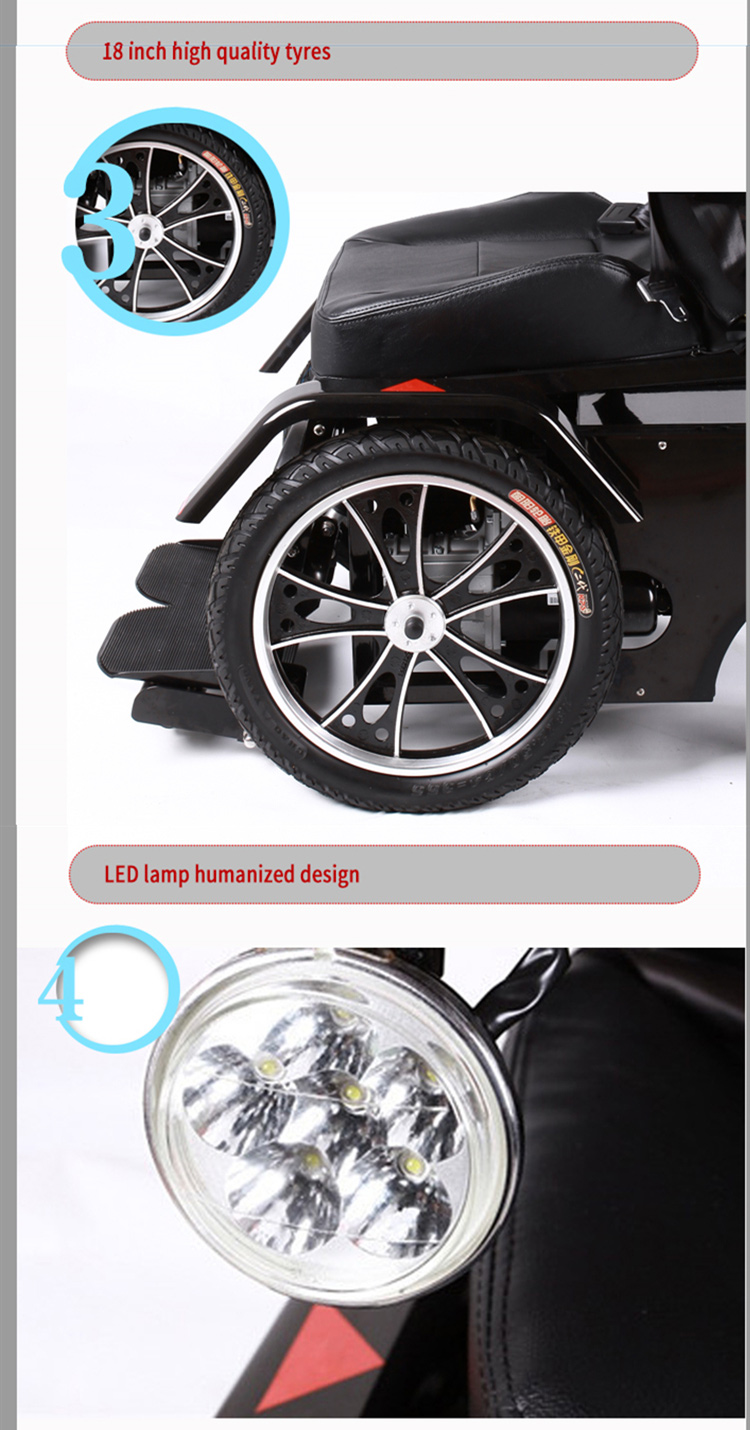

Front tires:

18"x2.5/64-355 Pneumatic tire

Back tires:

2.5"x4

Max Loading capacity :

150kg

Driving distance:

50km

Seat width:

450mm

Seat depth:

450mm

Seat height:

560mm

Backrest height:

600mm

Armrest height:

360mm

 Climbing Slope:

12°

Pushrod motor:

LINIX DC 3500Nx3 DC 6000Nx1

Driving Motor:

MTM DC 320Wx2PCS

Controller:

PG VR-2 PG R-NET

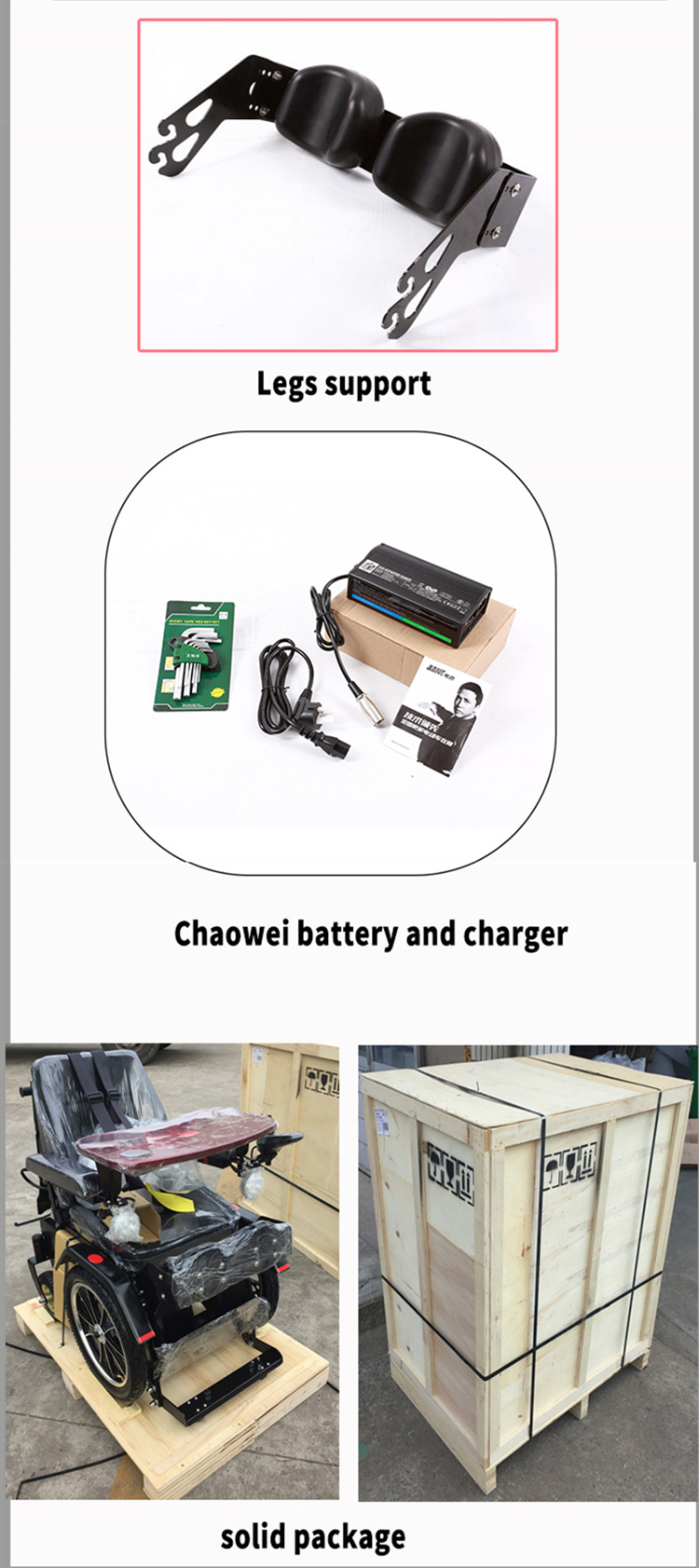

Charger:

Input: 110-230V/AC; output:24V/DC

lead-acid battery

12V 20AH x4 pcs

Net weight:

125 kgs

Gross weight

163kg

Package size:

80*110*120cm, 1 set/plywood box









standing-wheelchair-(2)standing-wheelchair-(3)standing-wheelchair-(4)standing-wheelchair-(5)standing-wheelchair-6
