M6009 Economic Folding Travel Electric Wheelchair

Availability:
Quantity:
Inquire Add to Basket

  • M6009

  • AiSoleij

1


Description:

M6009 is a light weight aluminum alloy wheelchair, and econormic price.

Features:

1. Light alloy frame, net weight 25.2kg with battery, and the max capacity is 120kg.

2. Dual 180W brushless motor, low friction, minimum noise.

4. Accurate&Sensitive controller. Intelligent operation system and easy to control.

5. Electromagnetic braking system.Accurate braking while joystick released.

6. Compact size for easy to load in trunk.

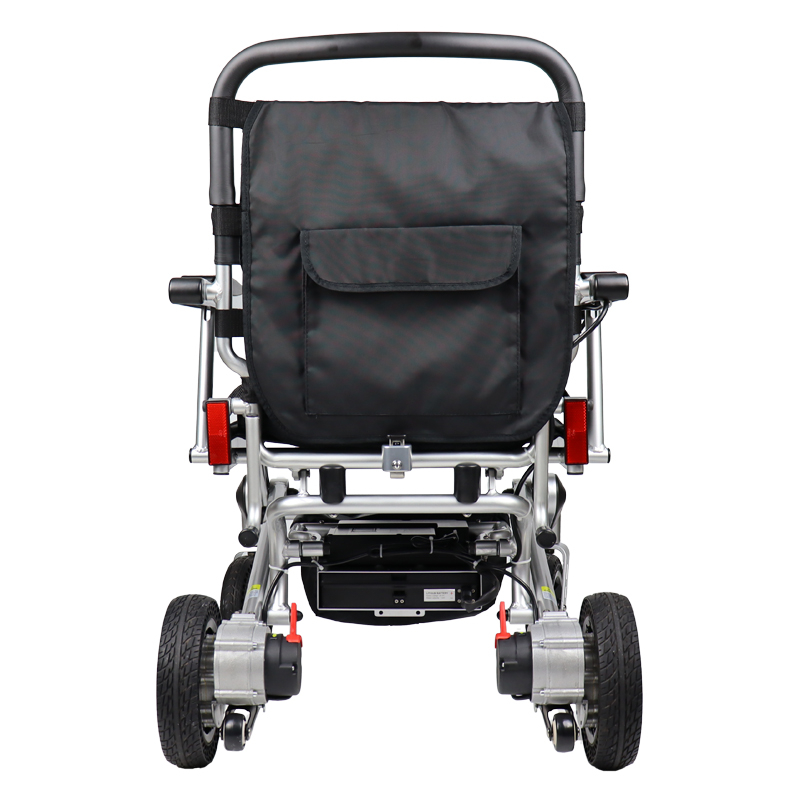

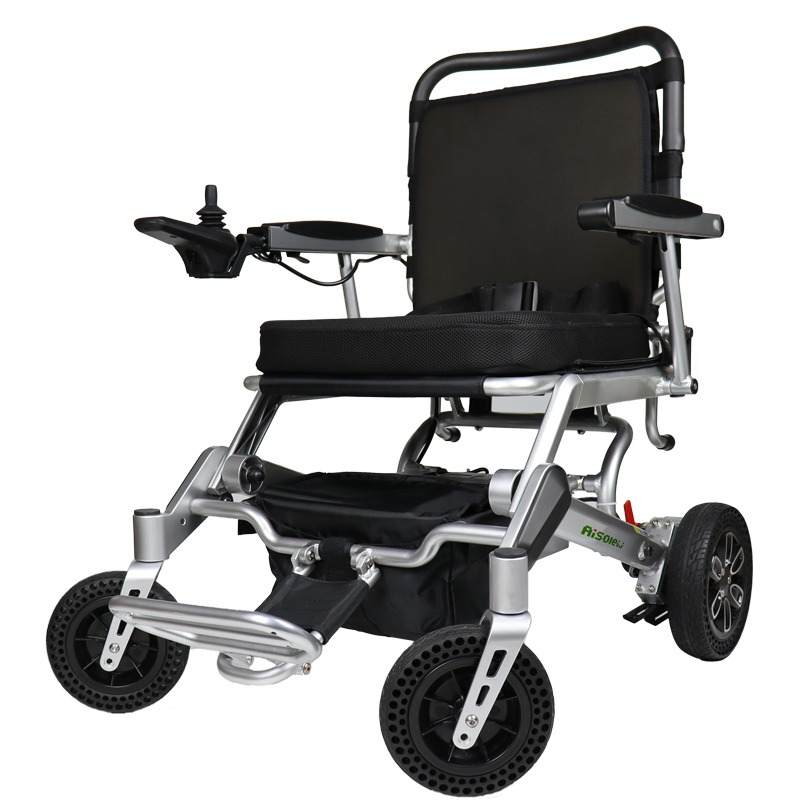

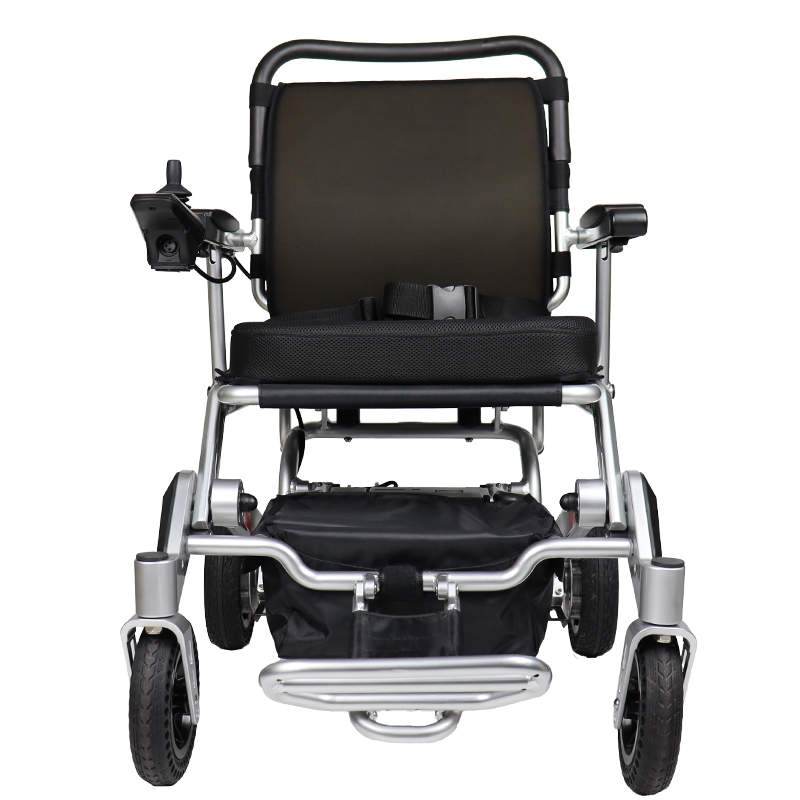

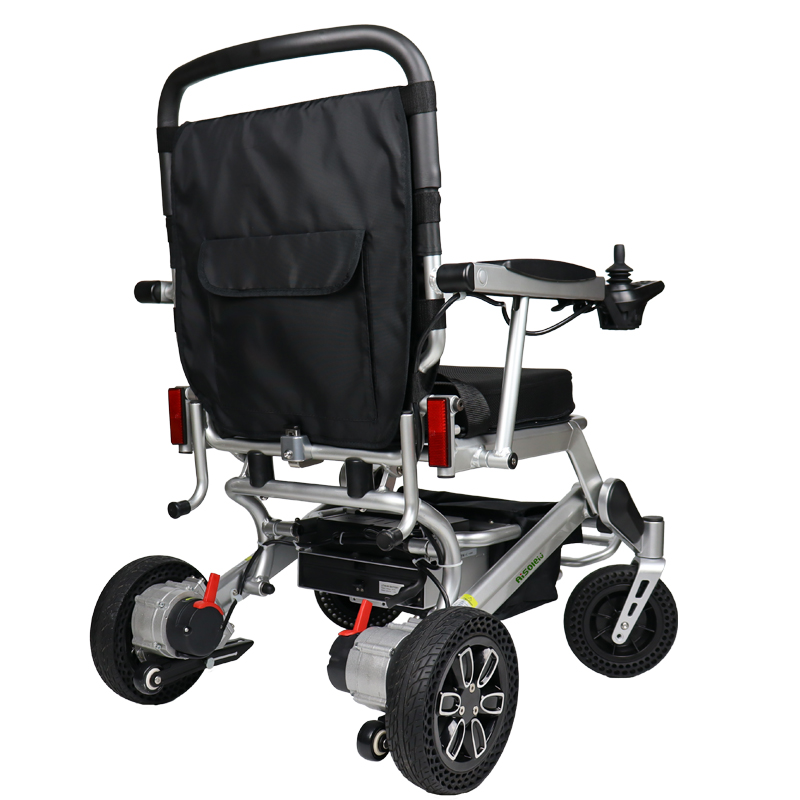

M6009 travel electric wheelchair (9)

M6009 travel electric wheelchair (3)

M6009 travel electric wheelchair (5)

M6009 Economic Folding Travel Electric Wheelchair

Model No.

M6009

Frame material

aluminium alloy

Unfold size (L*W*H)

930x620*960mm

Fold size （L*W*H）

620x370x680mm

Seat cushion size

450*450*70mm

Max speed

4.5Km/H

Max Loading

120kg

Climbing slope

≤12°

Brushless Motor

24V 180W*2pcs

Controller

Intelligent Controller

Brake System

electromagnetic brake

Lithium battery

24V11AH

Charge

DC 24V 3AH

Charging time

6 hours

Driving distance

18km

Front wheels

8” solid PU

Rear wheels

10” solid PU

Seat width

450mm

Seat height

500mm

Seat depth

450mm

Backrest height

560mm

Turning radius

≤900mm

Obstacle crossing ability

25mm

Net weight without battery

23kg

Battery weight

2.2kg

Net weight with  battery

25.2 kg

Gross weight

30 kg

Colour

Green/red

Package box size

66*40*86cm

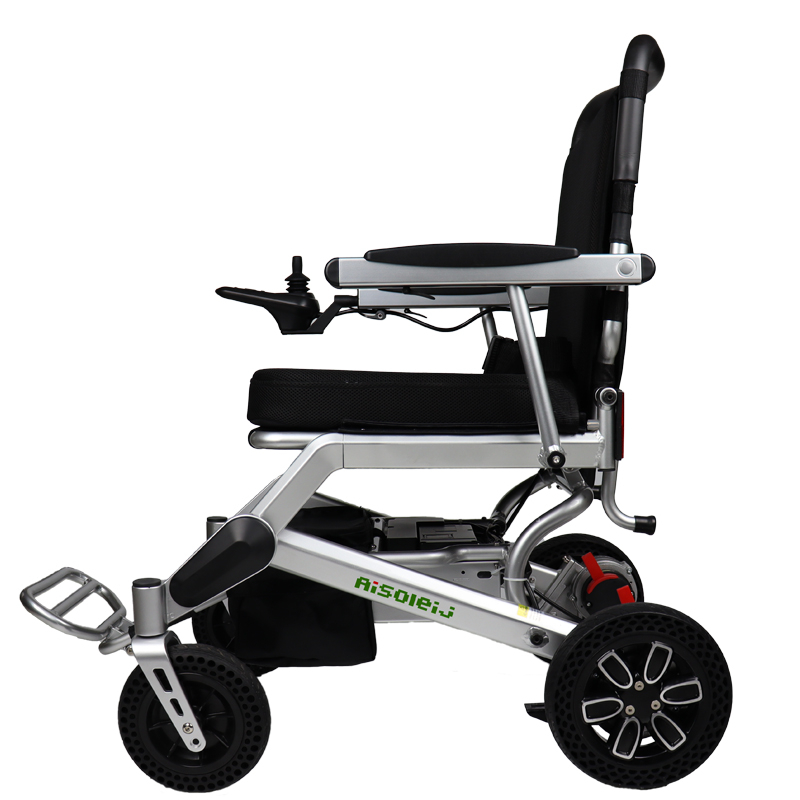

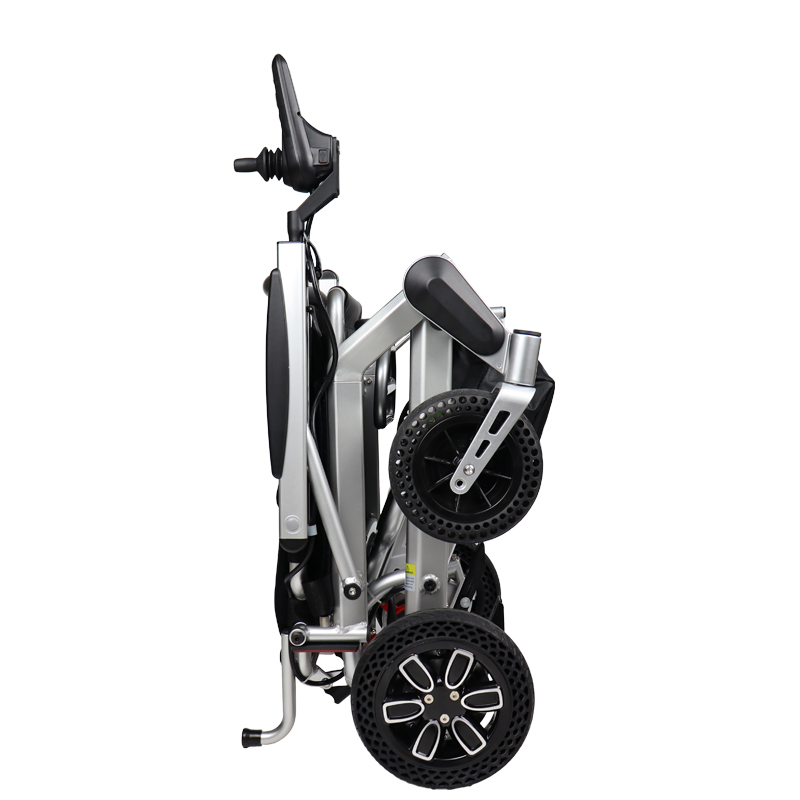

M6009 travel electric wheelchair (6)

M6009 travel electric wheelchair (7)

M6009 travel electric wheelchair (8)

  The purchaser of this product is entitled to a limited warranty as offered by our company, and its affiliates on the following components and timeframes:


  ※ Chair frame: 3 years

  ※ Motors: 1 year

  ※ Controller and CPU system: 1 year

  ※ Battery: 6 months

  ※ Wear parts: 3 months

   Includes tires, seat and backrest, armrests, and support straps.

  This warranty is valid from the date of ex-factory and valid for the replacement of dysfunctional parts only. Any parts under warranty will be replaced and shipped to your door.
