M6005
AiSoleij
Description:

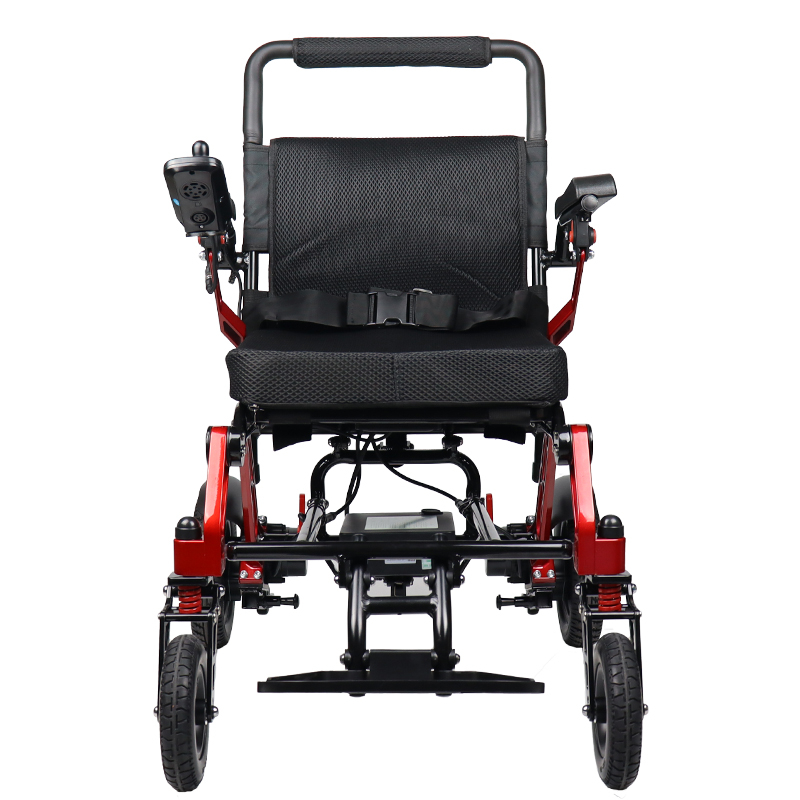

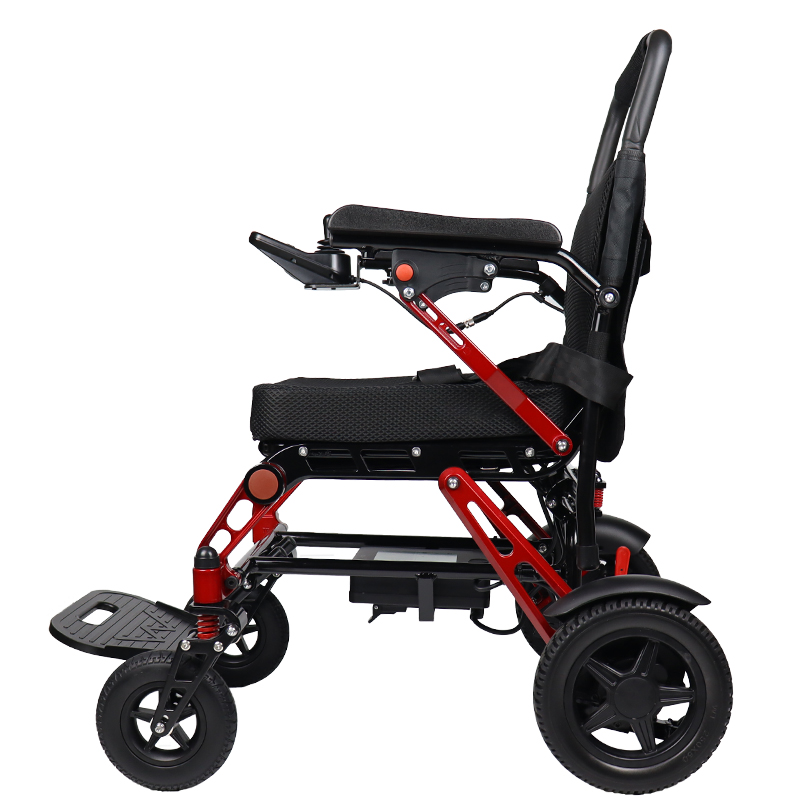

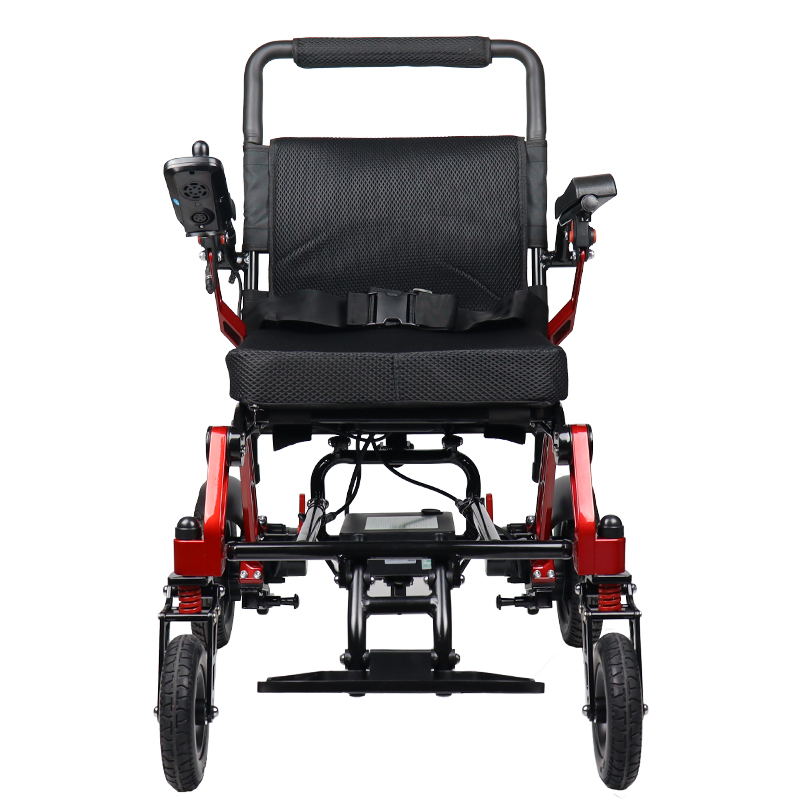

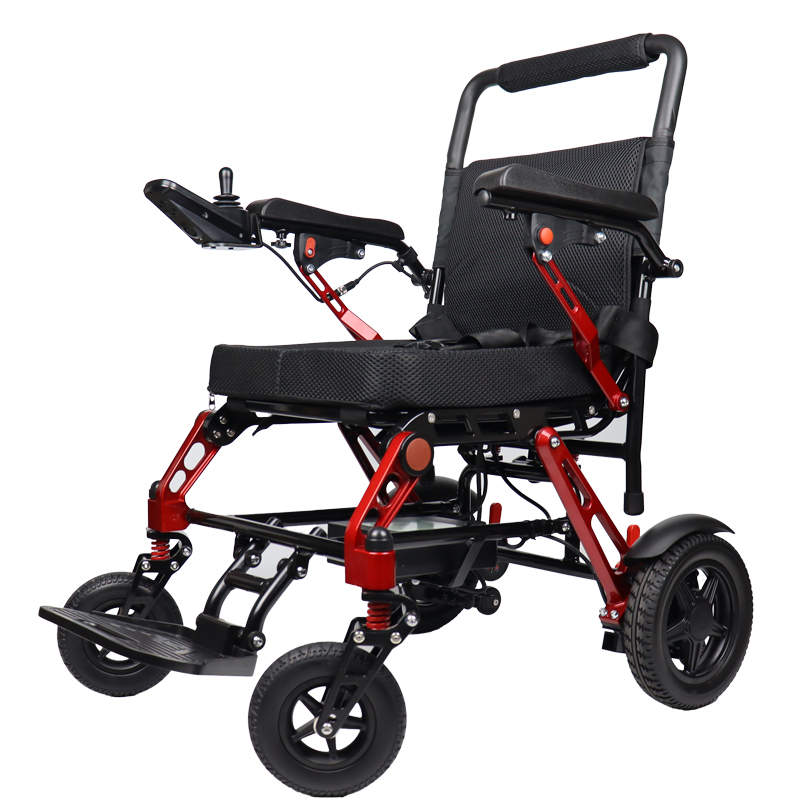

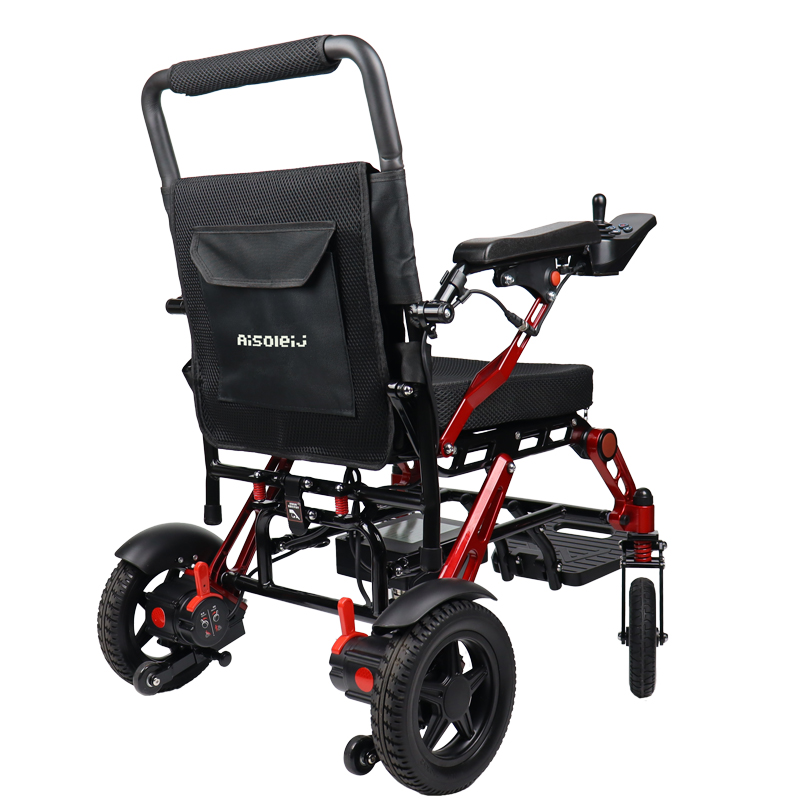

AiSoleij M6005 Magenium folding electric wheelchair, a perfect choice for wheelchair traveling.
Features:
1.Two pieces 200W brushless motor.

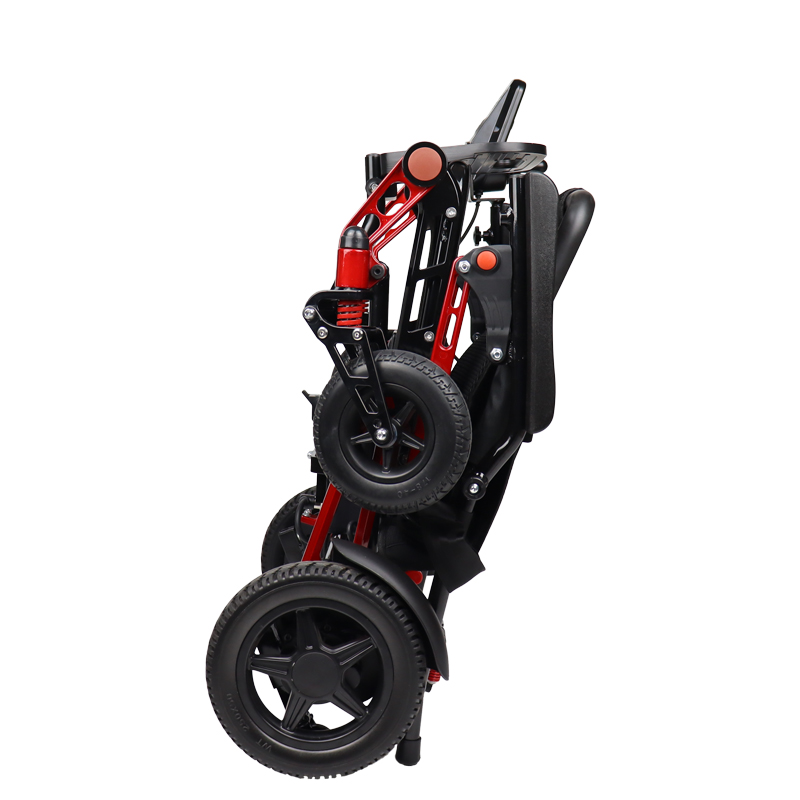

2. Easy to fold, carry as a luggage on plane or on train.
4. Frame material: Magnesium alloy.
5. Removable lithium battery, easy to take and charge.
6. Anti-turning wheels design.
7. Lifted arms.

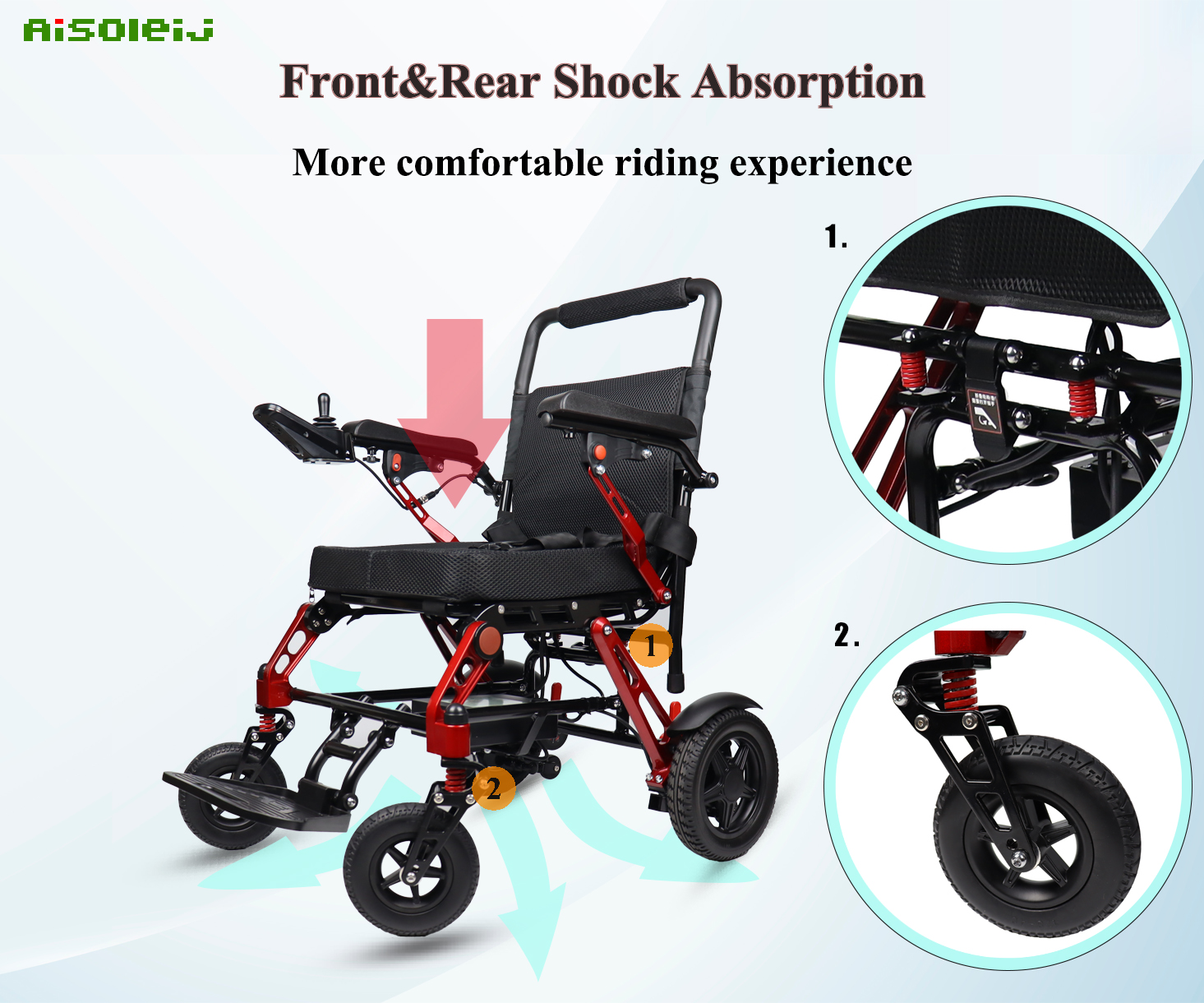

8. Front and rear total 4 torsional springs.

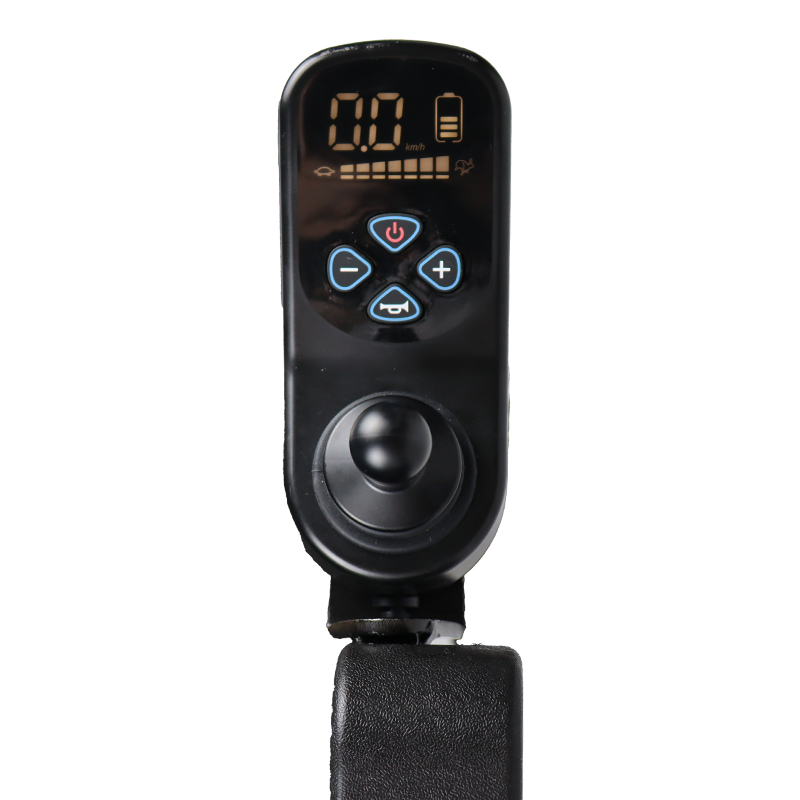

9. LED display controller.
10. Warranty:motor, battery, controller are one year. frame is 3 years.
Description:
AiSoleij M6005 Magenium folding electric wheelchair, a perfect choice for wheelchair traveling.
Features:
1.Two pieces 200W brushless motor.
2. Easy to fold, carry as a luggage on plane or on train.
4. Frame material: Magnesium alloy.
5. Removable lithium battery, easy to take and charge.
6. Anti-turning wheels design.
7. Lifted arms.
8. Front and rear total 4 torsional springs.
9. LED display controller.
10. Warranty:motor, battery, controller are one year. frame is 3 years.
Model No. | M6005 |
Frame material | Magnesium alloy |
Unfold size (L*W*H) | |
Max speed | 6Km/H |
Max Loading | 100kg |
Climbing slope | ≤12° |
Brushless Motor | 200W*2pcs |
Controller | Intelligent Controller |
Lithium battery | 24V10AH |
Charge | DC 24V 2AH |
Charging time | 6 hours |
Driving distance | |
Front wheels | 7” solid PU |
Rear wheels | 10” solid PU |

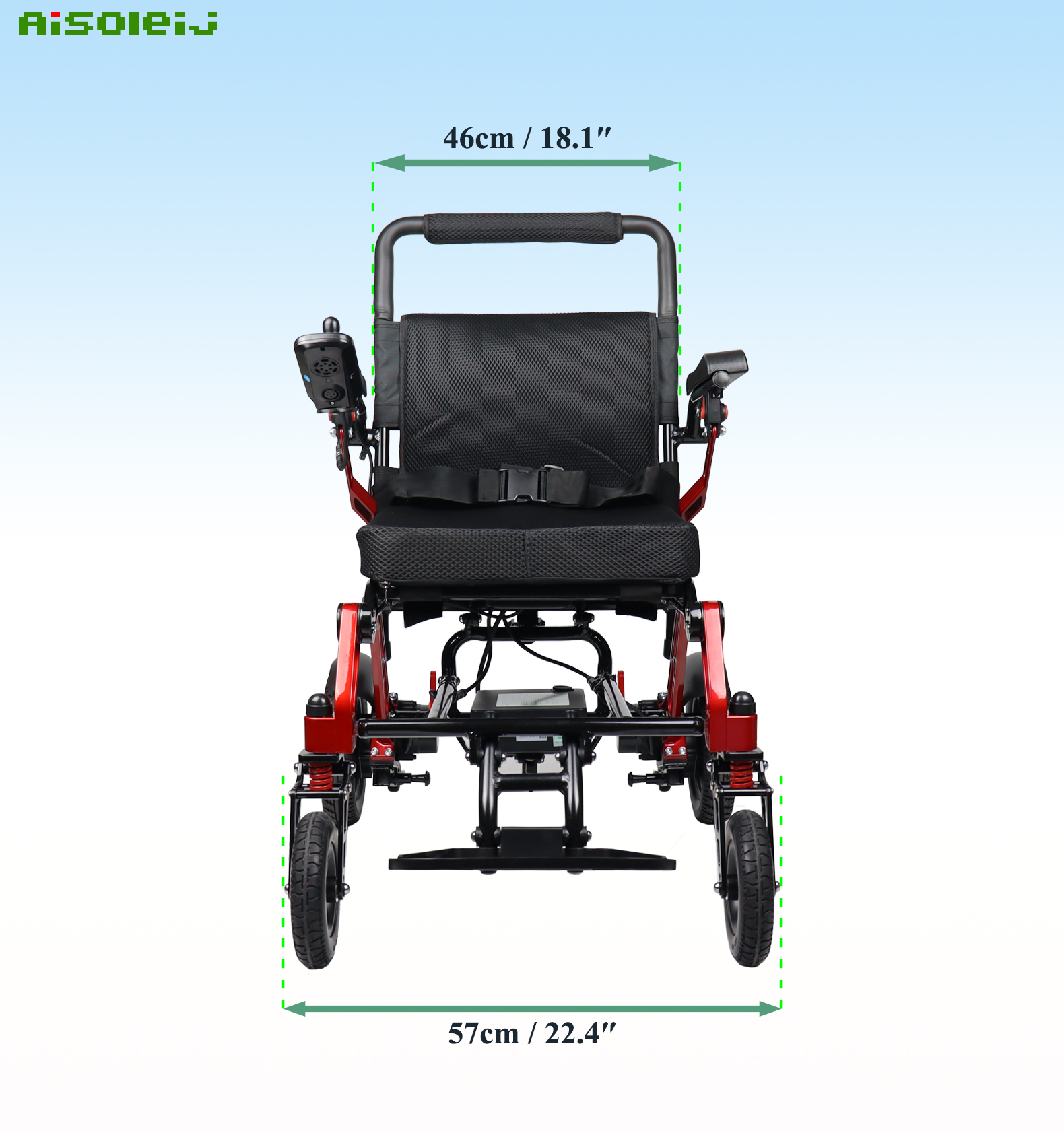

Seat width | 440mm |
Seat height | 480mm |
Seat depth | 440mm |
Backrest height | 560mm |
Turning radius | 850mm |
Obstacle crossing ability | 40mm |
Net weight without battery | 16.75kg |
Battery weight | 1.75kg |
Net weight with battery | 18.6kg |
Gross weight | 23kg |
Colour | Green/red |
Package box size | 67*35*78mm |
Model No. | M6005 |
Frame material | Magnesium alloy |
Unfold size (L*W*H) | |
Max speed | 6Km/H |
Max Loading | 100kg |
Climbing slope | ≤12° |
Brushless Motor | 200W*2pcs |
Controller | Intelligent Controller |
Lithium battery | 24V10AH |
Charge | DC 24V 2AH |
Charging time | 6 hours |
Driving distance | |
Front wheels | 7” solid PU |
Rear wheels | 10” solid PU |
Seat width | 440mm |
Seat height | 480mm |
Seat depth | 440mm |
Backrest height | 560mm |
Turning radius | 850mm |
Obstacle crossing ability | 40mm |
Net weight without battery | 16.75kg |
Battery weight | 1.75kg |
Net weight with battery | 18.6kg |
Gross weight | 23kg |
Colour | Green/red |
Package box size | 67*35*78mm |
The purchaser of this product is entitled to a limited warranty as offered by our company, and its affiliates on the following components and timeframes:
※ Chair frame: 3 years
※ Motors: 1 year
※ Controller and CPU system: 1 year
※ Battery: 6 months
※ Wear parts: 3 months
Includes tires, seat and backrest, armrests, and support straps.
This warranty is valid from the date of ex-factory and valid for the replacement of dysfunctional parts only. Any parts under warranty will be replaced and shipped to your door.
The purchaser of this product is entitled to a limited warranty as offered by our company, and its affiliates on the following components and timeframes:
※ Chair frame: 3 years
※ Motors: 1 year
※ Controller and CPU system: 1 year
※ Battery: 6 months
※ Wear parts: 3 months
Includes tires, seat and backrest, armrests, and support straps.
This warranty is valid from the date of ex-factory and valid for the replacement of dysfunctional parts only. Any parts under warranty will be replaced and shipped to your door.
