AZ02
Aisoleij

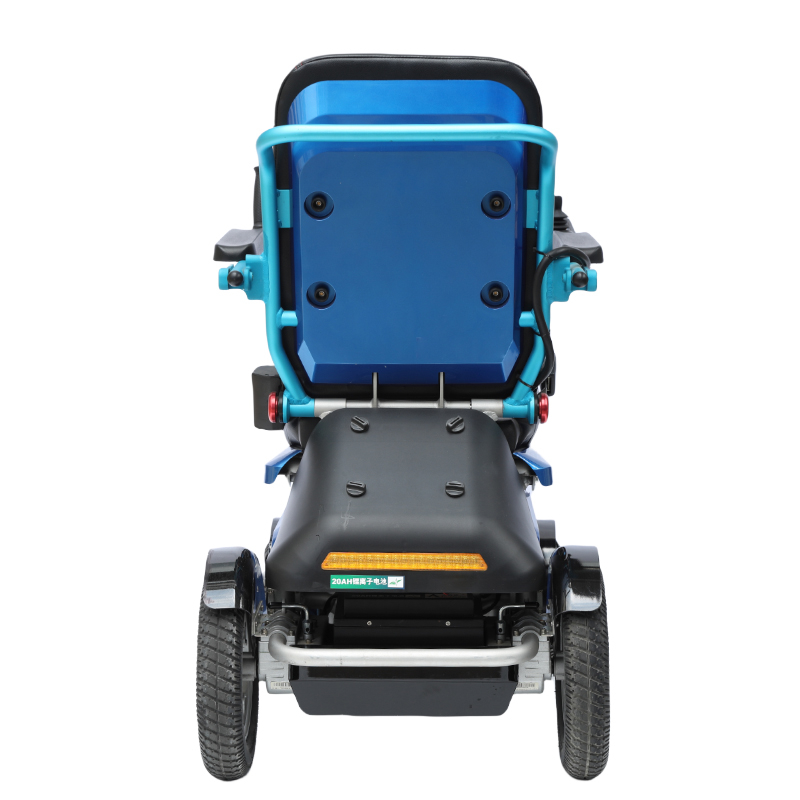

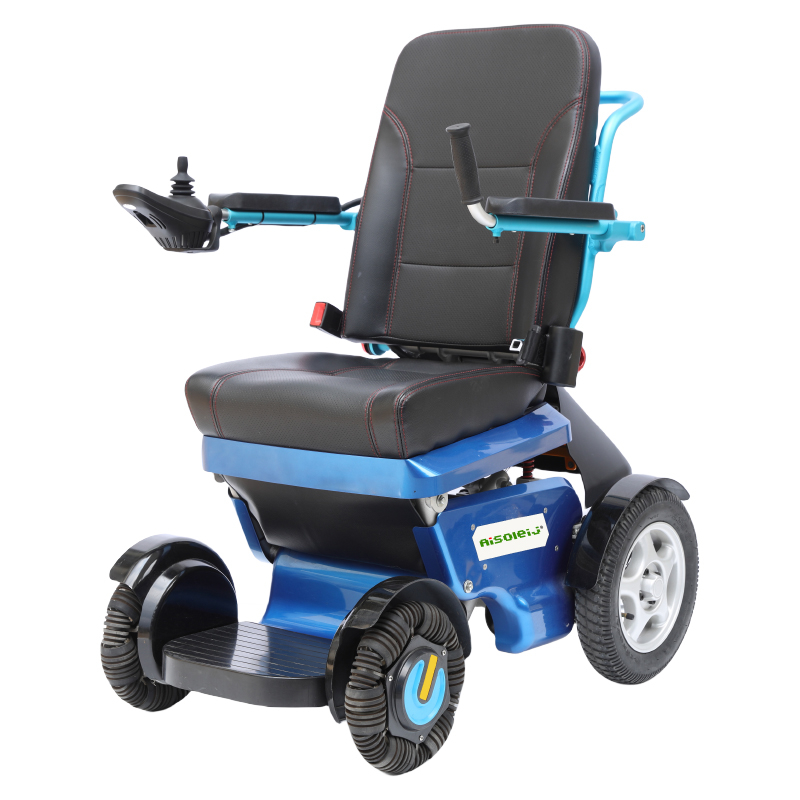

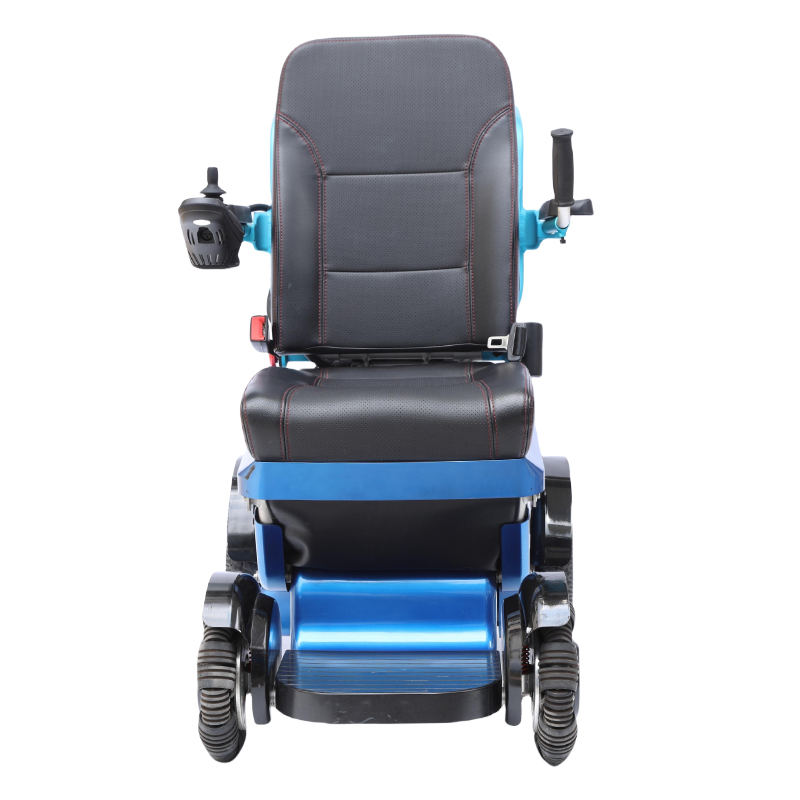

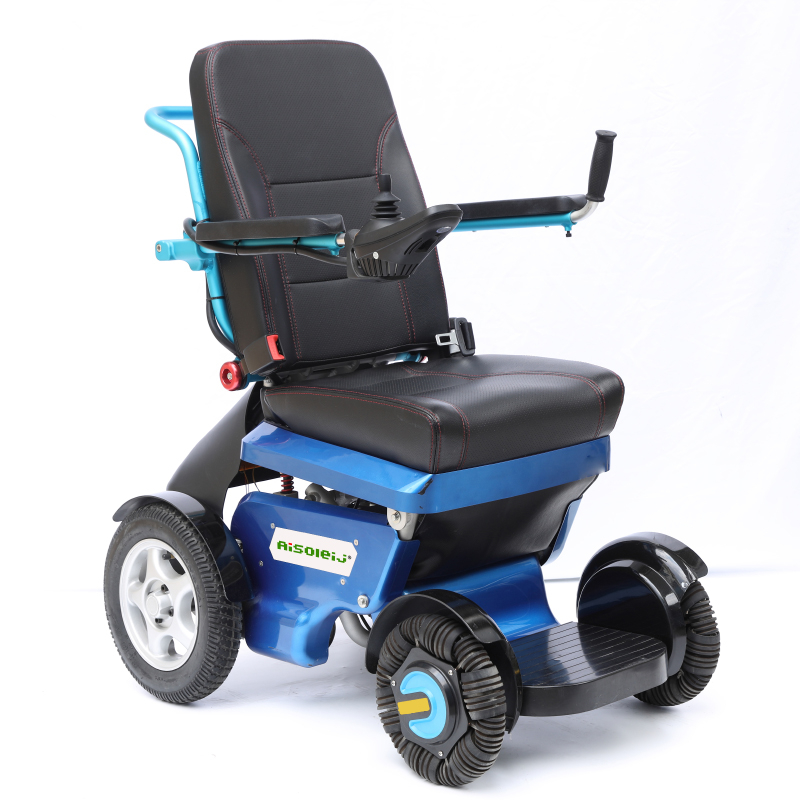

AZ02 Stand Assisted Electric Wheelchair
Advantages:

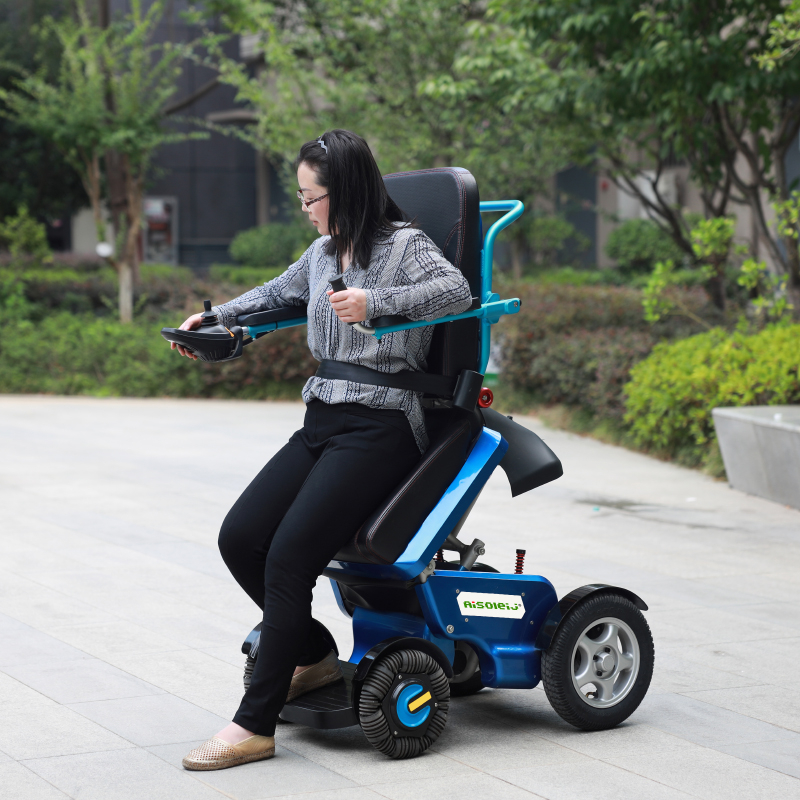

1. Sitting/Standing assistant function,assist people need to sit and stand.

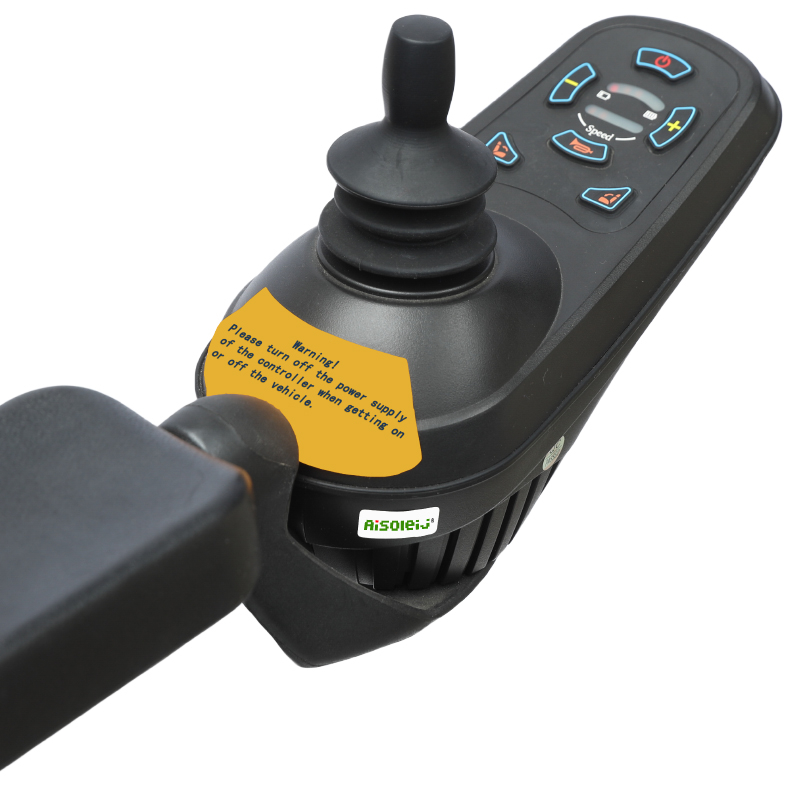

2. Blue tooth remote control the chair to move.
3. McNham front wheel for 360°turn.
4. Car grade seat cushion, safe belt, tail light.
Model: | AZ02 |
Frame material: | 6061 Aluminum alloy |
Chair size: | 930*620*1080mm |
Standing size | 880*620*1380mm |
Seat height: | 450mm |
Seat width: | 440mm |
Seat depth: | 450mm |
Max load: | 130kg |
Max speed: | 6km/h |
Front wheel: | 10 inch Oriented McNham wheel*2pcs |
Reat wheel: | 13 inch air-filled wheel |
Motor: | 250W brush Suoyang motor*2pcs |
Battery: | 24V/20AH lithium battery |
Controller: | Intelligent controller |
Brake system: | electromagnetic brake |
Climb slop: | ≤8° |
obstacle crossing height： | ＜50mm |
Turning radius: | 800mm |
Charger: | 24V3A |
Charging time: | 7 hours |
Driving distance: | 20km |
Chair net weight with battery: | 60kg |
Polywood case size: | 1040*690*900mm |
Gross weight: | 86kg |
Accessories: | Leather seat, safe belt, turning direction lights, blue tooth remote. |
Warranty time: | Motor,battery and controller are one year; frame is 3 years. |
