BBR
AiSoleij

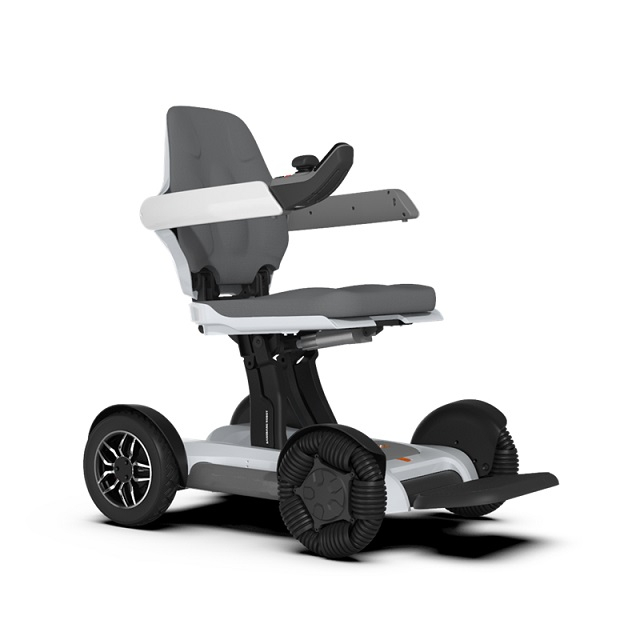

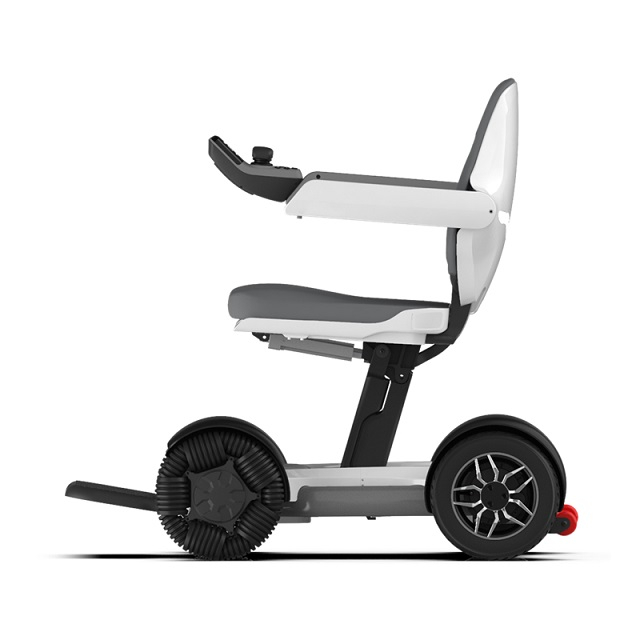

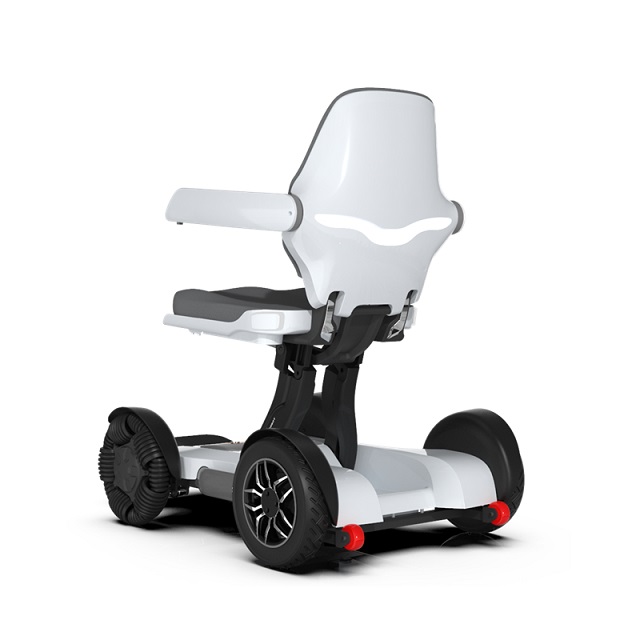

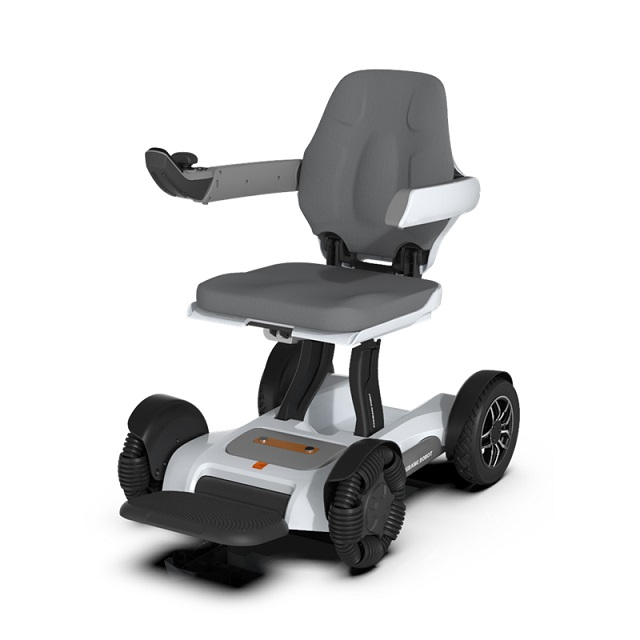

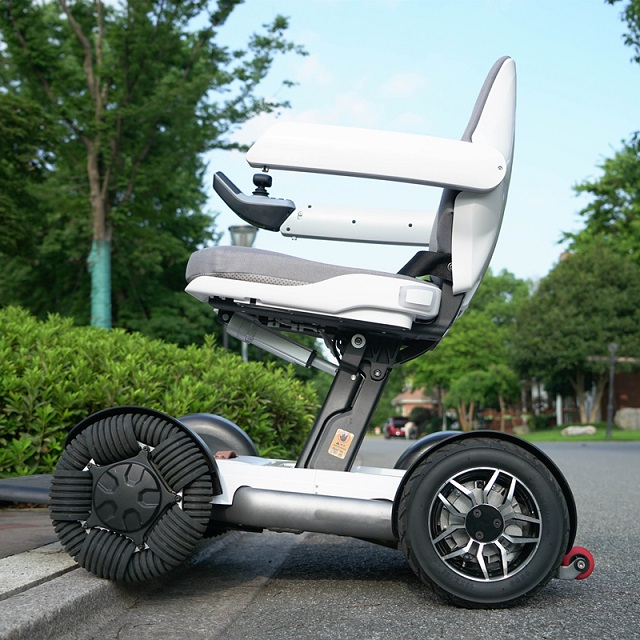

BBR Smart Robot Electric Wheelchair Futures:
1. APP remote control chair.

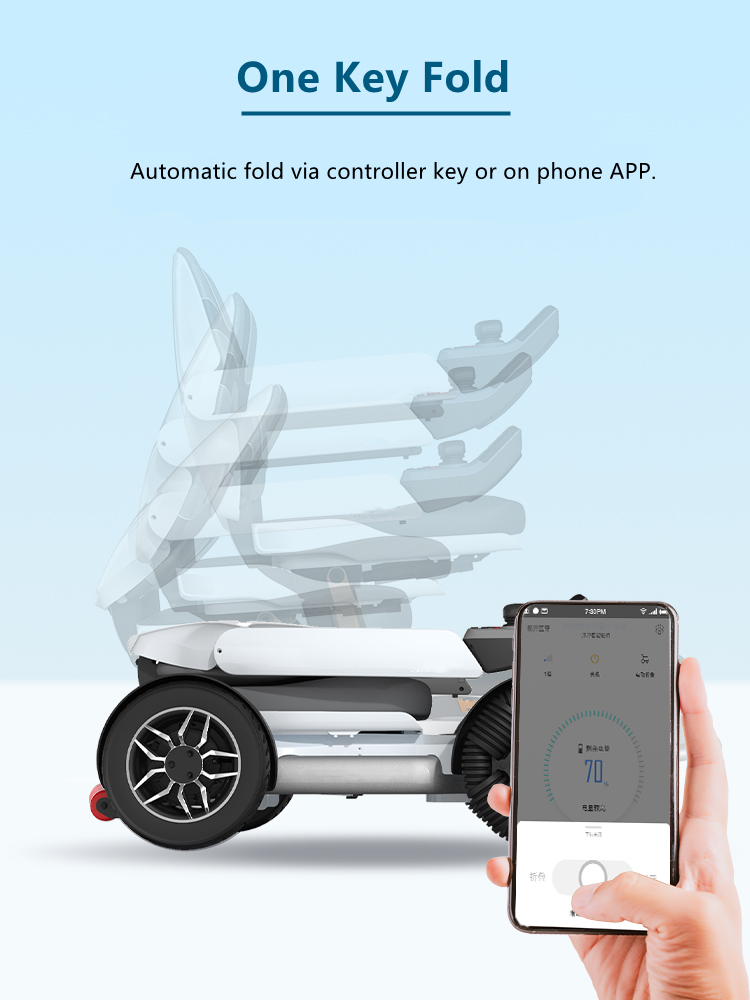

2. Automatic folding and expending.

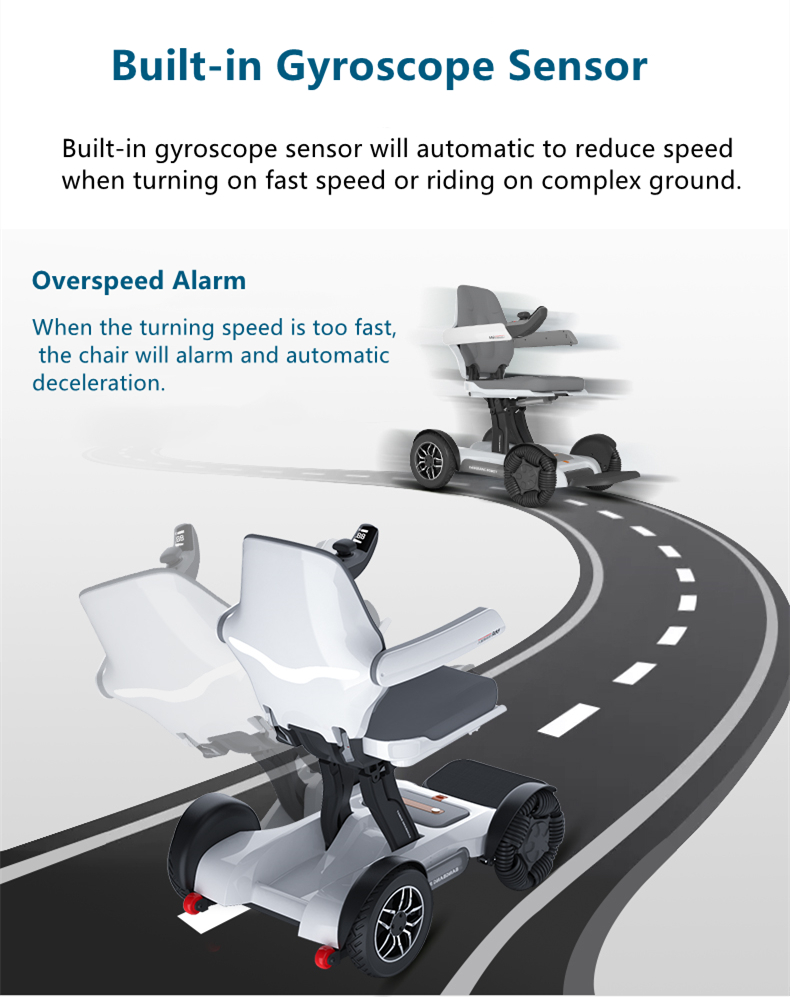

3. Built-in gyroscope sensor, will automatic to reduce speed when turning on fast speed or riding on complex ground.

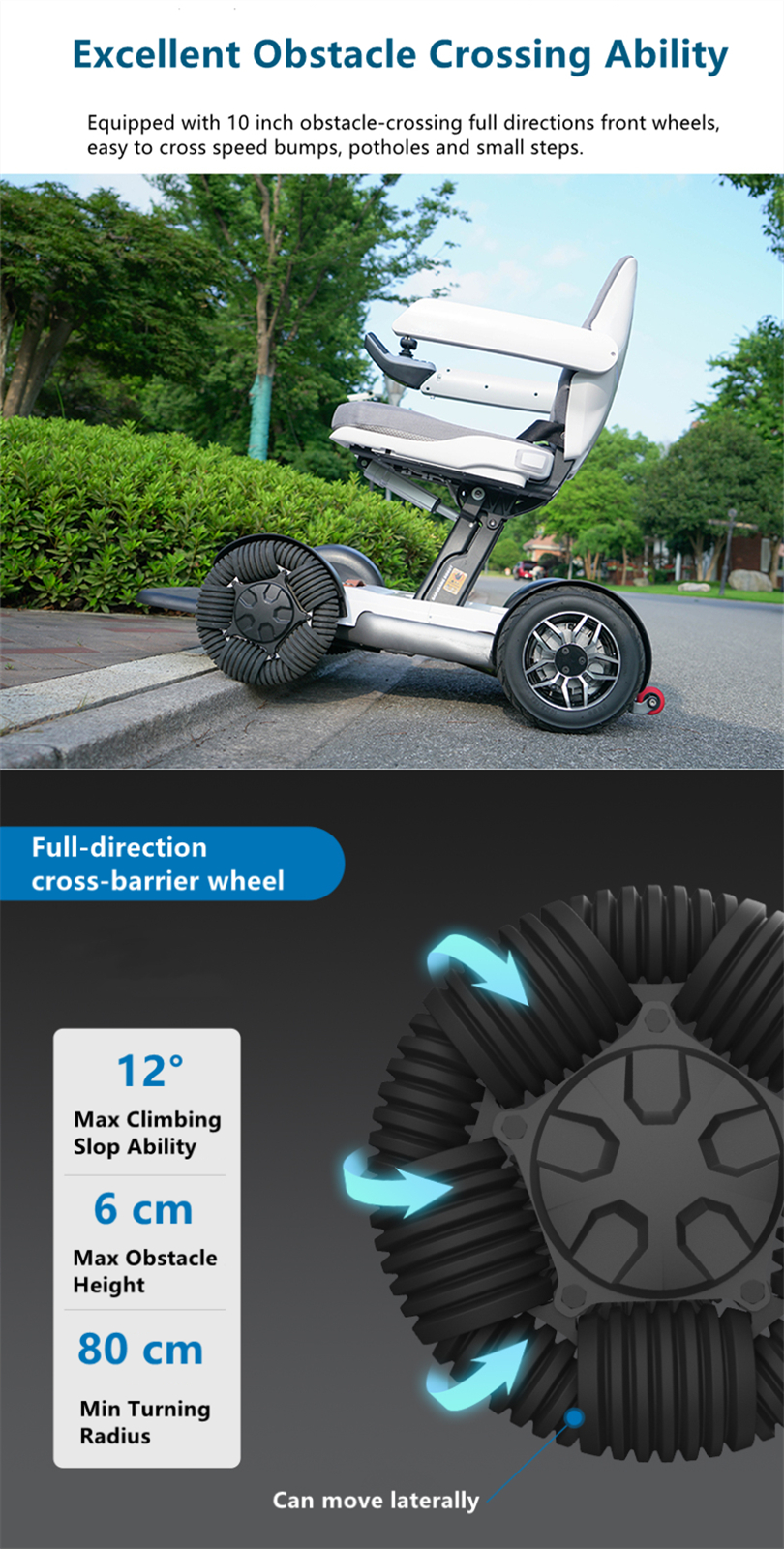

4. Equipped with 10 inch mcnamu omnidirectional front wheel, easy to cross speed bumps, potholes and small steps.

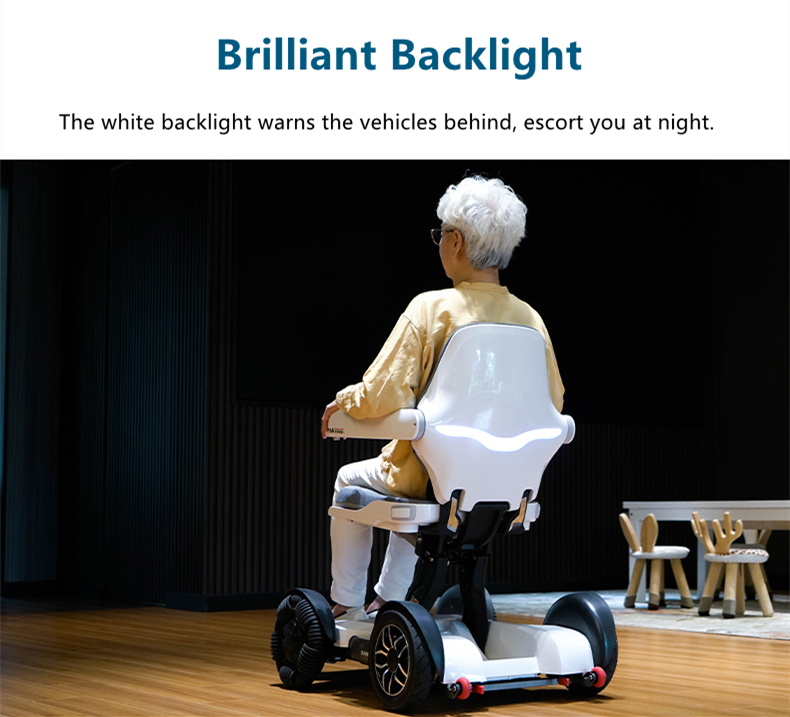

5. Brilliant backlight.
6. Car grade using lithium battery.

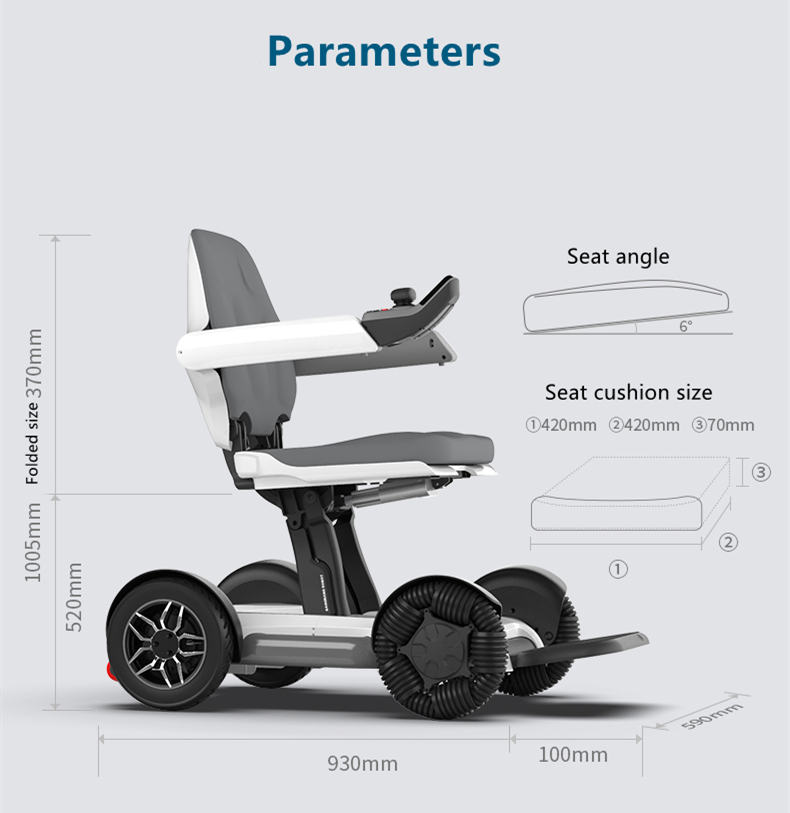

Model | BBR |
Expend size | 1070*625*930mm |

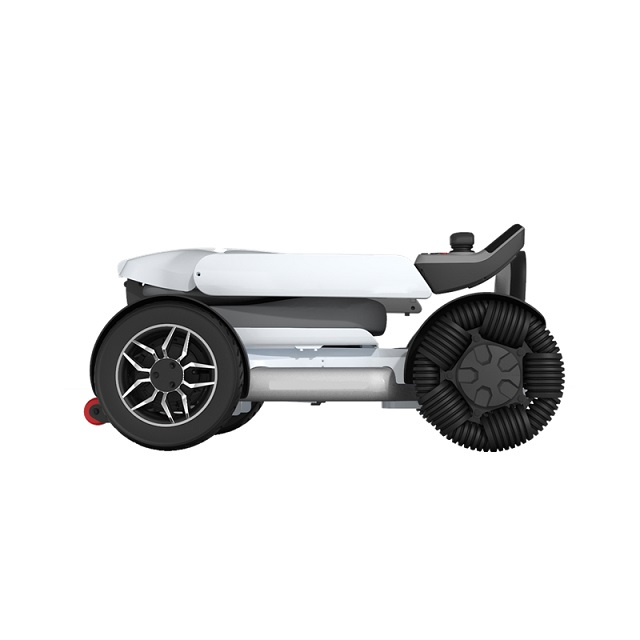

Folded size | 890*625*400mm |
Load capacity | 120kg |
User’s height range | 145~190cm |

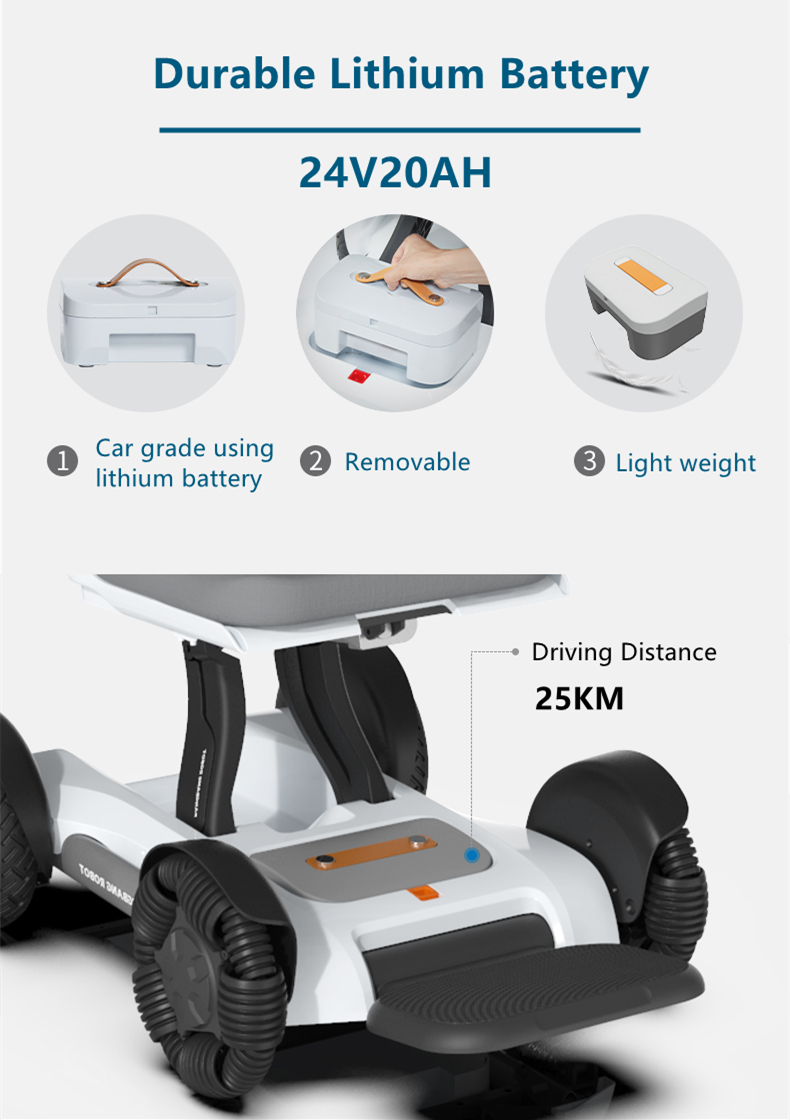

Ternary Lithium battery | 24V20AH |
Driving distance | 25KM |
Max speed | 6km/h |
Obstacle crossing height | 60mm |
Ditch crossing width | 100mm |
Chassis clearance | 70mm |
Minimum chassis height | 50mm |
Climb slope | ≤12° |
Minimum turning radius | 800mm |
Vehicle noise | ≤62DB |
Waterproof grade | IPX4 |
Seat cushion | Memory sponge cushion |

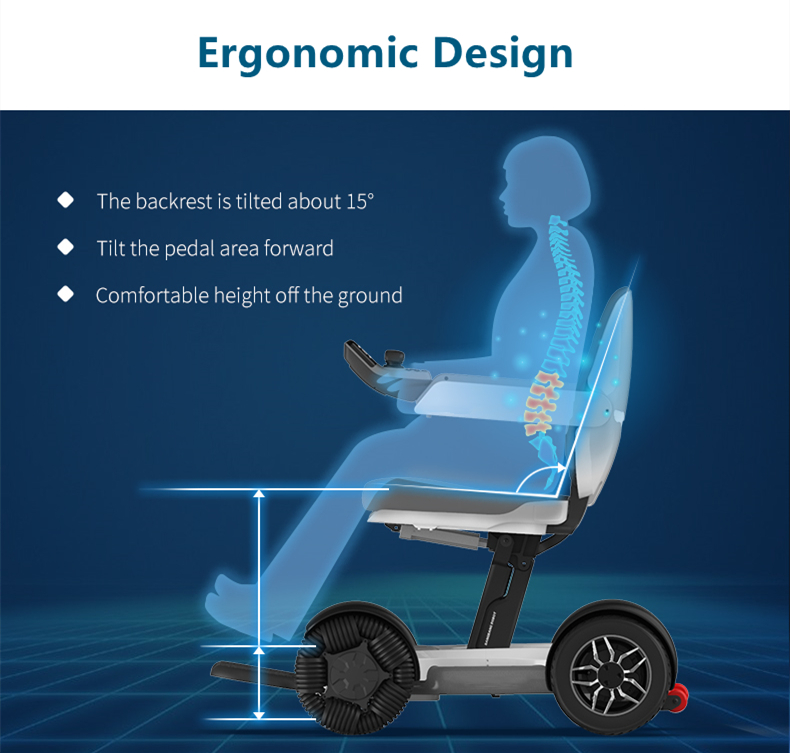

Seat height | 575mm |
Seat width | 420mm |
Seat depth | 420mm |
Front wheel | 10 inch mcnamu omnidirectional wheel |
Rear wheel | 10 inch pneumatic tire - toothed tire |
Power motor | Brush motor 200W*2PCS |

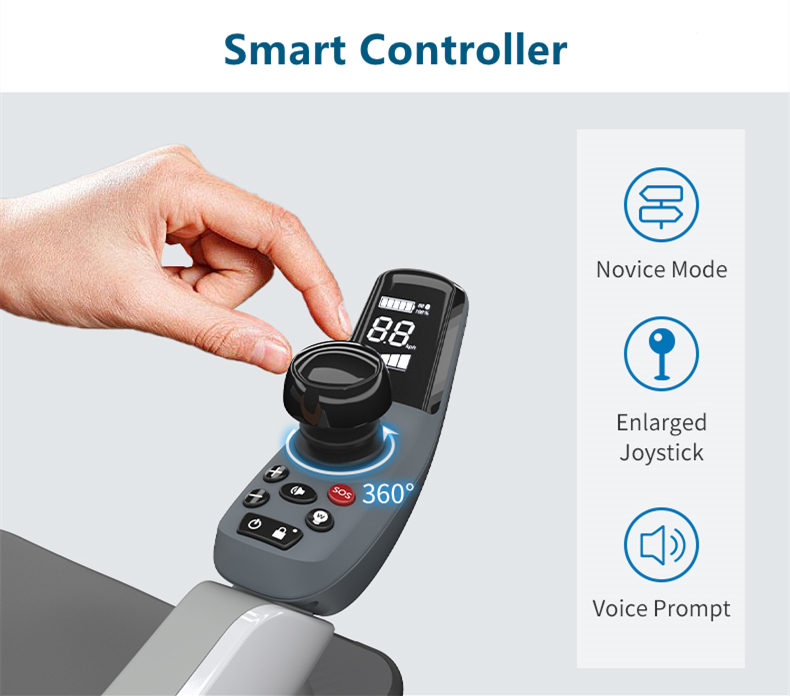

controller | Smart controller |

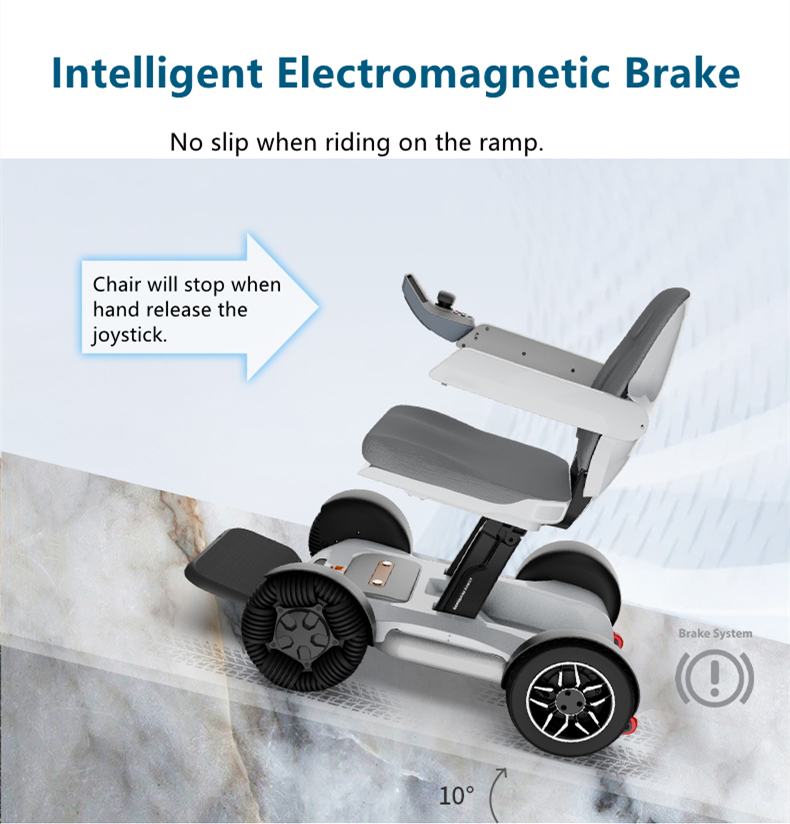

Brake | electromagnetic brake |
Safety belt | ABS |
Frame material | Aluminum+ABS shell |
Joystick controller telescopic length | √ |
Bluetooth remote upgrade | √ |
Intelligent AI voice | √ |
Seat tail lamps | √ |
Active terrain adaptation downshift function | √ |
Backrest atmosphere lamp | √ |
Novice mode | √ |
APP remote control | √ |
Cruise control | √ |
net weight without battery | 39.7kg |
Battery net weight | 3.5kg |
Total net weight | 43.2kg |
Gross weight | 58kg |
Package size | 1010*785*430mm |
