DB09
AiSolrij

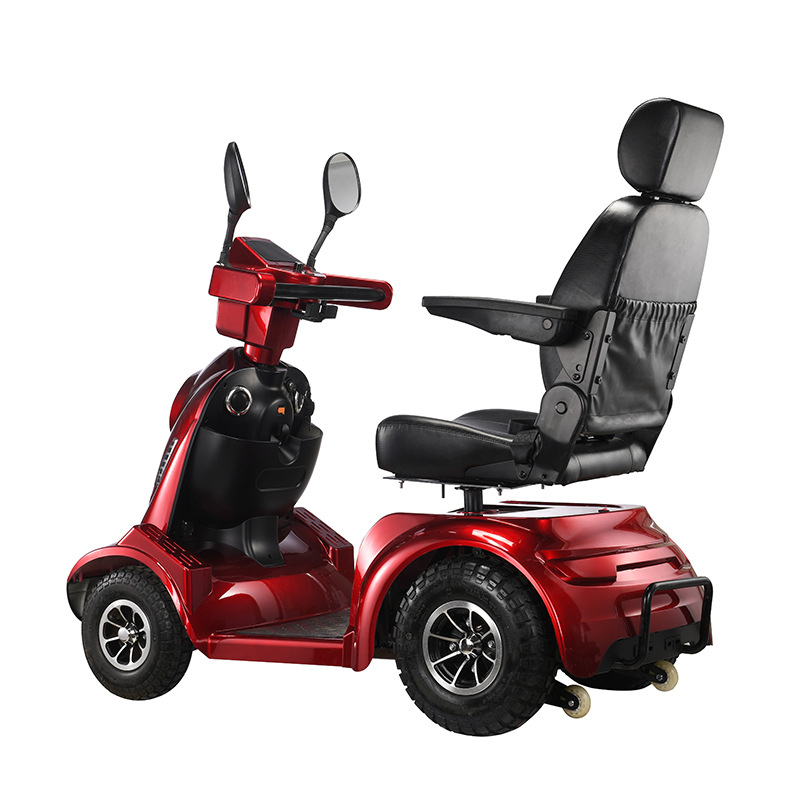

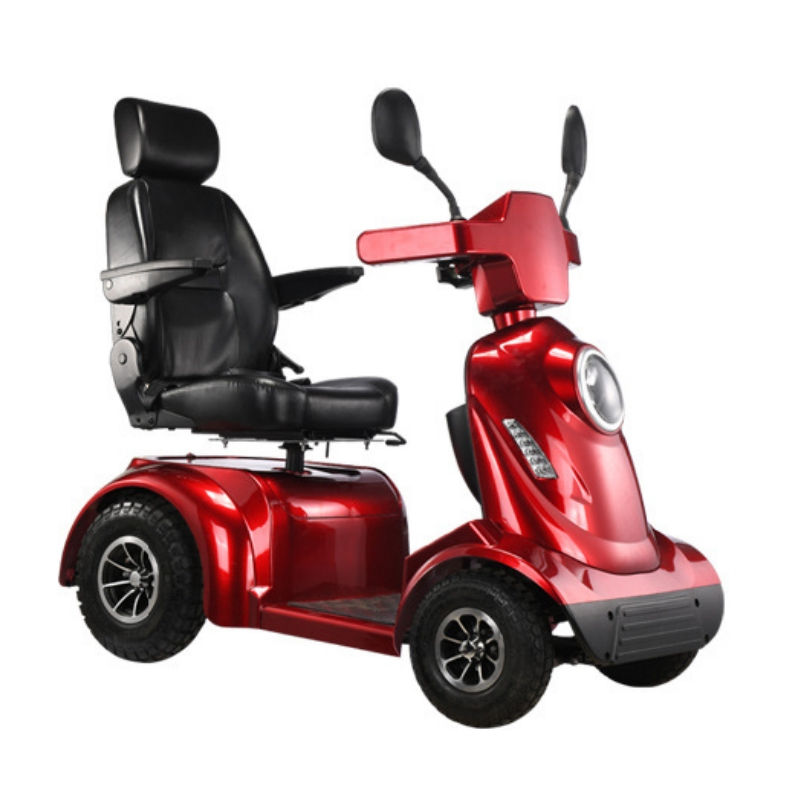

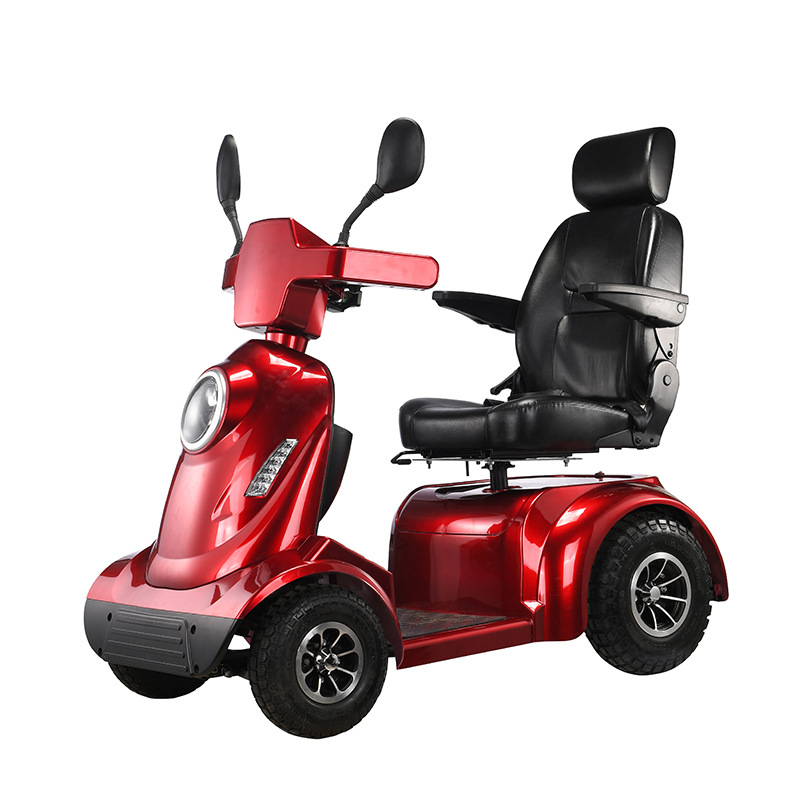

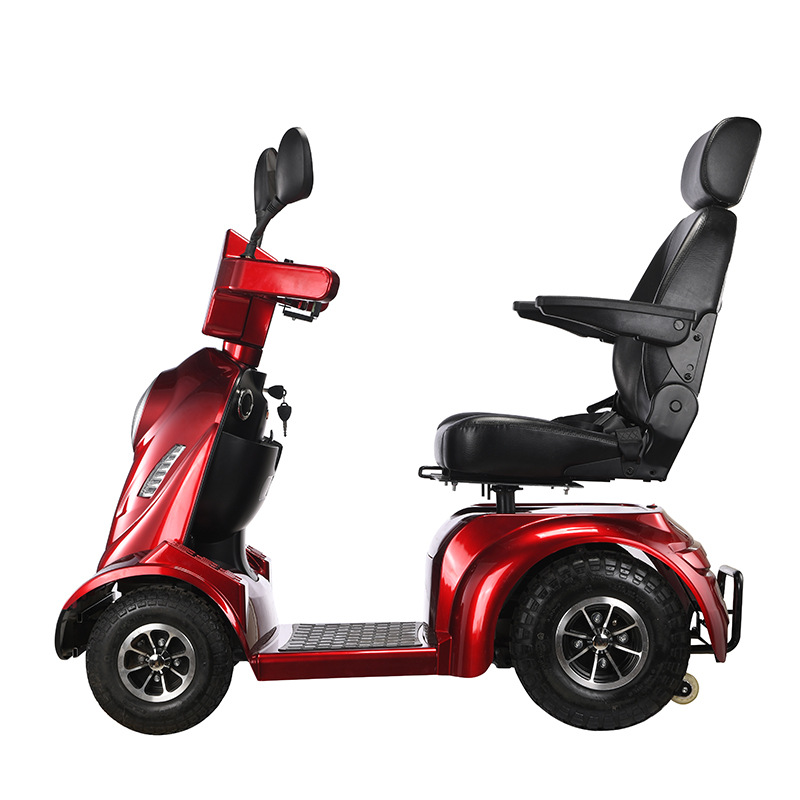

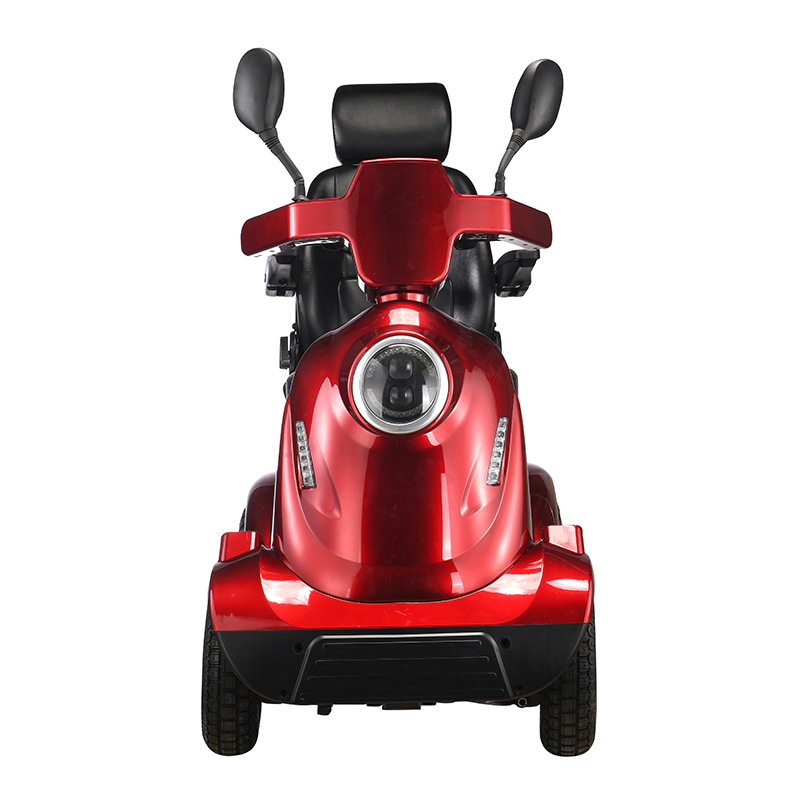

DB09 4 Wheels Handicap Electric Mobility Scooter Futures:
1.Seat foldable and removable, 360°rotation seat,adjustable seat distance.
2.Armrest can be lift.
3. Left and right turn signals and emergency double flash lights; LED front light.
4.Quality front bumper and back bumper bar.
5. Anti-tip wheels for user's safe.
6.With blue-tooth player.
Specifications:
Model | DB09 |
Dimensions | 1390*655*1300mm |
motor | 24V 800W |
Controller | 24V 120A |
Battery | 24V 20AH *2( lead-acid ) |
max load capacity | 180kg |
Speed | 0-8km/h |
Ground Clearance | 110mm |
Front wheel: | PU solid Φ 305*95mm （12 inch） |
Rear wheel | PU solid Φ350*100mm (14 inch) |
Max Grade Ability | 12° |
Brake | Electromagnetic brake system |
Running distance | 35km |
Charger | DC24V 5A |
Net weight | 90kg |
Gross weight | 100kg |
Factory color | red,blue,silver |
Packaging size | 1430*790*1070mm |
