DB08
AiSoleij

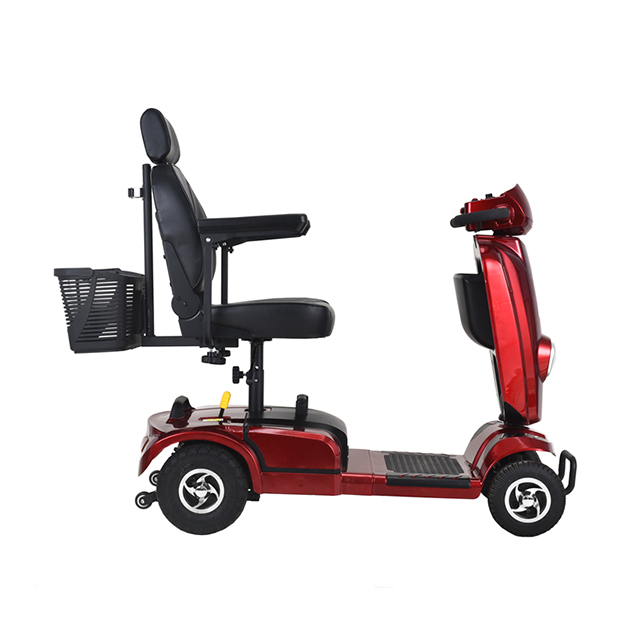

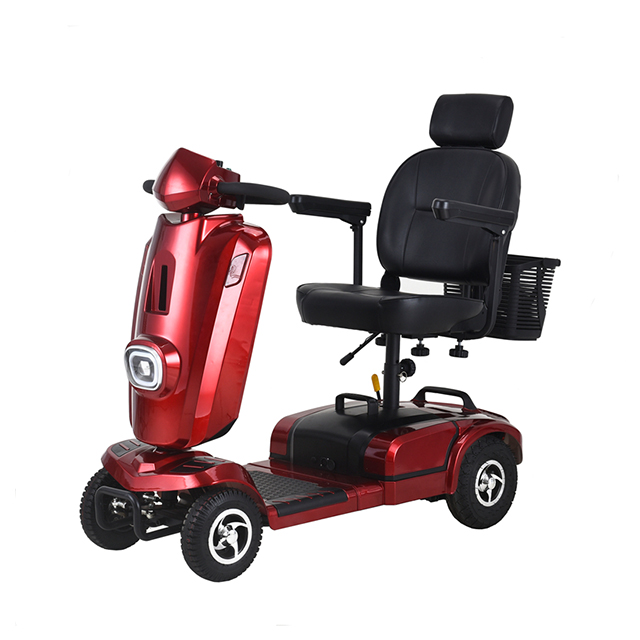

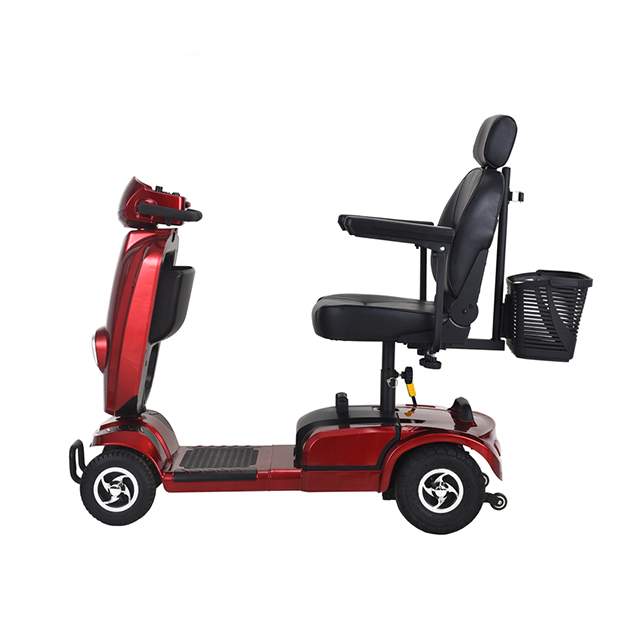

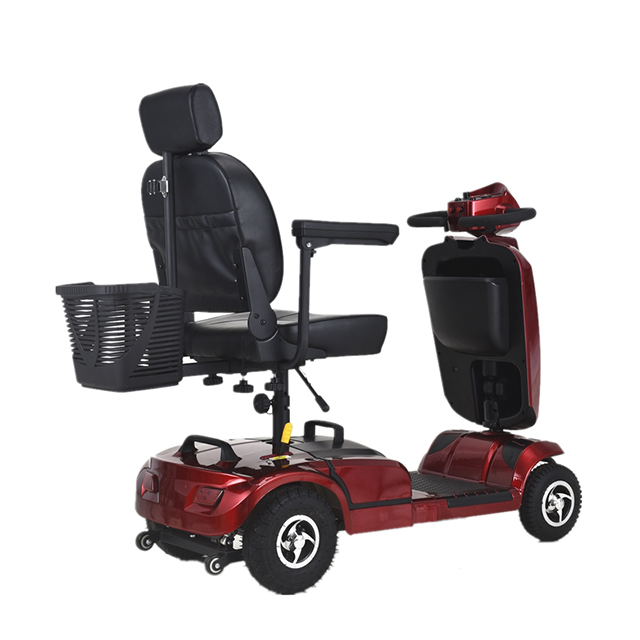

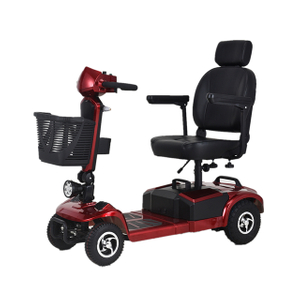

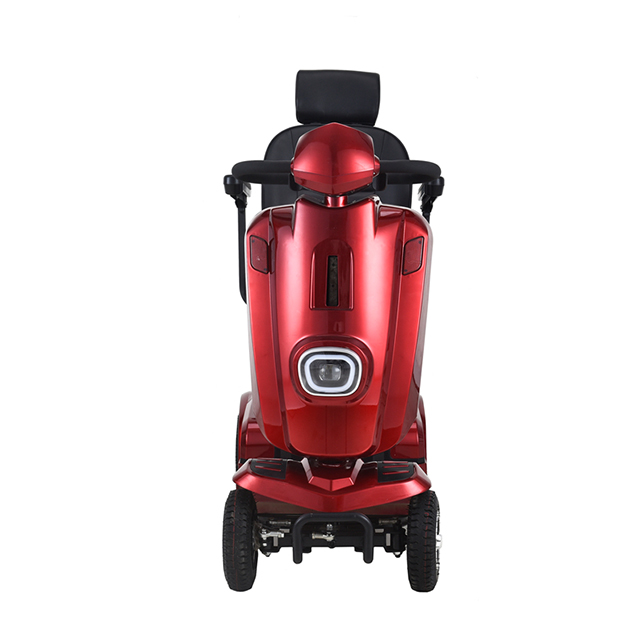

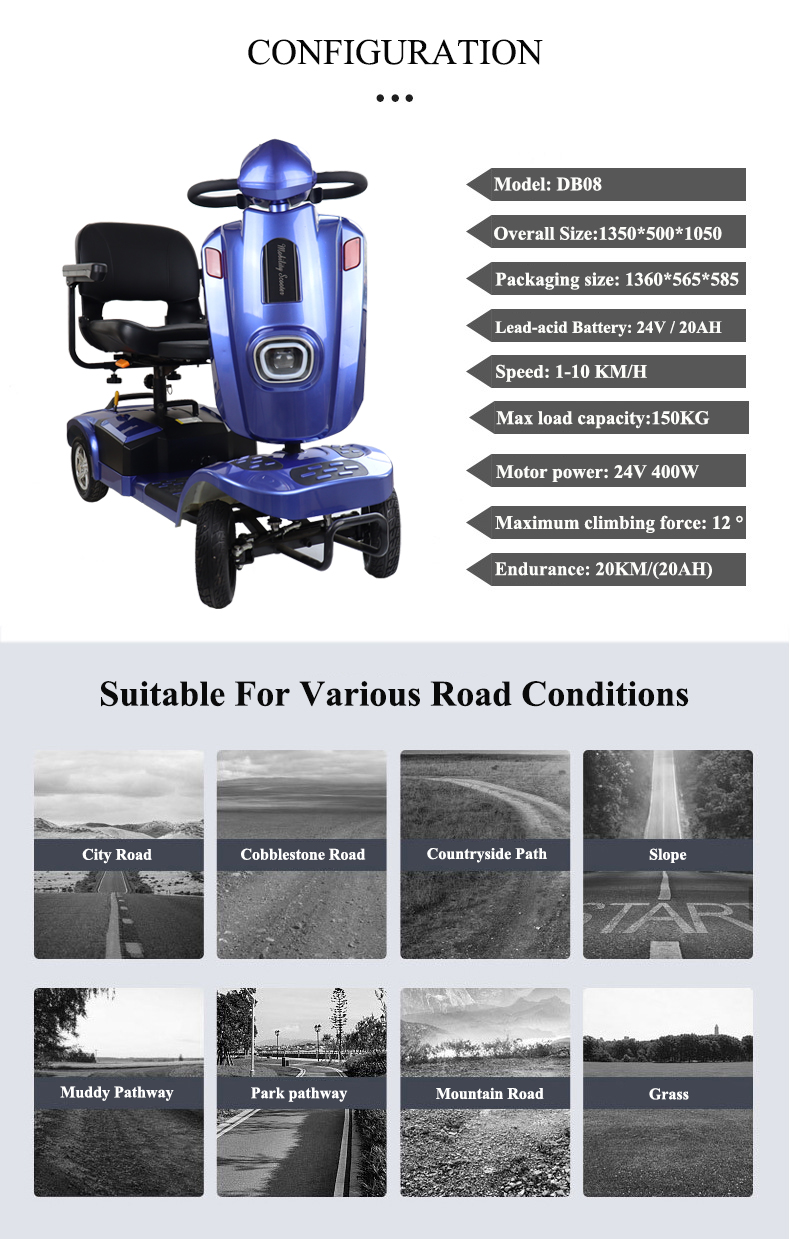

DB08 electric mobility scooter parameter:

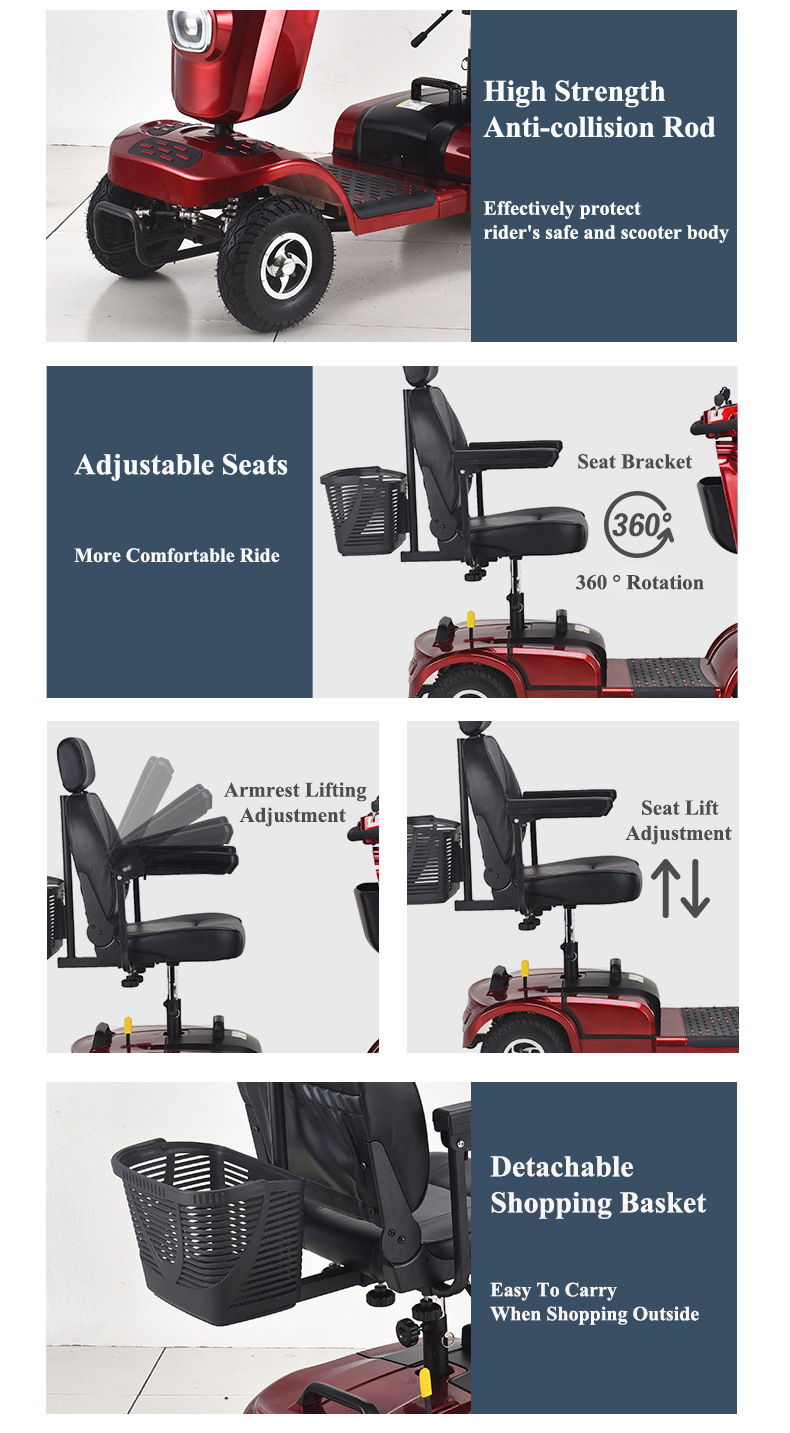

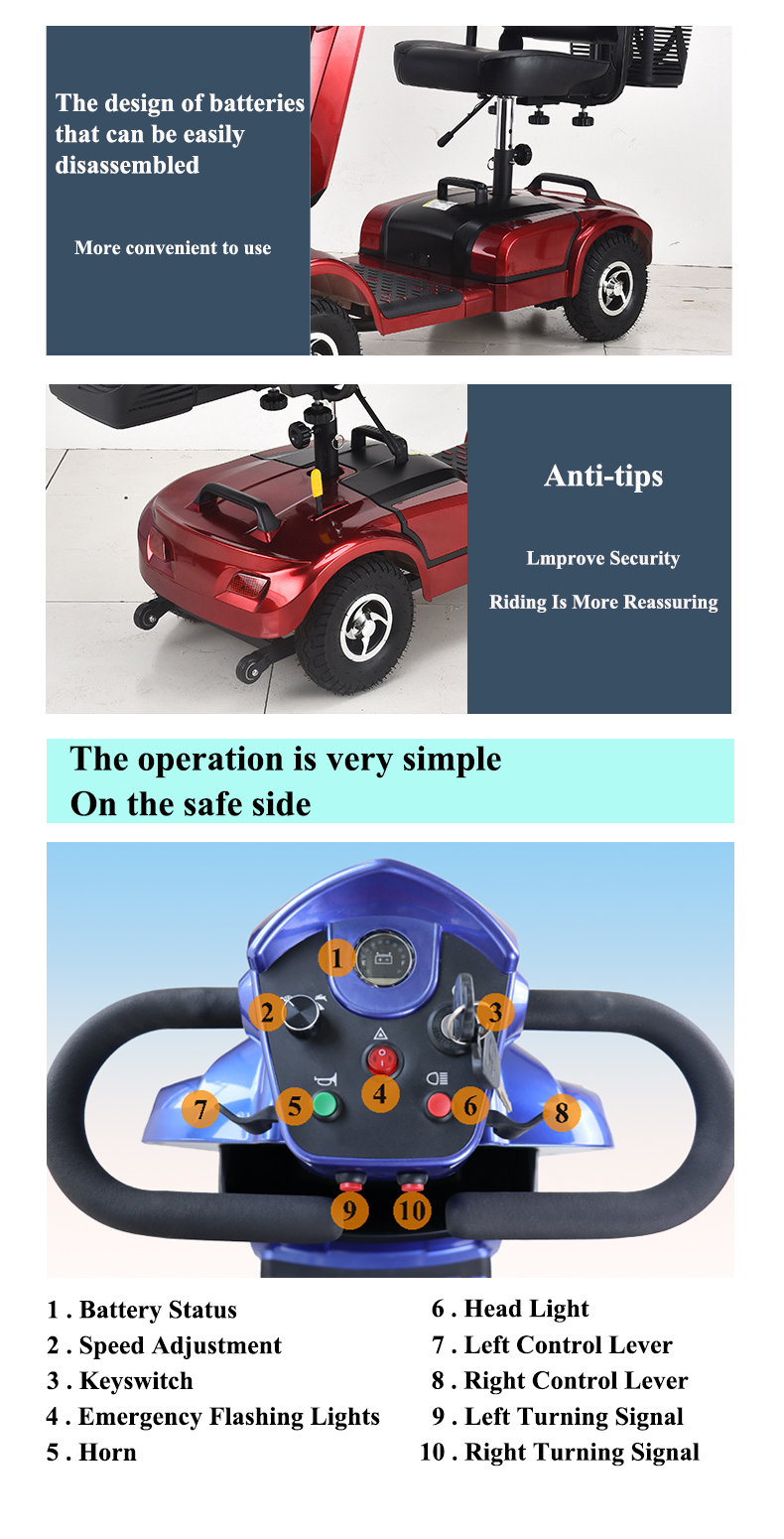

1.Foldable, removable, 360°rotation seat,adjustable seat width.
2.Armrest can be lift.
3. Adjustable speed and direction.
4. Removable battery, more convenient charging up and down stairs.
5. PU foam hand, making the operation more comfortable.
6.Quality front bumper and back bumper bar.
7. Anti-tip wheels for user's safe.
Model | DB08 |
Frame material | Iron |
Dimensions | 1340*520*1150mm |
motor | 24V 300W |
Controller | 24V 50A |
Battery | 24V 20AH ( lead-acid ) |
max load capacity | 150kg |
Speed | 0-10km/h |
Ground Clearance | 95mm |
Turning radius | 1600mm |
Front wheel | PU solid 8.5” (Φ 218*74mm) |
Rear wheel | PU solid 10” |
Max Grade Ability | 12° |
Brake | Electromagnetic brake system |
Running distance | 20km |
Charger | DC24V 2A |
Net weight | 65kg |
Gross weight | 75kg |
Factory color | red |
Packaging size | 1315*585*565mm |
Q'TY in container | 67PCS/20ft ,144PCS/40HQ |
