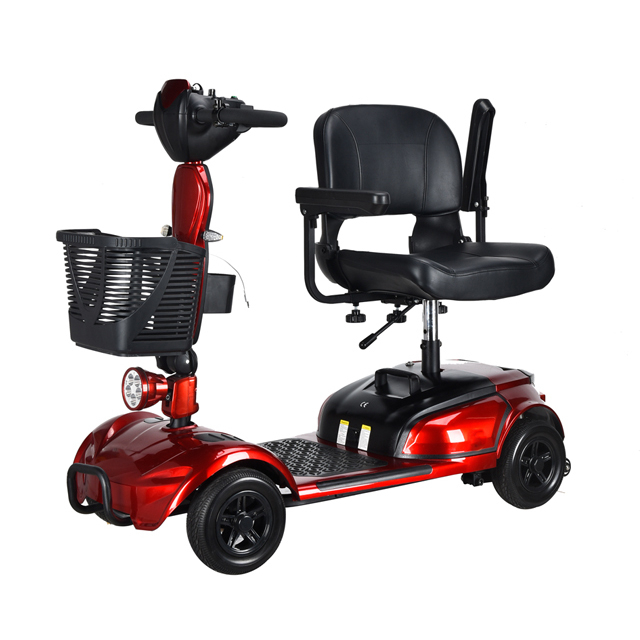

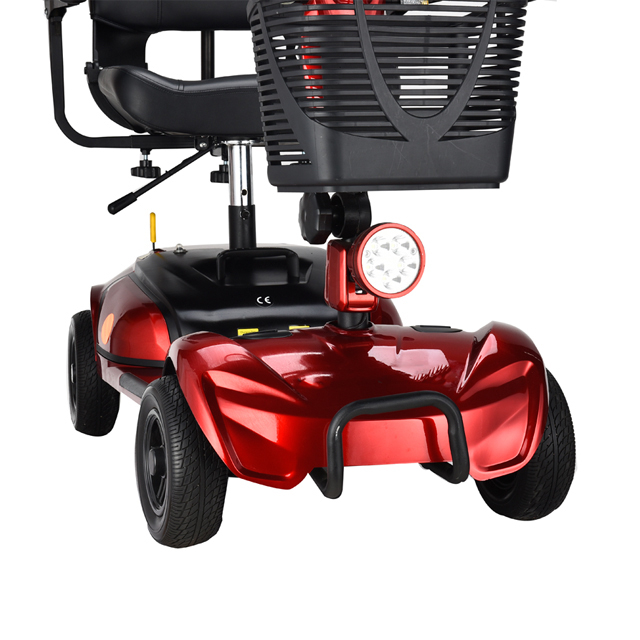

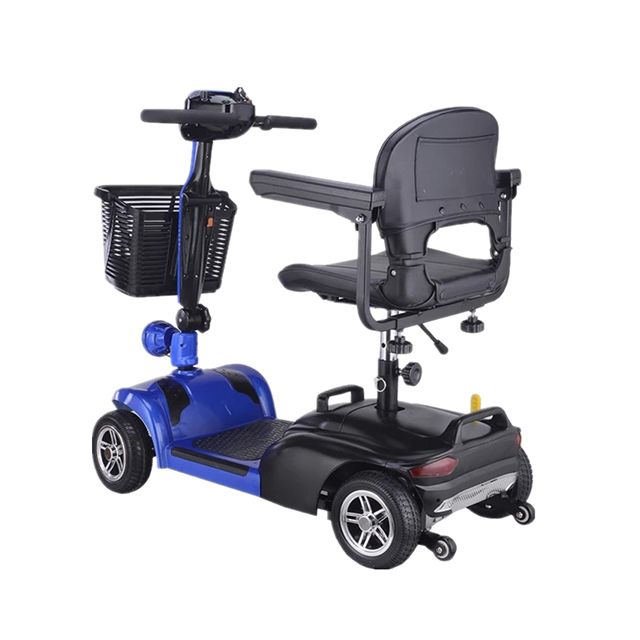

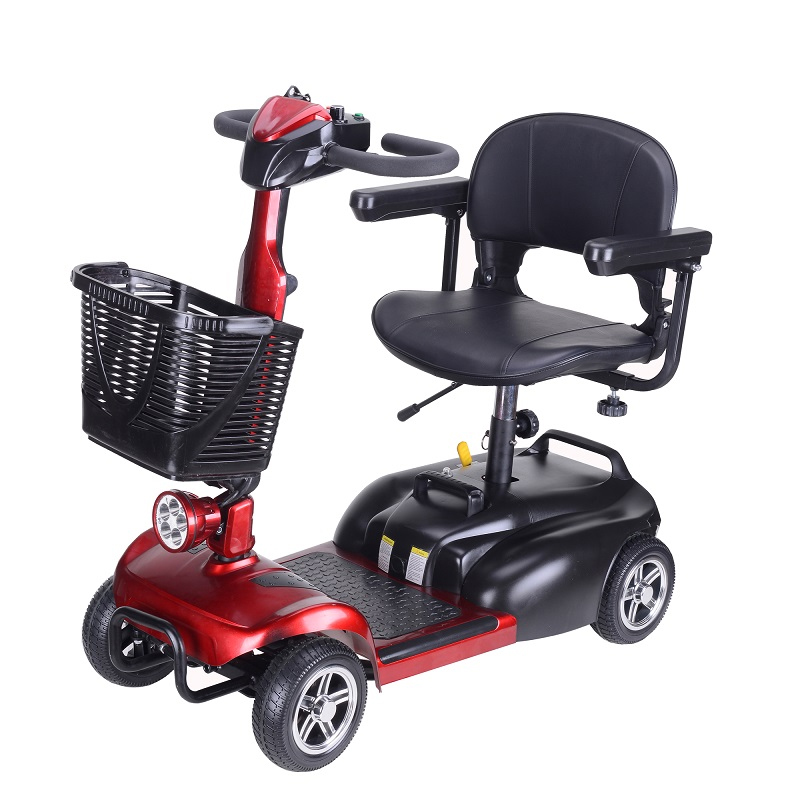

DB01 Electric Mobility Scooter

Availability:
Quantity:


DB01 electric mobility scooter parameter:

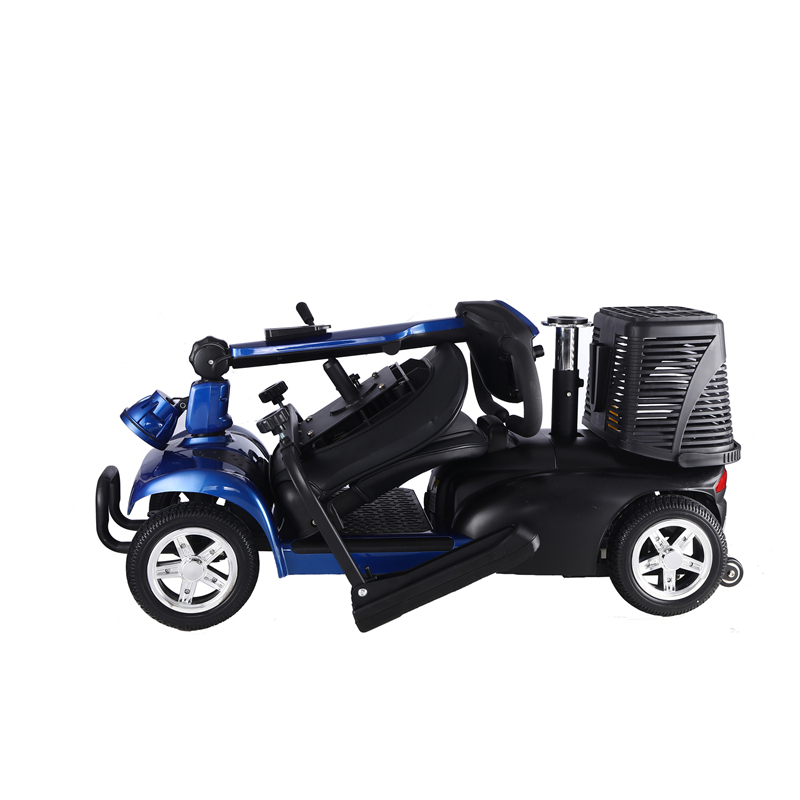

1.Foldable, removable, 360°rotation seat,adjustable seat width.

2.Armrest can be lift.

3. Adjustable speed and direction.

4. Removable battery, more convenient charging up and down stairs.

5. PU foam hand, making the operation more comfortable.

6.Quality front bumper and back bumper bar.

7. Anti-tip wheels for user's safe.



Model

DB01

Dimensions

108*49*94cm

motor

24v  250w

Controller

24V 45A

Battery

24V 12AH ( lead-acid )/24V 20AH

max load capacity

120kg

Speed

0-8km/h

Ground Clearance

88mm

Tyres:

PU solid 8” (Φ 198*65mm)

Max Grade Ability

12°

Brake

Electromagnetic brake system

Running distance

12AH-16km/20AH-25km

Charger

DC24V 2A

Net weight

44kg

Gross weight

50kg

Factory color

red,blue,silver

Packaging size

116*52*56cm

Q'TY in container

80PCS/20ft ,220PCS/40ft






Option battery:

20AH lead-acid battery:+ $35

13AH lithium battery:+$45

20AH lithium battery:+$80



Replace PG controller + USD$40/unit



1.11.21.31.4

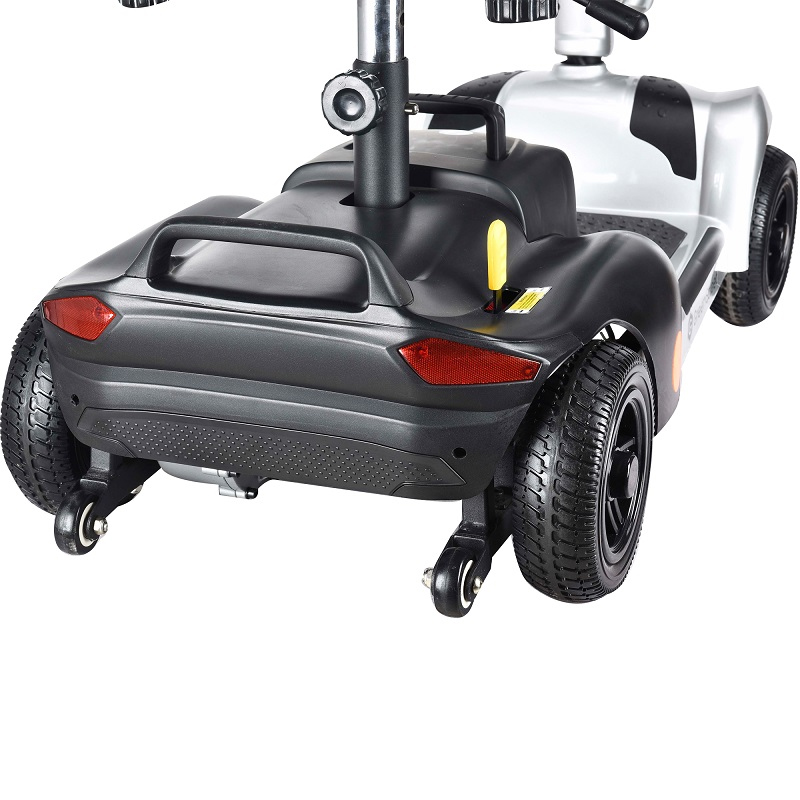

Back anti-tips


1.5

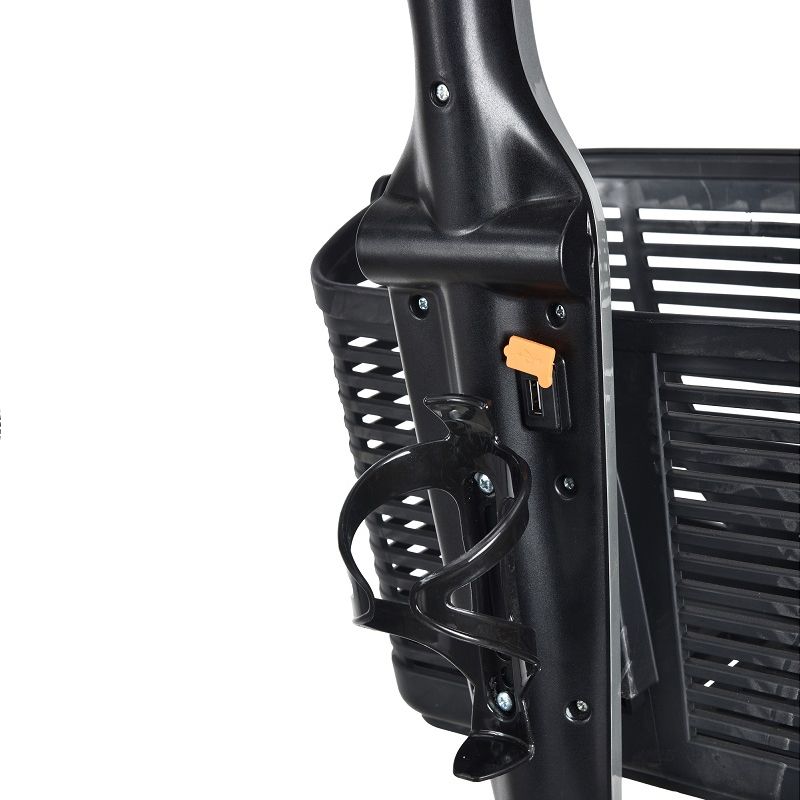

cup holder and USB port

1.7

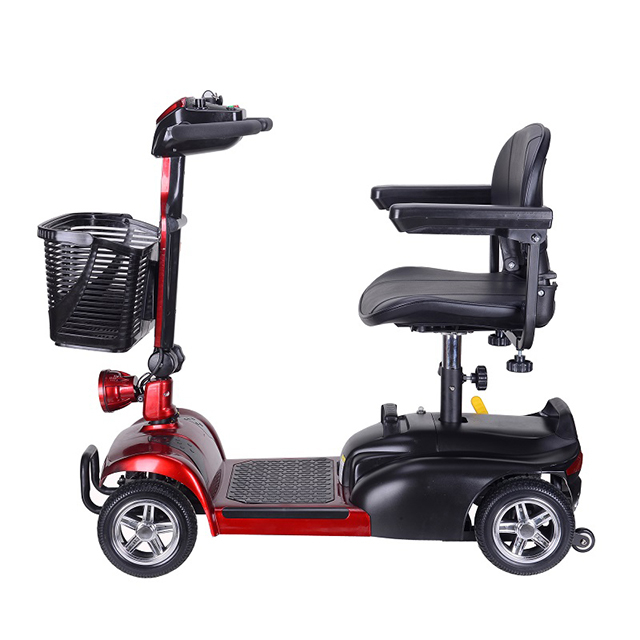

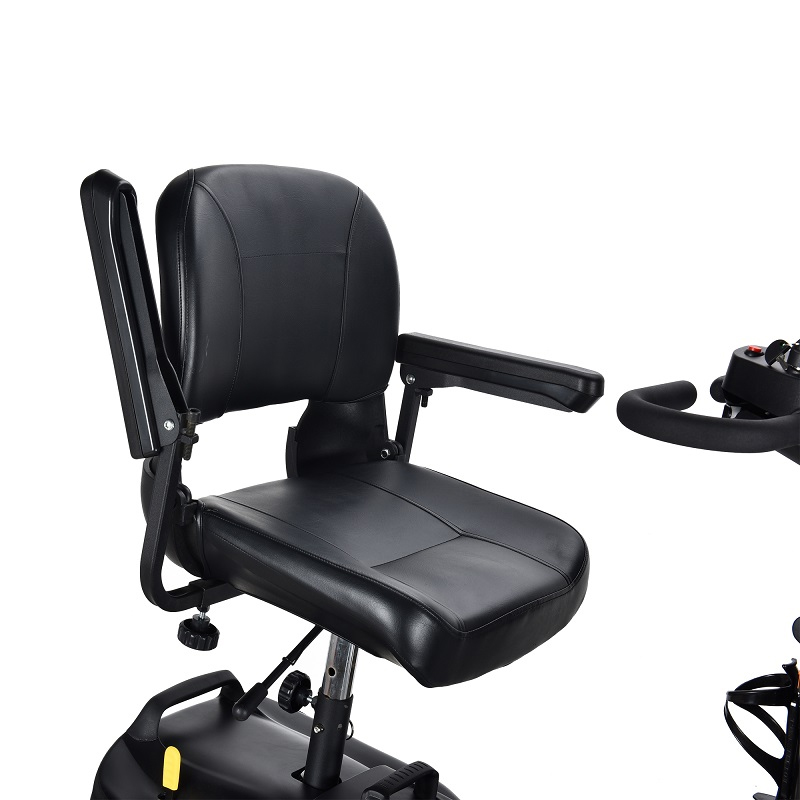

Lifted arm and 360°rotation seat

1.6

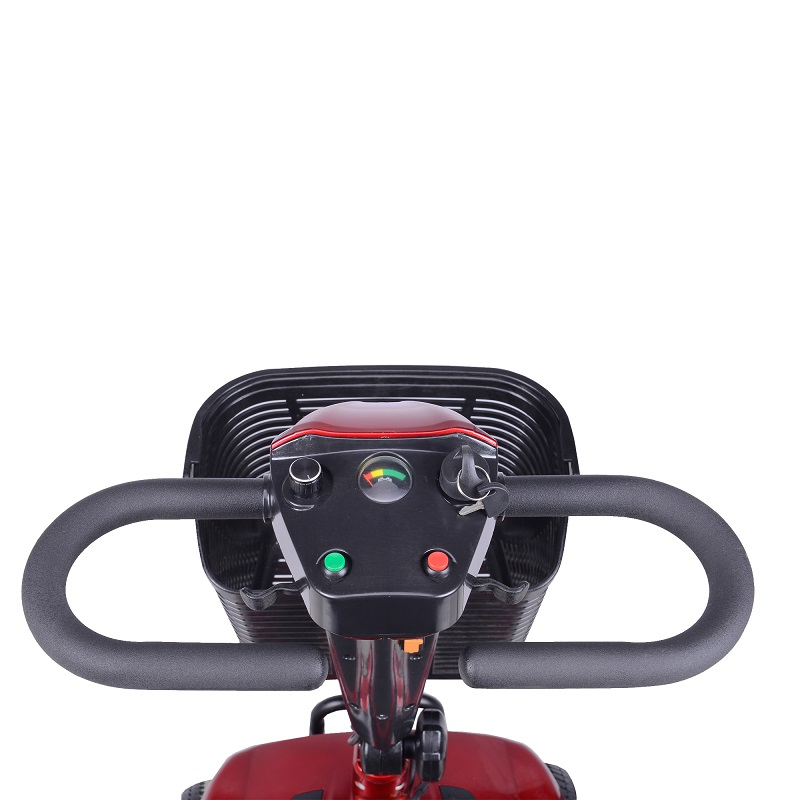

Controller Panel



1.8

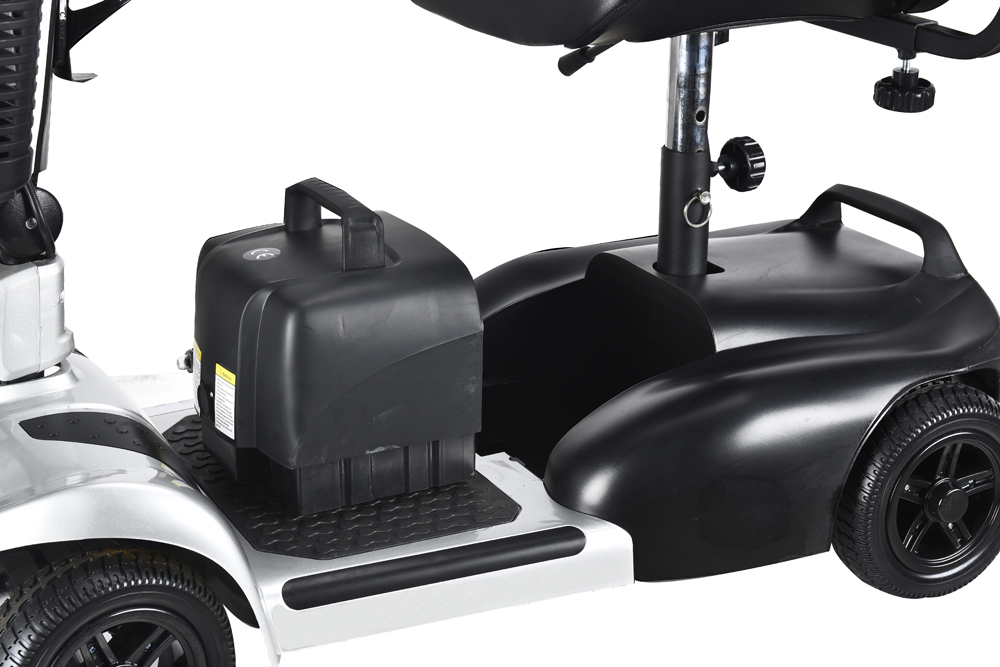

Removable battery
