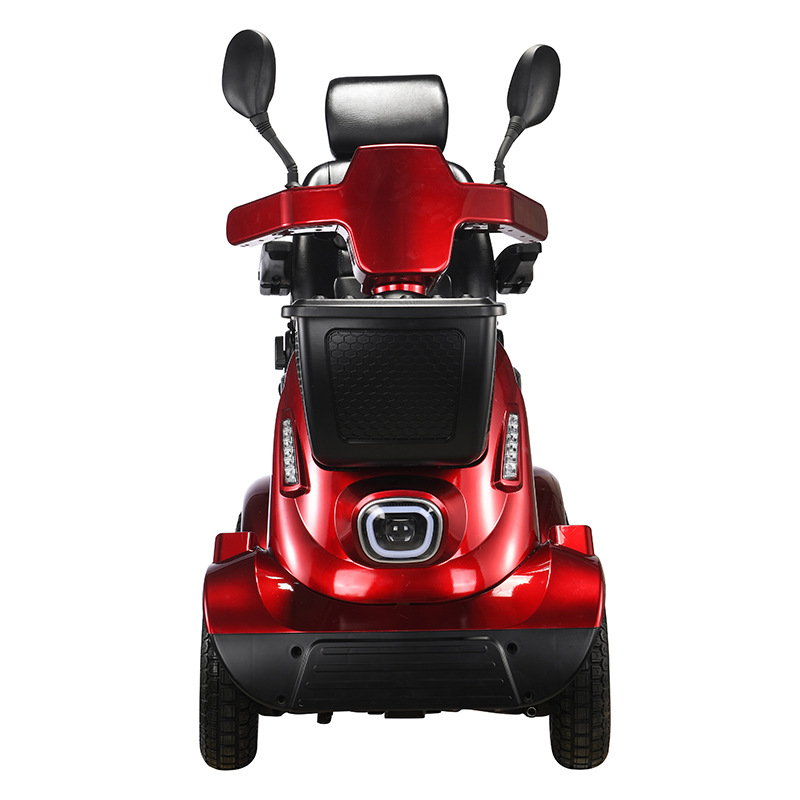

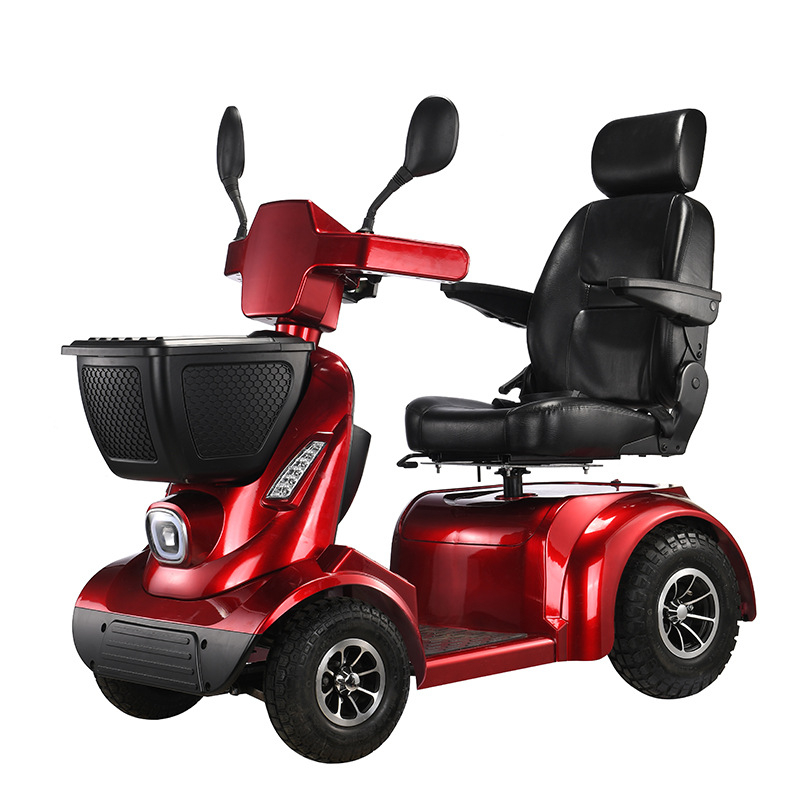

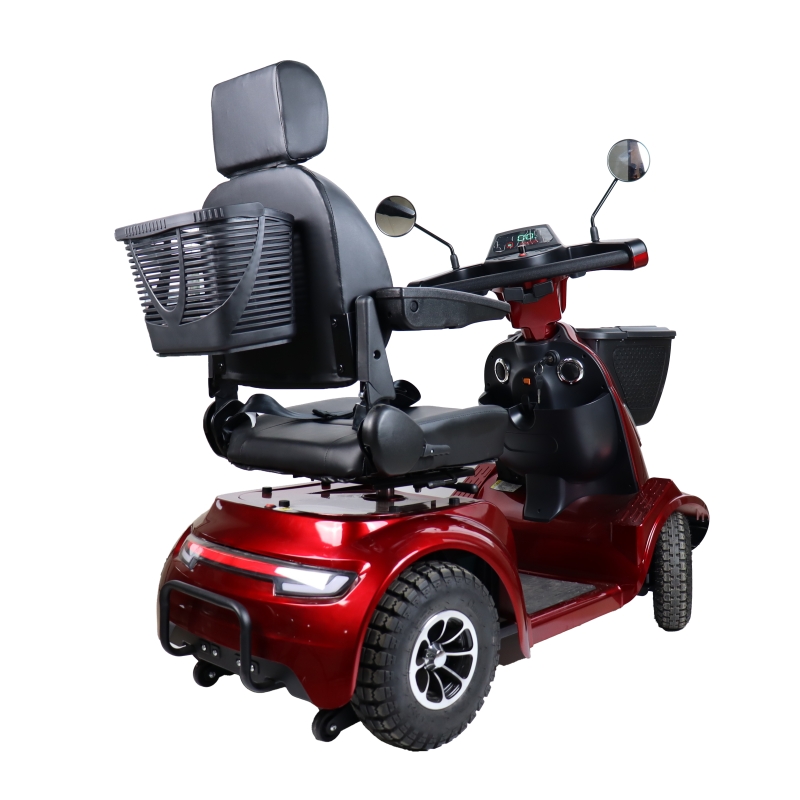

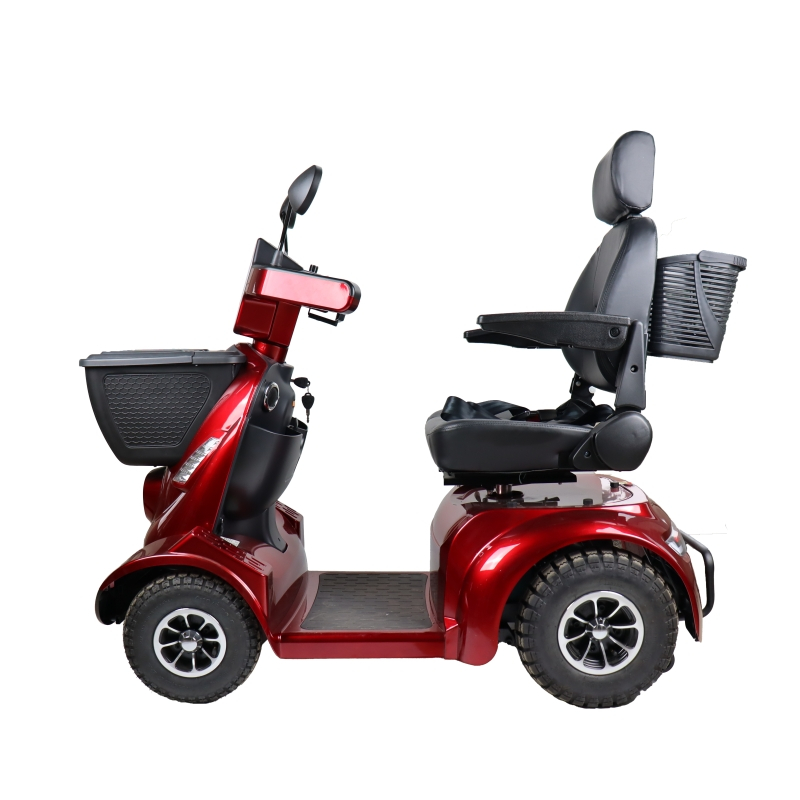

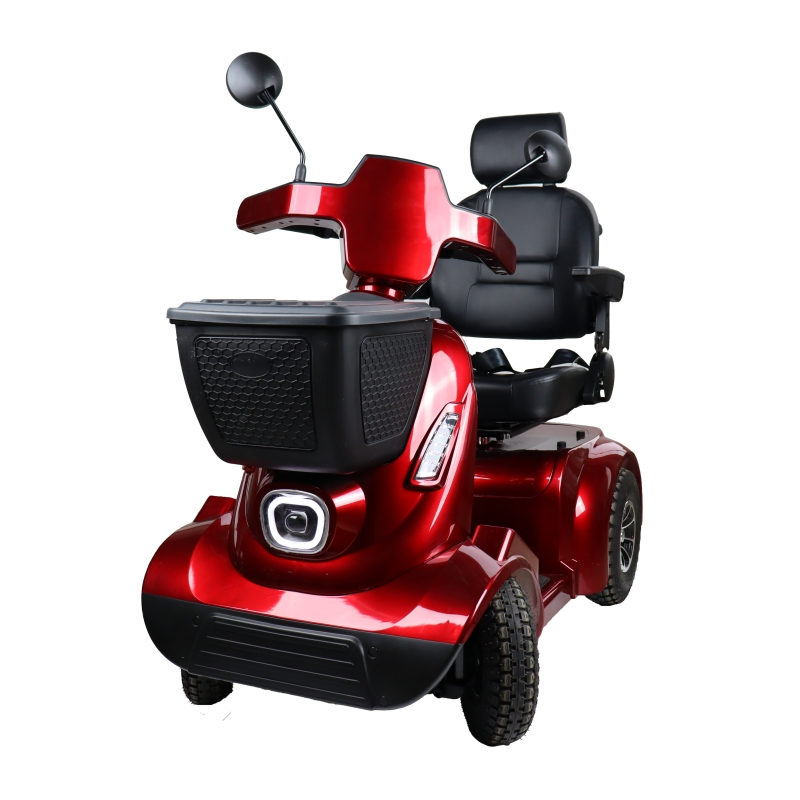

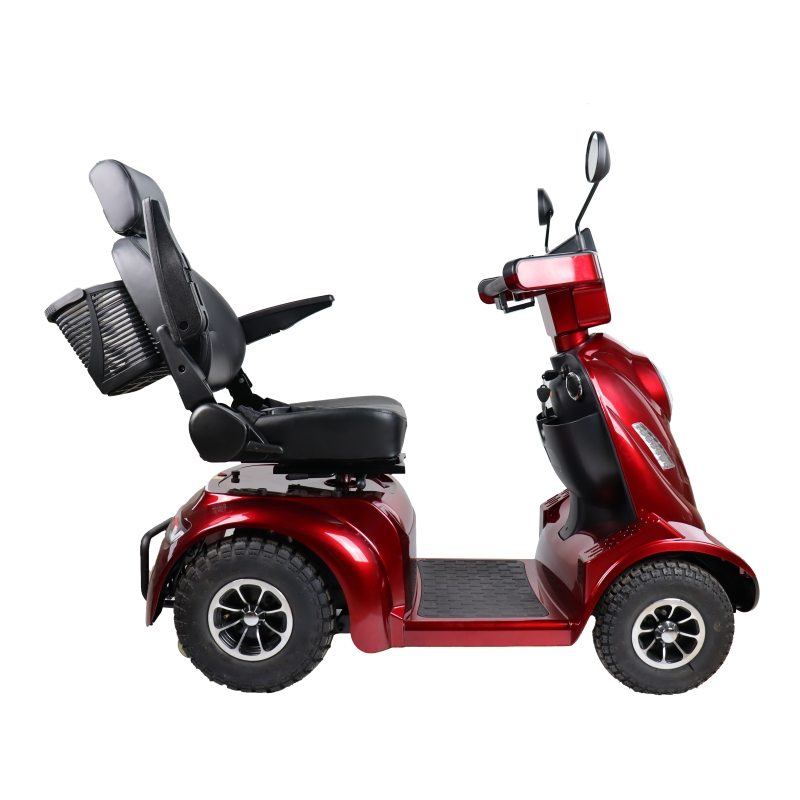

DB10
AiSoleij
DB10 electric mobility scooter parameter:
1.Seat foldable and removable, 360°rotation seat,adjustable seat distance.
2.Armrest can be lift.
3. Left and right turn signals and emergency double flash lights; LED front light.
4. Blue tooth loudspeaker box.
5.Quality front bumper and back bumper bar.
6. Anti-tip wheels for user's safe.
7.With blue-tooth player.
Model | DB10 |
Dimensions | 1390*655*1300mm |
motor | 24V 800W |
Controller | 24V 120A |
Lead-acid Battery | 24V 20AH *2( lead-acid ) |
max load capacity | 180kg |
Speed | 0-8km/h |
Ground Clearance | 110mm |
Front wheel: | Inflatable tire Φ 305*95mm （12 inch） |
Rear wheel | Inflatable tire Φ350*100mm (14 inch) |
Max Grade Ability | 12° |
Brake | Electromagnetic brake system |
Running distance | 35km |
Charger | DC24V 5A |
Net weight | 114kg |
Gross weight | 134kg |
Factory color | red,blue,silver |
Packaging size | 148*70*100cm |
Q'TY in container | 22pcs/20GP. 46pcs/40HQ |
